Control Modes
Built-in programs
• Auto Mode
• DMX-512 (3, 5, 6, 12, 24, 48CH)
One LED Light Bar (Built-in programs, Auto and Static Color Mode)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the LED Light Bar is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 13-14 for more information.
One LED Light Bar (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the LED Light Bar 16 will react to the
beat of the music. Please see page 13 for more information about the sound-control options.
Multiple LED Light Bars (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin XLR cable to connect the LED Light Bar 16.
02) Signal -
03) Signal +

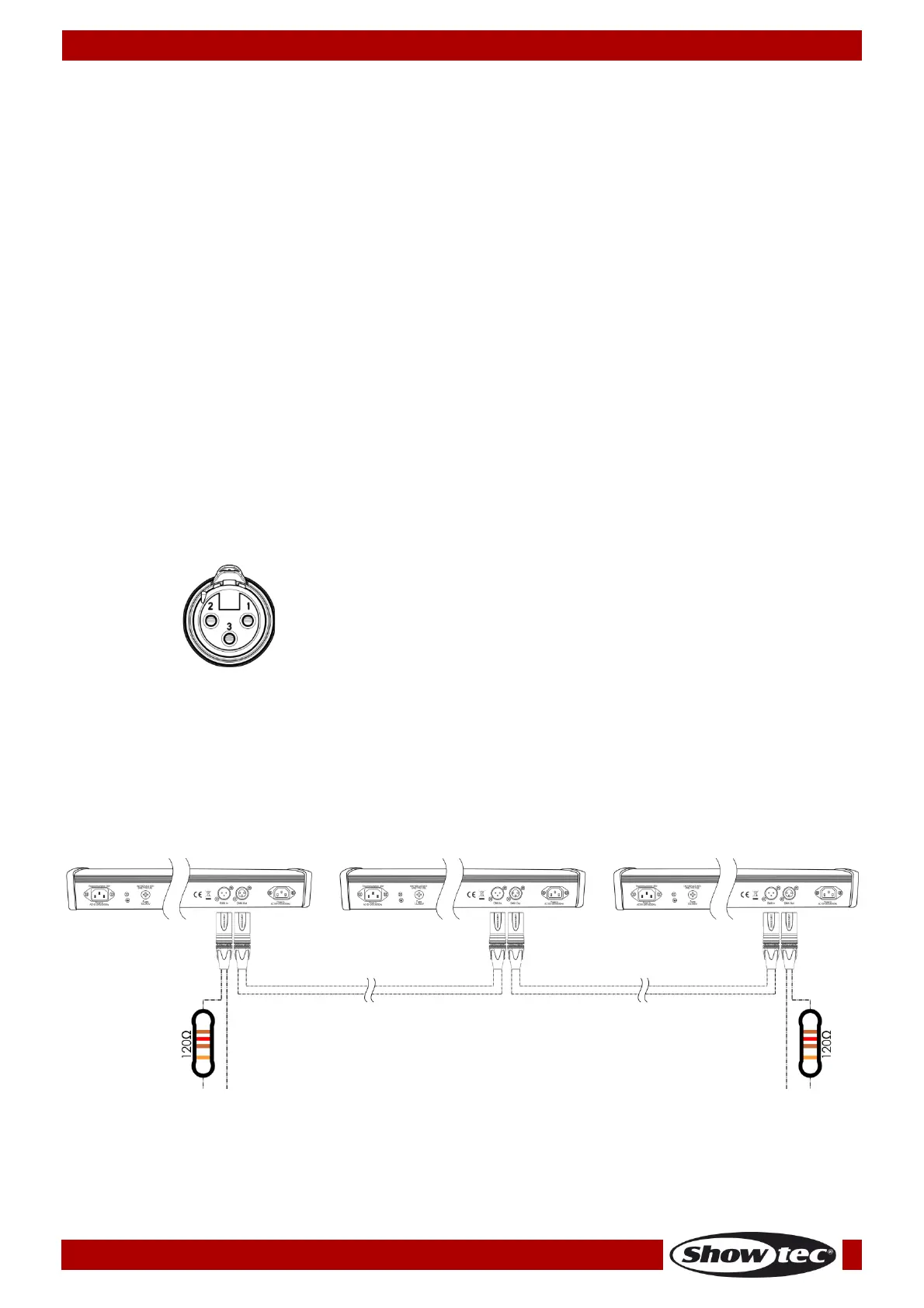

03) Link the units as shown in fig. 02. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on pages 13-14 (Built-in
programs, Auto Mode, Static Color Mode or Sound-controlled Mode). This means that you can set
your desired operation mode on the master device and all slave devices will react the same as the
master device.
Multiple LED Light Bars (Master/Slave control)
8
