Replacing a Gobo
Gobo-wheel with rotating gobo’s
1. Disconnect mains power supply and set the switch to OFF.

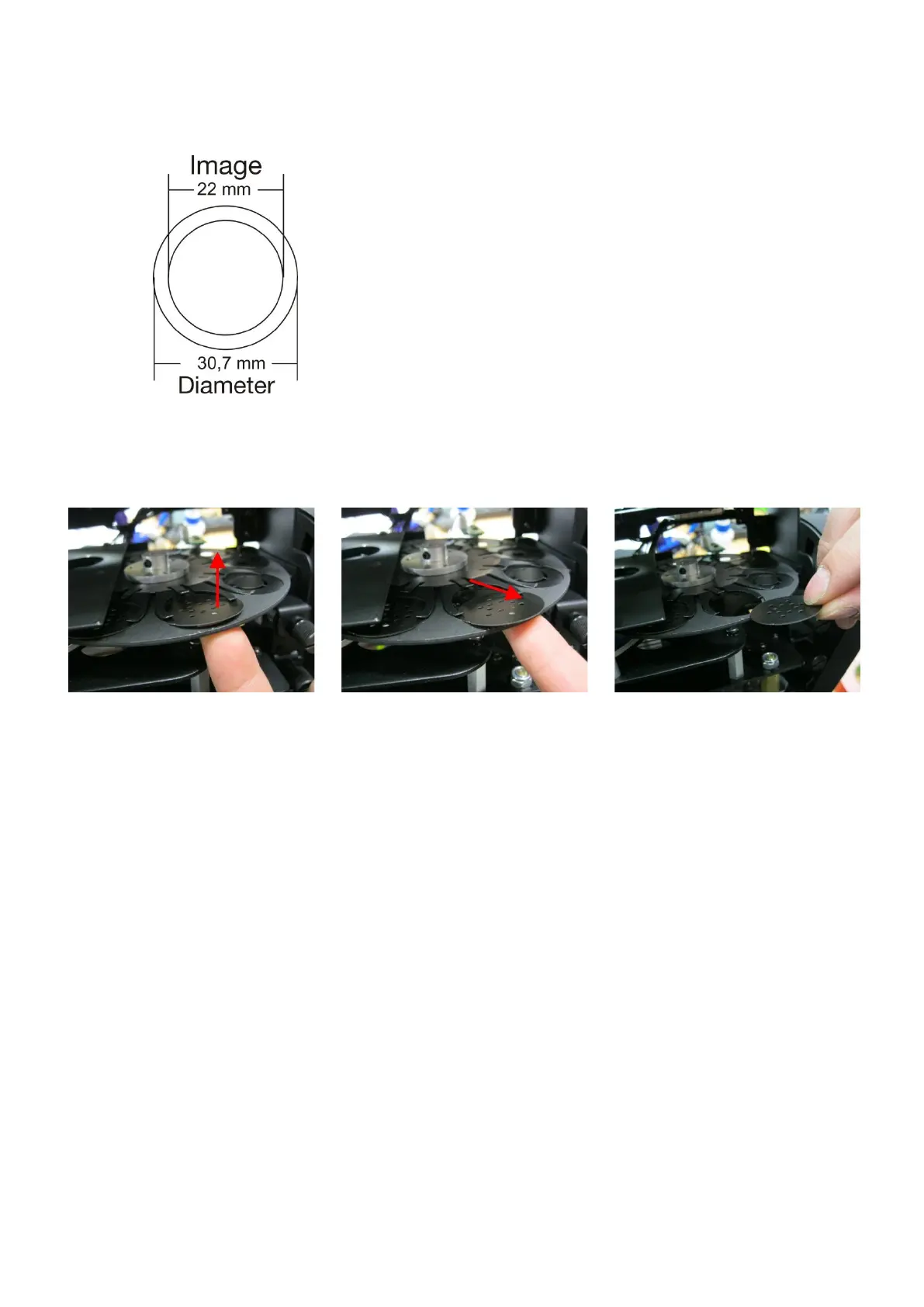

2. Make sure that the gobo you want to insert has the same size. For the right size, see below.
Fig. 7
3. Loosen the 4 screws on top of the housing. Remove the maintenance cap.
4. Turn the gobo wheel, with the gobo you want to remove, to the upside.
5. Gently lift up the gobo 10º and then gently pull out the gobo from its position.
6. Gently place the new gobo in its position with a pressing snap and push it back.
7. Replace the maintenance cap and fasten all screws.
Fig. 8
