Product Specification
Model: Showtec Phantom 300 Spot
Voltage: 240V-50Hz (CE)
Fuse: 6A / 250V

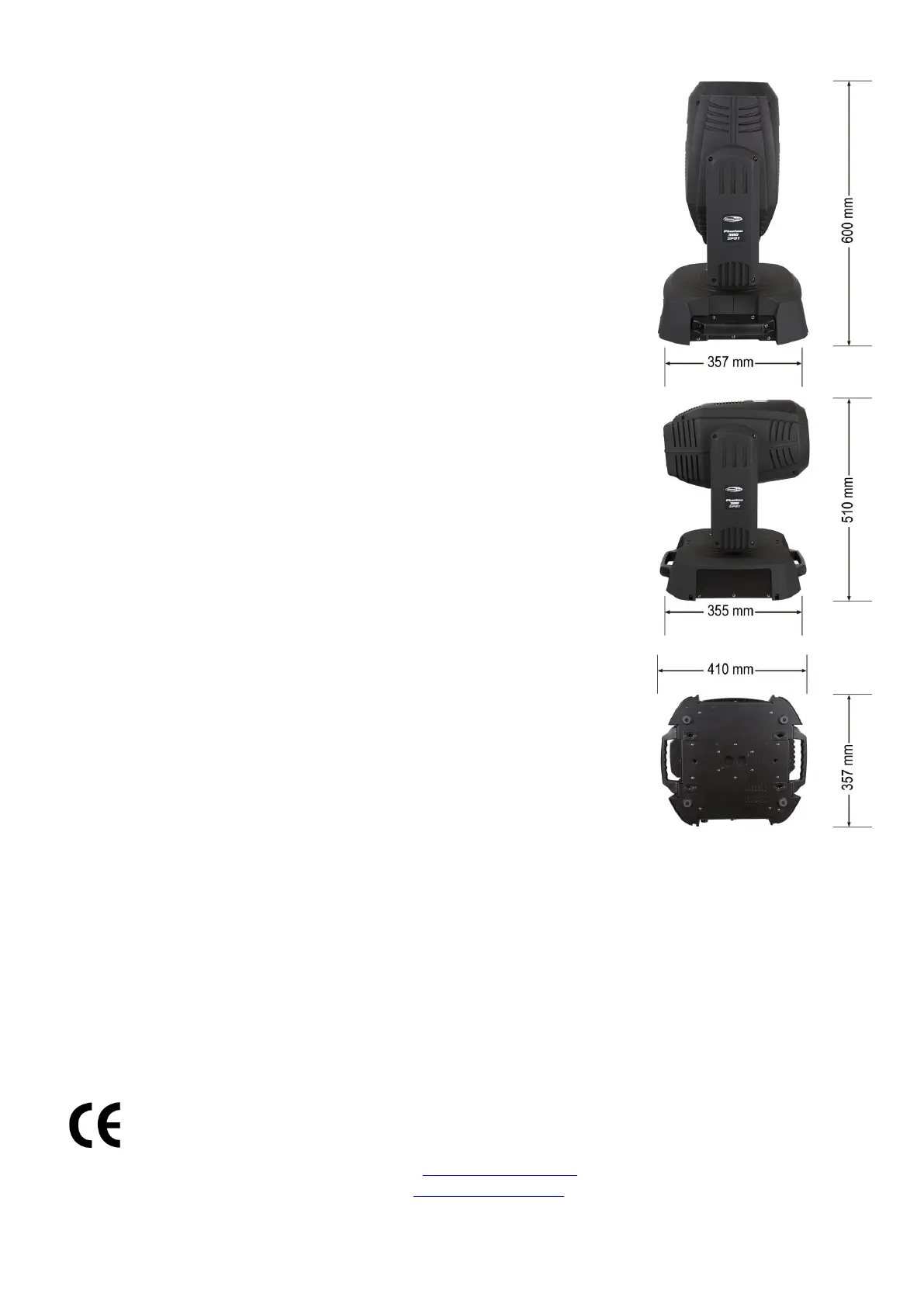

Dimensions: 410x357x660mm (LxWxH)
Weight: 26,12 kg
Operation and Programming
Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing: LED control panel
DMX Channels: 15 or 22
Signal input 3-pin + 5-pin XLR male
Signal output 3-pin + 5-pin XLR female
Lamp
Allowed lamp models*:
GE CSR-300 TAL/2 (7800k, 750hr) ordercode 80933
Philips MSR Gold 300/2 mini fast fit (8000K, 750h) ordercode 80851
Control: Automatic and DMX remote ON / OFF
Electro-mechanical effects
Automatic Pan/Tilt correction
Colorwheel 1: with 7 vivid colours, white and Rainbow-effect
Colorwheel 2: with 5 single filter, 2 color correction filters, white and Rainbow-effect
Gobo-wheel 1: 7 static gobo (with gobo shake), open and Rainbow-effect
Gobo-wheel 2: 7 rotating gobo (6 metal +1 glass), open and Rainbow-effect
Effect wheel: 3-face prism ( controllable rotating speed,
adjustable positive & negative)
Interchangeable Gobosystem
Gobo Shake Function
Bright LCD display
User selectable pan/tilt ranges
Lamp on/off via DMX
Mechanical Dimmer/Shutter/Strobe
Strobe-effect with adjustable speed (1 - 10 flashes/sec.)
Pan 0º -- 540º
Tilt 0º -- 270º
Gobos
Colourwheel: heat-resistant and intensify glass; dichroic glas coating
Max. ambient temperature t
a
: 40°C; Max. housing temperature t
B
: 80°C
Cooling: 5 axial fans - 4 fans in the projector and 1 in the base
1x Base-Fan : 80x80x25 12VDC 0.30A,
2x Fans : 80x80x25 12VDC 0.17A
2x Fans : 60x60x10 12VDC 0.17A
Motor: high quality stepping-motor controlled by microprocessors
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 1.3m
*: Versions for other lamps may be produced. Please check the specification label on your product.
Design and product specifications are subject to change without prior notice.
