Shure BLX Series Quick Start Guide

English
BLX

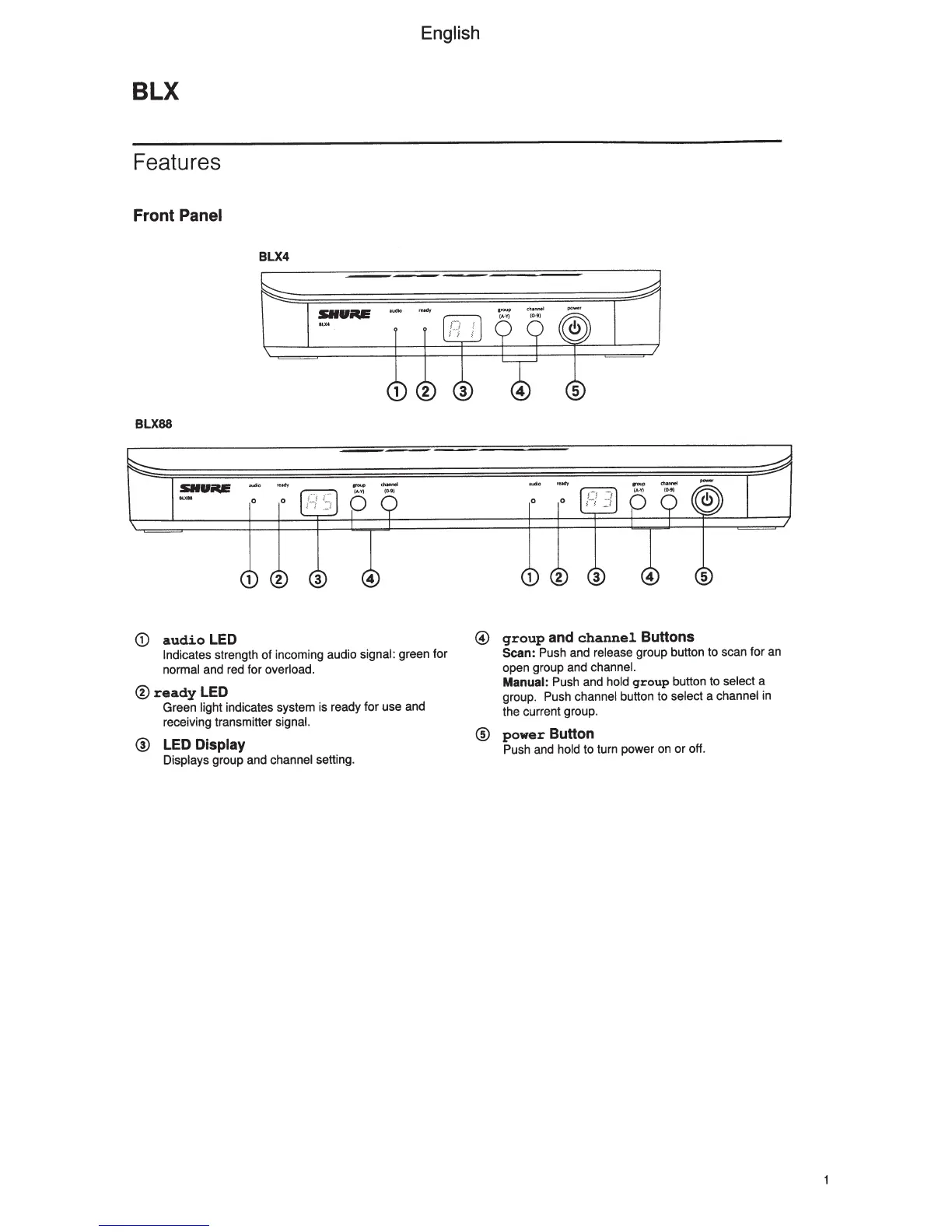

Features
Front Panel
BLX4
SIIViUE
reody
BLX88
0 0
2
CD
audio
LED
Indicates
strength of incoming audio
signal: green for
normal
and
red
for
overload.
®ready
LED
Green
light
indicates system is ready for use and
receiving transmitter
signal.
@
LED
Display
Displays
group and
channel
setting.
@
group
and
channel
Buttons
Scan: Push and release
group button to scan for an
open group and
channel.
Manual: Push and
hold
group
button to
select
a
group. Push
channel
button to
select
a channel
in
the current group.
®
power
Button
Push and
hold
to turn power
on
or off.

Shure BLX Series Specifications

General

Transmitter Type	Handheld, Bodypack
Frequency Response	50 Hz to 15 kHz
Operating Range	Up to 300 ft (91 m)
Transmitter Battery Life	Up to 14 hours
RF Output Power	10 mW
System Type	Wireless
Operating Frequency	Varies by region (512-542 MHz, 542-572 MHz, 572-602 MHz, 606-636 MHz, 662-692 MHz, 694-703 MHz, 740-752 MHz, 823-832 MHz, 863-865 MHz)
Receiver Output Connectors	XLR
Modulation	FM
Power Source	AA batteries (transmitter), DC power supply (receiver)
Dimensions (Transmitter)	Varies by model
Weight (Transmitter)	Varies by model
Dimensions (Receiver)	Varies by model
Weight (Receiver)	Varies by model
Audio Output Impedance	50 ohms
