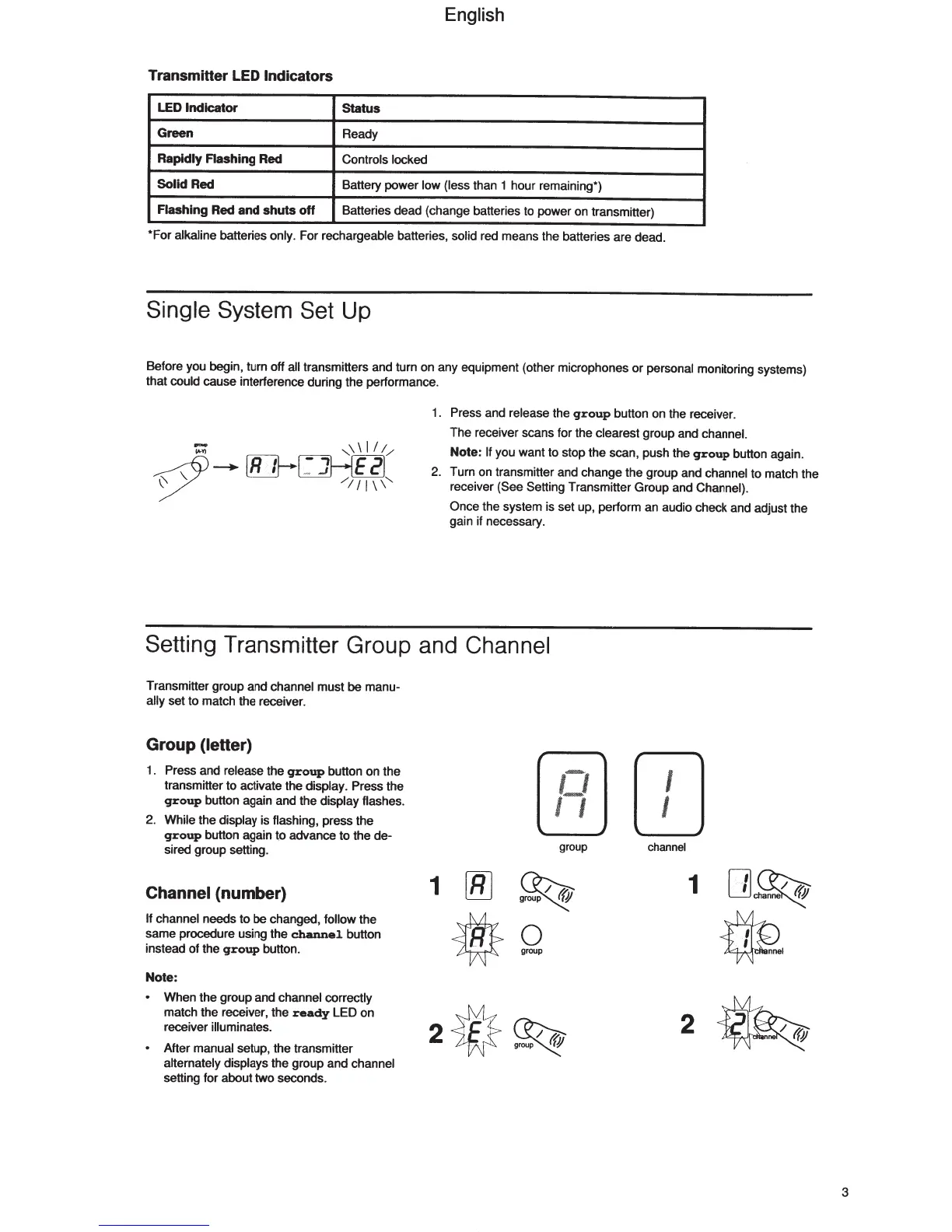

English
Transmitter LED Indicators
LED
Indicator
Status
Green
Ready
Rapidly Flashing Red
Controls
locked
Solid
Red
Battery power low (less than 1 hour remaining*)
Flashing Red
and
shuts
off
Batteries dead (change batteries to power on transmitter)
*For alkaline batteries only. For rechargeable batteries,
solid
red means the batteries are dead.
Single
System Set Up
Before you begin, turn off
all
transmitters and turn on any equipment (other microphones or personal monitoring systems)
that could cause interference during the performance.
1.
Press and release the
group
button on the receiver.
The receiver scans for the clearest group and channel.
Note:
If you want to stop the scan, push the
group
button again.
2.
Turn on transmitter and change the group and channel to match the
receiver (See Setting Transmitter Group and
Channel).
Once
the system is set up, perform an audio check and adjust the
gain if necessary.
Setting Transmitter Group and
Channel
Transmitter group and channel must be manu-
ally
set to match the receiver.
Group
(letter)
1 . Press and release the
group
button on the
transmitter to activate the display. Press the
group
button again and the display flashes.
2.
While the display is flashing, press the
group
button again to advance to the de-
sired group setting.
Channel
(number)
If
channel needs to be changed,
follow
the
same procedure using the
channel
button
instead of the
group
button.
Note:
When the group and channel correctly
match the receiver, the
ready
LED on
receiver
illuminates.
After manual setup, the transmitter
alternately displays the group and channel
setting for about two seconds.
1
[8]
*
2w
(
F1]
OJ
group channel
1
0
~
group
2
~
3
