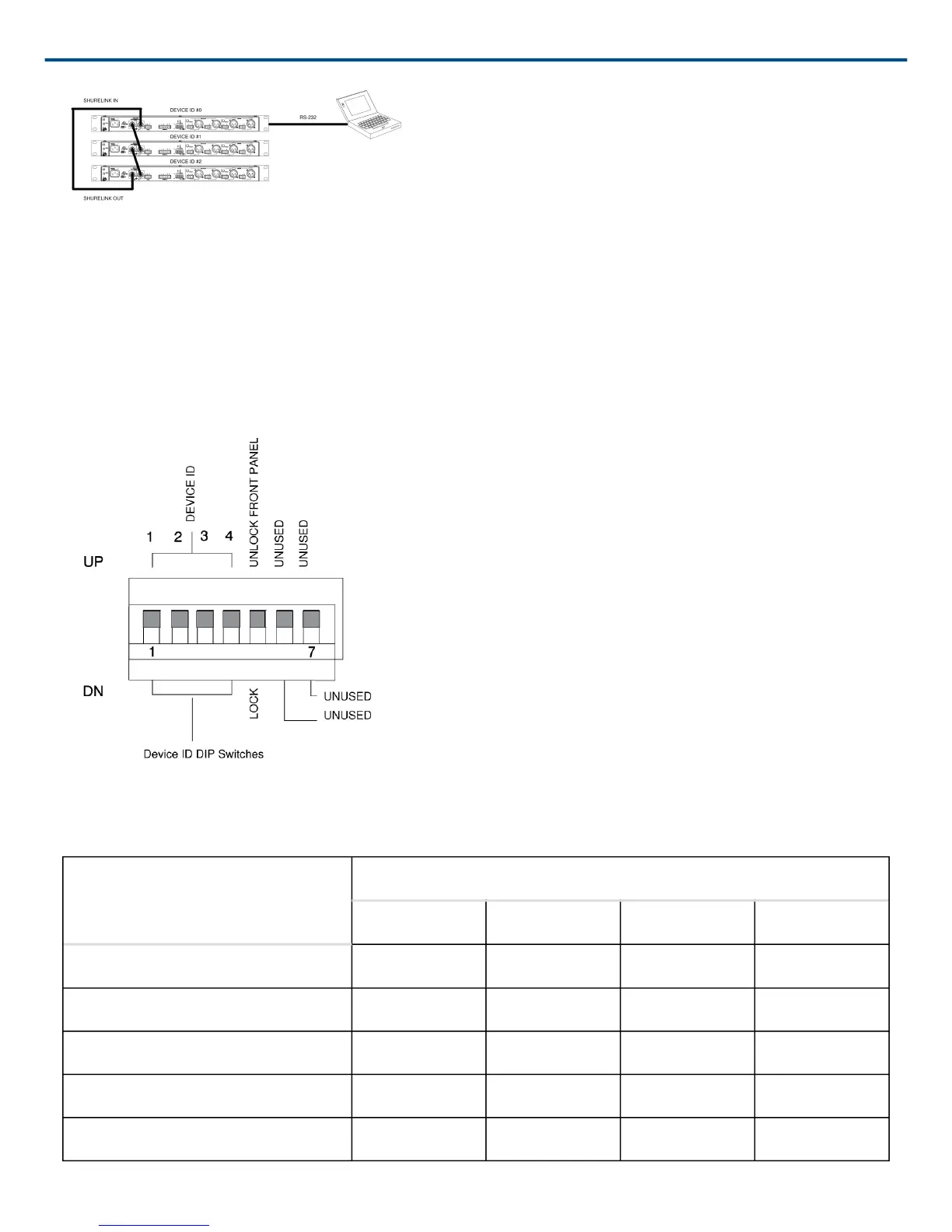

Figure 12: Shurelink Network Connections
DIP Switch Settings for Networked Devices
Assign each Shure Link device a unique Device ID Number, using DIP Switches 1-4, as shown in Figure 13. Refer
to Table 2 for Device ID settings.
Each Shure Link device MUST have a unique Device ID number.
Figure 13: DIP Switch Settings for Networked Devices
Device ID Settings
Device ID
DIP Switch
1 2 3 4
0
DN DN DN DN
1 UP DN DN DN
2 DN UP DN DN
3 UP UP DN DN
4 DN DN UP DN
