Wireless
10
RECEIVER CONNECTIONS (FIGURE 8)
1. Attach the supplied quarter-wave antenna(s) to the antenna connector(s) on the receiv-
er back panel. For best performance, the LX4 receiver antennas should be oriented
with the tips pointing away from each other at a 45° angle from vertical. The LX3 receiv-
er antenna should be vertical.
2. Connect the receiver output to the mixer or amplifier input, using a standard audio
cable with a female 3-pin XLR connector or
1
/
4
-inch phone plug.
3. Connect the ac adapter to the POWER jack on the rear panel of the receiver.
4. Plug the ac adapter into an appropriate ac power source.
LX3
LX3
AUDIO MIXER
AUDIO MIXER

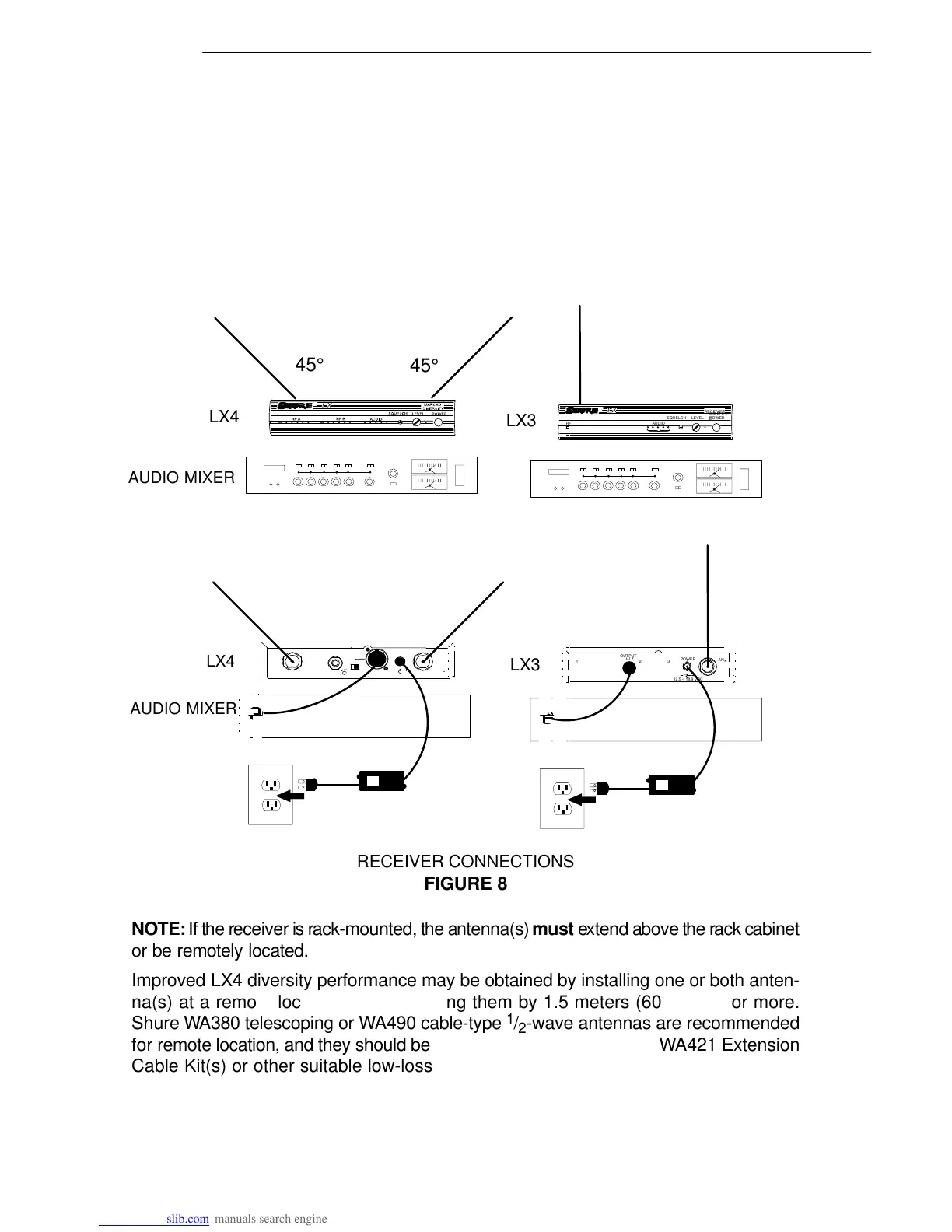

RECEIVER CONNECTIONS
FIGURE 8
NOTE: If the receiver is rack-mounted, the antenna(s) must extend above the rack cabinet
or be remotely located.
Improved LX4 diversity performance may be obtained by installing one or both anten-
na(s) at a remote location and separating them by 1.5 meters (60 inches) or more.
Shure WA380 telescoping or WA490 cable-type
1
/
2
-wave antennas are recommended
for remote location, and they should be connected to the receiver via WA421 Extension
Cable Kit(s) or other suitable low-loss cable.
