Shure Incorporated
36/100
•
•
•
•
•

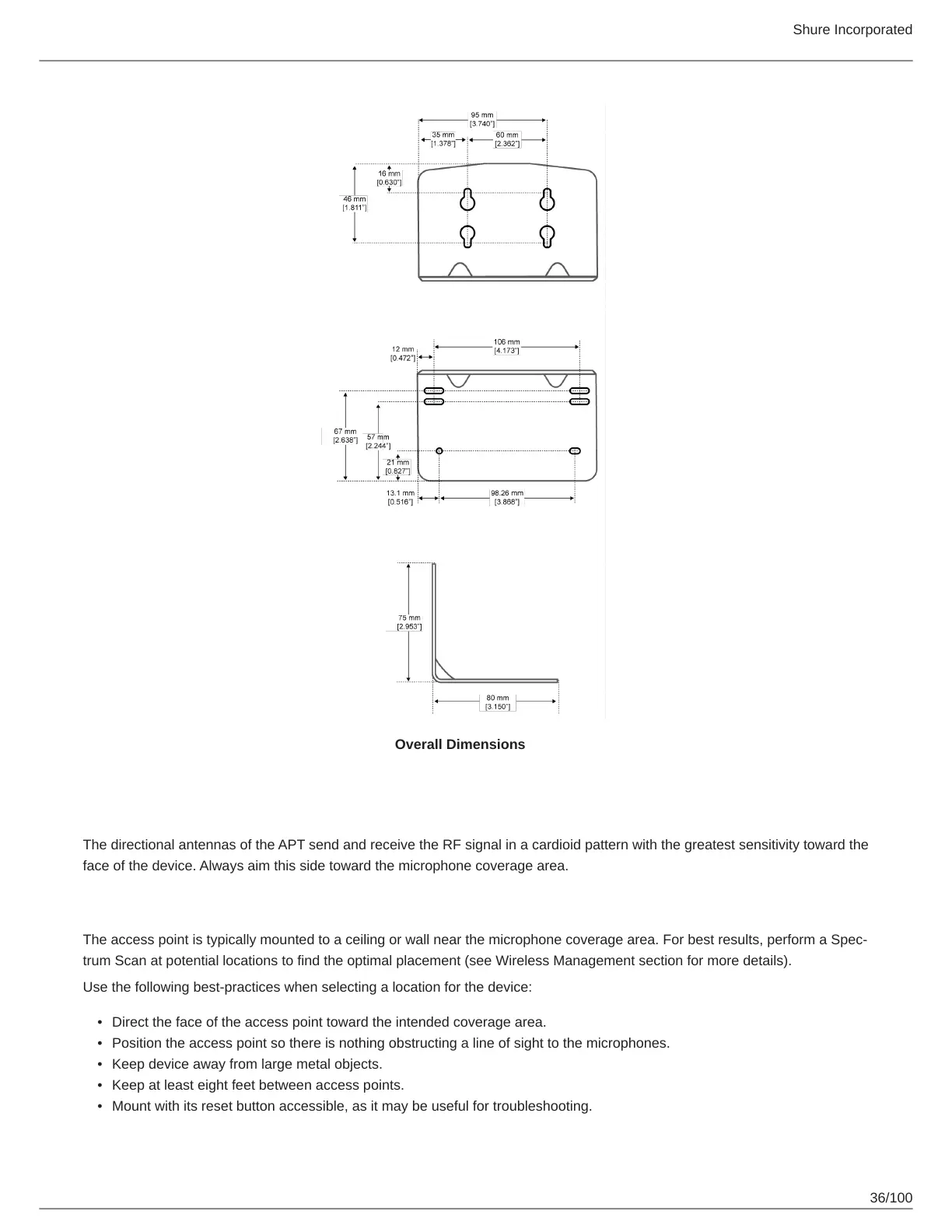

Overall Dimensions
Mount the Access Point Transceiver
The directional antennas of the APT send and receive the RF signal in a cardioid pattern with the greatest sensitivity toward the
face of the device. Always aim this side toward the microphone coverage area.
Select a Location
Theaccesspointistypicallymountedtoaceilingorwallnearthemicrophonecoveragearea.Forbestresults,performaSpec
trum Scan at potential locations to find the optimal placement (see Wireless Management section for more details).
Use the following best-practices when selecting a location for the device:
Direct the face of the access point toward the intended coverage area.
Position the access point so there is nothing obstructing a line of sight to the microphones.
Keep device away from large metal objects.
Keep at least eight feet between access points.
Mount with its reset button accessible, as it may be useful for troubleshooting.
