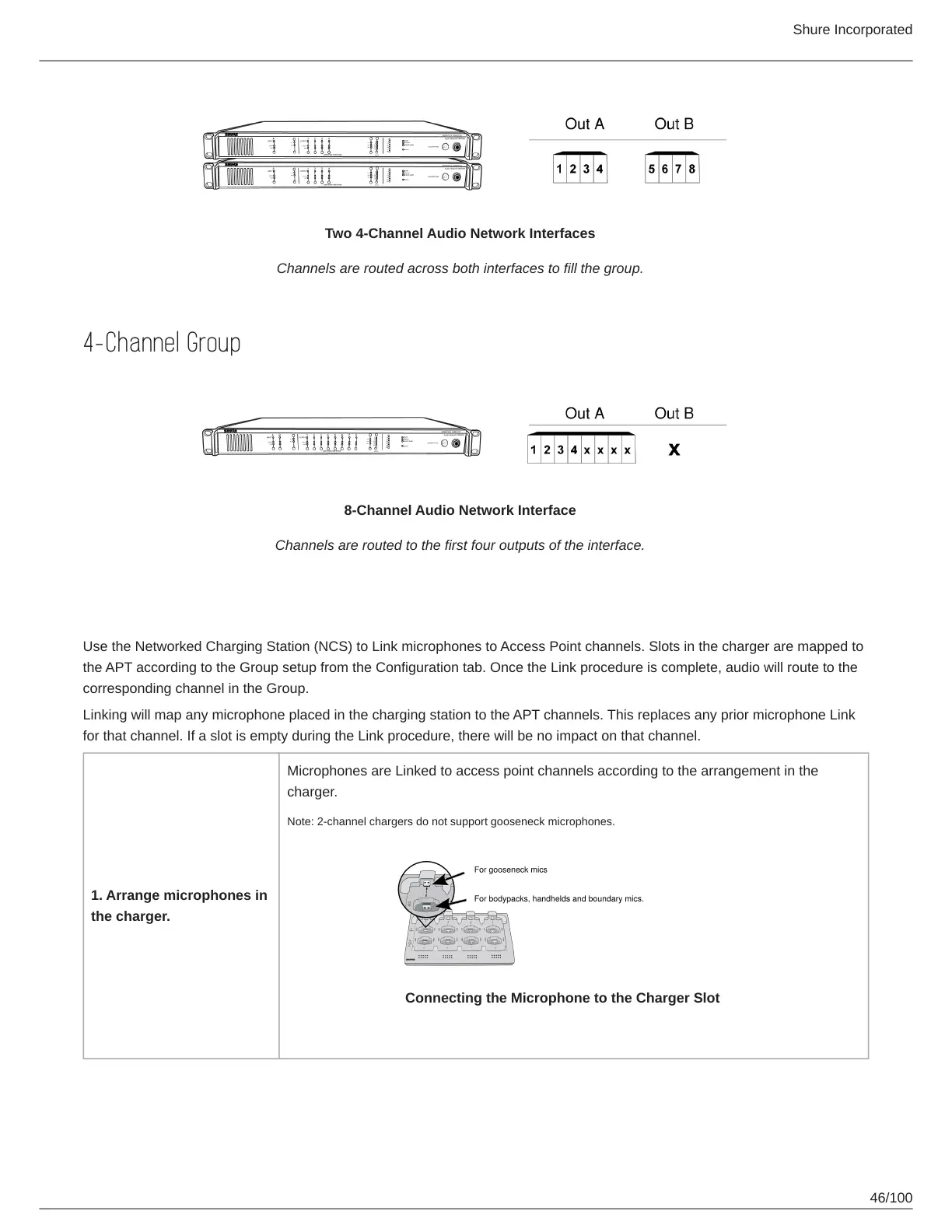

Two 4-Channel Audio Network Interfaces
Channels are routed across both interfaces to fill the group.
4-Channel Group
8-Channel Audio Network Interface
Channels are routed to the first four outputs of the interface.
Link Microphones to Group Channels
Use the Networked Charging Station (NCS) to Link microphones to Access Point channels. Slots in the charger are mapped to
the APT according to the Group setup from the Configuration tab. Once the Link procedure is complete, audio will route to the
corresponding channel in the Group.
Linking will map any microphone placed in the charging station to the APT channels. This replaces any prior microphone Link
for that channel. If a slot is empty during the Link procedure, there will be no impact on that channel.
1. Arrange microphones in
the charger.
Microphones are Linked to access point channels according to the arrangement in the
charger.
Note: 2-channel chargers do not support gooseneck microphones.
Connecting the Microphone to the Charger Slot
