Shure Microflex MXWNCS8 Manual

Shure Incorporated
42/100
•
•
•
•

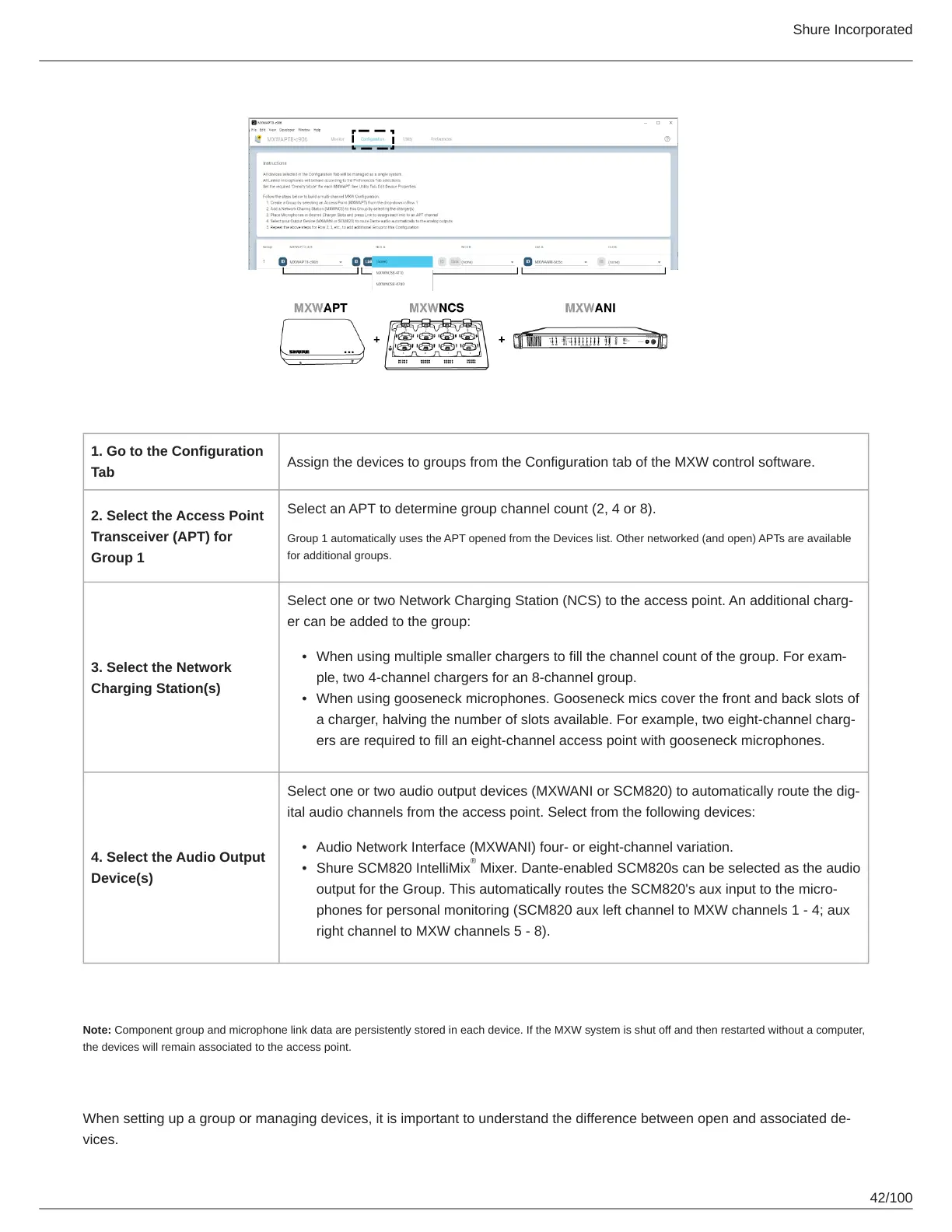

1. Go to the Configuration
Tab
Assign the devices to groups from the Configuration tab of the MXW control software.
2. Select the Access Point
Transceiver (APT) for
Group 1
Select an APT to determine group channel count (2, 4 or 8).
Group 1 automatically uses the APT opened from the Devices list. Other networked (and open) APTs are available
for additional groups.
3. Select the Network
Charging Station(s)
SelectoneortwoNetworkChargingStation(NCS)totheaccesspoint.Anadditionalcharg
er can be added to the group:
Whenusingmultiplesmallerchargerstofillthechannelcountofthegroup.Forexam
ple, two 4-channel chargers for an 8-channel group.
When using gooseneck microphones. Gooseneck mics cover the front and back slots of
acharger,halvingthenumberofslotsavailable.Forexample,twoeightchannelcharg
ers are required to fill an eight-channel access point with gooseneck microphones.
4. Select the Audio Output
Device(s)
Selectoneortwoaudiooutputdevices(MXWANIorSCM820)toautomaticallyroutethedig
ital audio channels from the access point. Select from the following devices:
Audio Network Interface (MXWANI) four- or eight-channel variation.
Shure SCM820 IntelliMix Mixer. Dante-enabled SCM820s can be selected as the audio
outputfortheGroup.ThisautomaticallyroutestheSCM820'sauxinputtothemicro
phones for personal monitoring (SCM820 aux left channel to MXW channels 1 - 4; aux
right channel to MXW channels 5 - 8).
Note: Component group and microphone link data are persistently stored in each device. If the MXW system is shut off and then restarted without a computer,
the devices will remain associated to the access point.
Device Availability
Whensettingupagroupormanagingdevices,itisimportanttounderstandthedifferencebetweenopenandassociatedde
vices.
®
