Utility Settings
Channel Name
Util > Channel Name
Turn control wheel to change channel name. You can set a different name for each channel
on the device (this name is uploaded to the bodypack with sync).
Display Settings

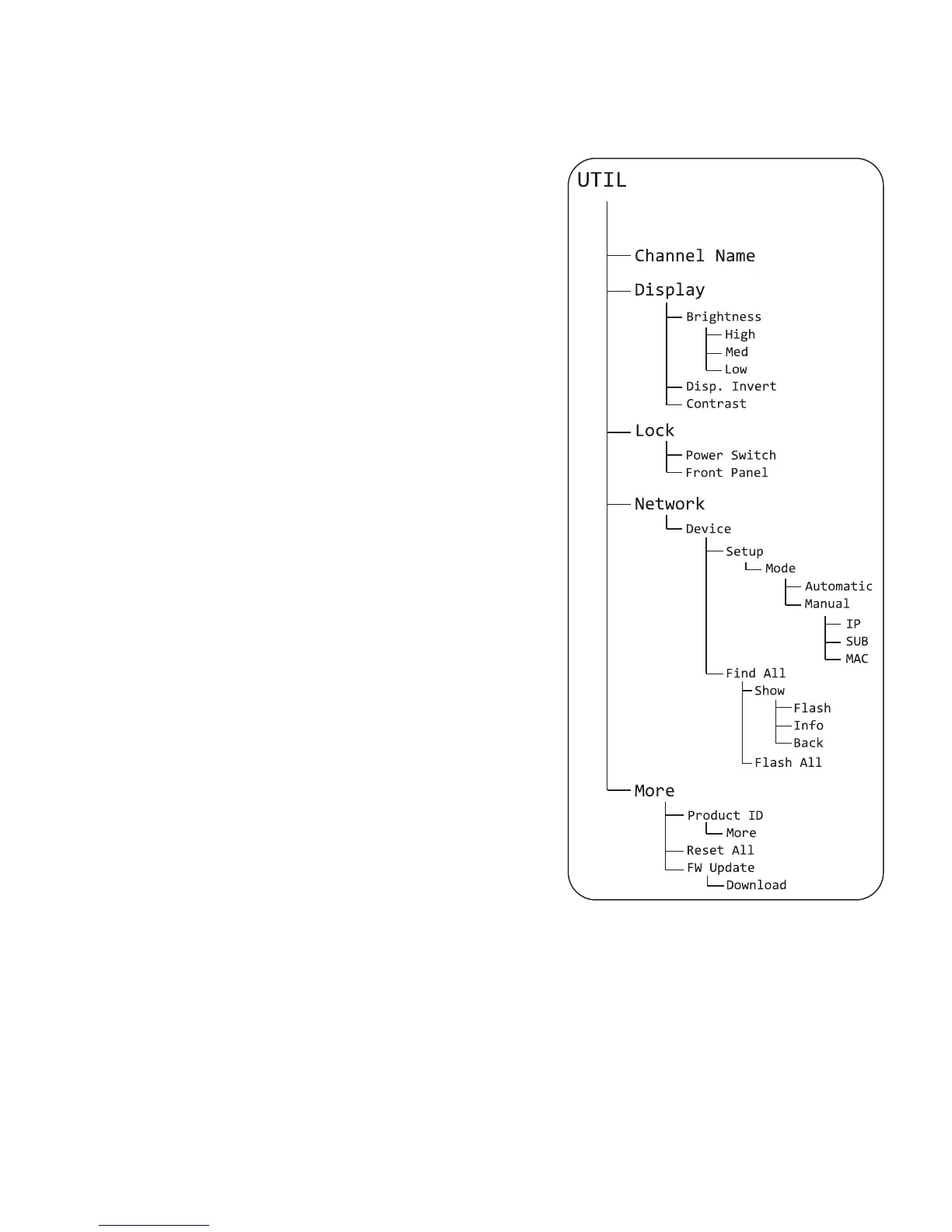

Util > Display
Change the look of the LCD panel from the display menu.
Brightness: Sets display brightness to high, low, or medium.
Disp. Invert: Changes display from light on dark to dark on light.
Contrast: Use the control wheel to adjust contrast.
Interface Locks
Use these controls to lock or unlock power switch and front panel controls.
Power Switch
Util > Lock > Power Switch
Locked: Locks power switch.
Off: Unlocks power switch.
Front Panel
Util > Lock > Front Panel
Locked: Locks the controls on the front panel for the selected transmitter.
Off: The front panel is unlocked.
Unlocking Front Panel
To unlock the front panel, select Util > Unlock
Network Setup
Use this menu to find, display and change how this device connects to the network. There is
one set of network settings for both transmitters.
Device Identification (Device)
Allows you to assign a display name. This applies to both channels on the device. To name
each channel individually, use the Channel Name setting.
Setup (Mode)
Automatic: Default setting for use with DHCP networks.
Manual: Manual IP addressing. Allows you to enter an IP address (IP) and subnet mask
(SUB).
MAC: Displays MAC address for this device, view only, and there is only one MAC address
for both transmitters.
Reset: Manual mode only. Resets network settings to the factory defaults.
Find All Network Devices (Find All)
Lists all network devices.
• Scroll to any of the listed devices and press Show Info to view information about that
device.
• Press Flash to flash the LEDS of all devices on network
• Press Back to return to previous screen
Additional Settings (More)
Product ID: Displays product serial number.
Reset All: Restores the values on all networked devices to factory default settings.
FW Update: Displays the receiver firmware version that is currently stored in the transmitter.
Press Download to transfer the update to a receiver through the IR port.
