Shure PSM1000 User Guide

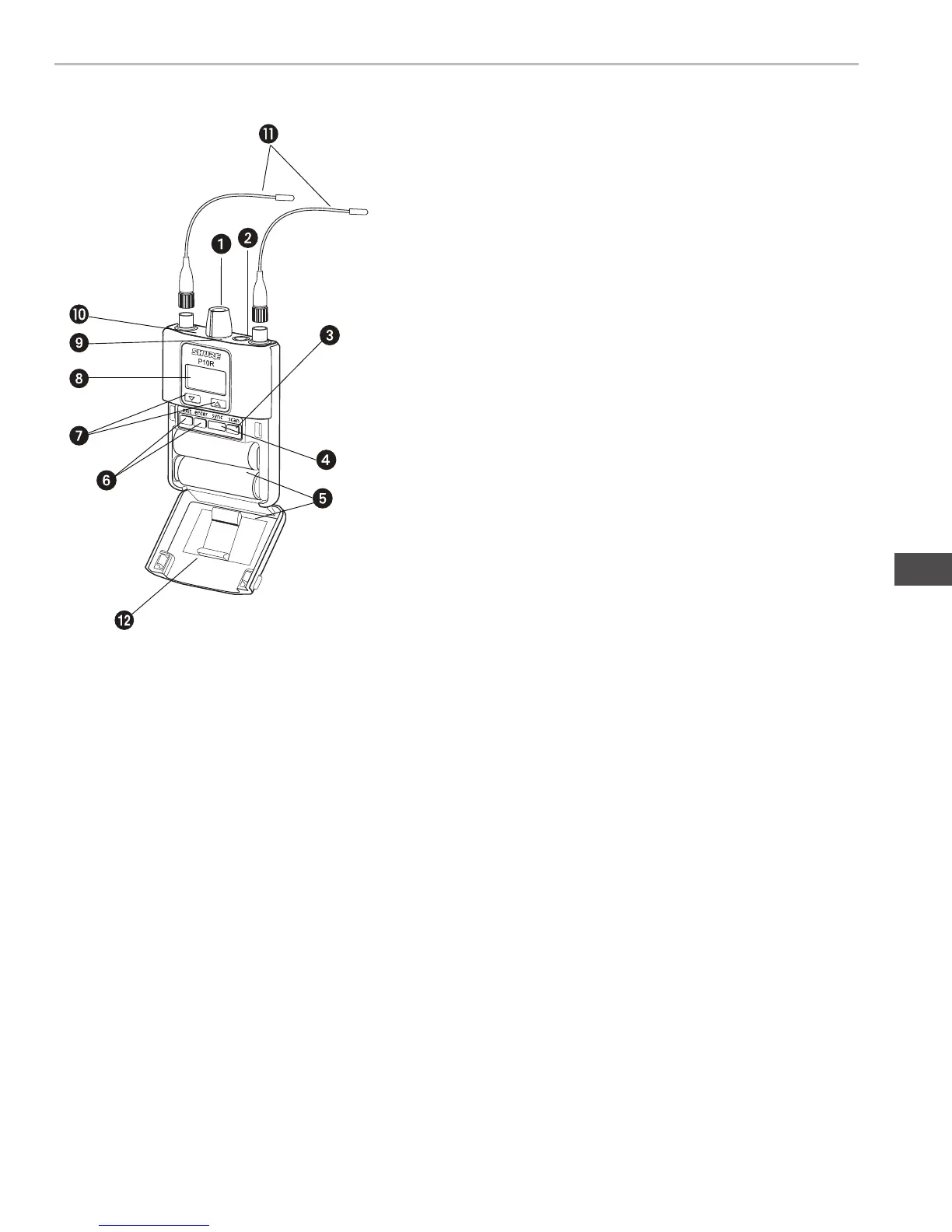

Bodypack Receiver
① Power Switch and Volume Control
Turns the bodypack on and off and adjusts earphone volume.
② 3.5 mm Earphone Jack
Insert earphones here.
③ Scan Button
Press the scan button to find an available frequency. Press and hold for two seconds to find
the group with the most available channels.
④ IR Window
For transmitting settings between bodypack and rack unit.
⑤ Battery Compartment
Requires 2 AA batteries or Shure rechargeable battery. Open by pressing the latches on both
sides and pulling.
⑥ Menu buttons
Useinconjunctionwiththe▼▲buttonstoaccesstheconfigurationmenus.
⑦ ▼▲ Buttons
Use to adjust the audio mix (in MixMode only), or in conjunction with the menu buttons to
change settings.
⑧ LCD Screen
Displays current settings and menus.
⑨ Tri-Color Battery LED
Illuminates green, amber, or red to indicate battery power. When red, change battery im-
mediately.
⑩ Blue RF LED
Indicates the bodypack is receiving a signal from the transmitter.
⑪ SMA Connector
For detachable antennas.
⑫ Removable AA Adapter
Remove to use with a Shure SB900 rechargeable battery.
Note: To remove adapter, open door and slide out. To reinstall adapter, place over the clip
and press, there will be an audible click when seated.
RF Settings
Access the following RF settings from the RADIO menu.
G: Group number. Each group contains channels selected to work well together in
a single installation.
CH: Channel number. Sets the receiver to a channel in the selected group.
888.888 MHz: Displays the frequency to which the transmitter is set. Highlight and
usethe▼▲buttonstosetthetransmittertoaspecificfrequency.
SQUELCH: Adjusts the squelch setting.
FULL SCAN: Performs spectrum scan and displays open frequencies in a graphical
interface.
RF PAD: Attenuates antenna signals in 3 dB increments.
Audio Settings
Access the following audio settings from the Audio menu.
Output Mode (MODE)
STEREO: Stereo
MIXMODE: MixMode
High-Frequency EQ Boost (HIBOOST)
OFF: No boost (flat).
4 dB: 4 dB boost at 10 kHz.
2 dB: 2 dB boost at 10 kHz.
Volume Limiter (V LIMIT)
V LIMIT: Turns limiter on (ON) or off (OFF) .
VALUE: 3 to 9: analogous to volume knob position (for example, 5 is equal to the
5th dot on the volume knob).
Output Gain (GAIN)
HIGH: Increases gain by 10 dB
STANDARD(STD): 0 dB of gain.
Utilities and Display Settings
Access the following settings from the UTILITIES menu.
CUEMODE: Enters CUEMODE to exit, press enter and select EXIT CUEMODE
DISPLAY: Change the display settings on the bodypack
CONTRAST: Sets display brightness to high, low, or medium.
LOCK PANEL: Locks all controls except power and volume.To unlock, press exit,
select OFF, and press enter.
BATTERY: When using an SB900 - Shure rechargeable battery, the following
information is displayed: Hrs: Min Left, temperature, Status, Cycle Count, and
Health.
RESTORE: Returns receiver to factory default settings.
7

Shure PSM1000 Specifications

General

Frequency Range	470–952 MHz (country dependent)
Operating Range	100 m (328 ft) (Typical)
Audio Input	XLR
Network Interface	Ethernet
Receiver Audio Output	XLR, 1/4" (6.3 mm) balanced/unbalanced
Receiver Battery Type	AA
Power Supply	100 to 240 V AC, 50-60 Hz
Weight	Varies by model (refer to specific model documentation)
