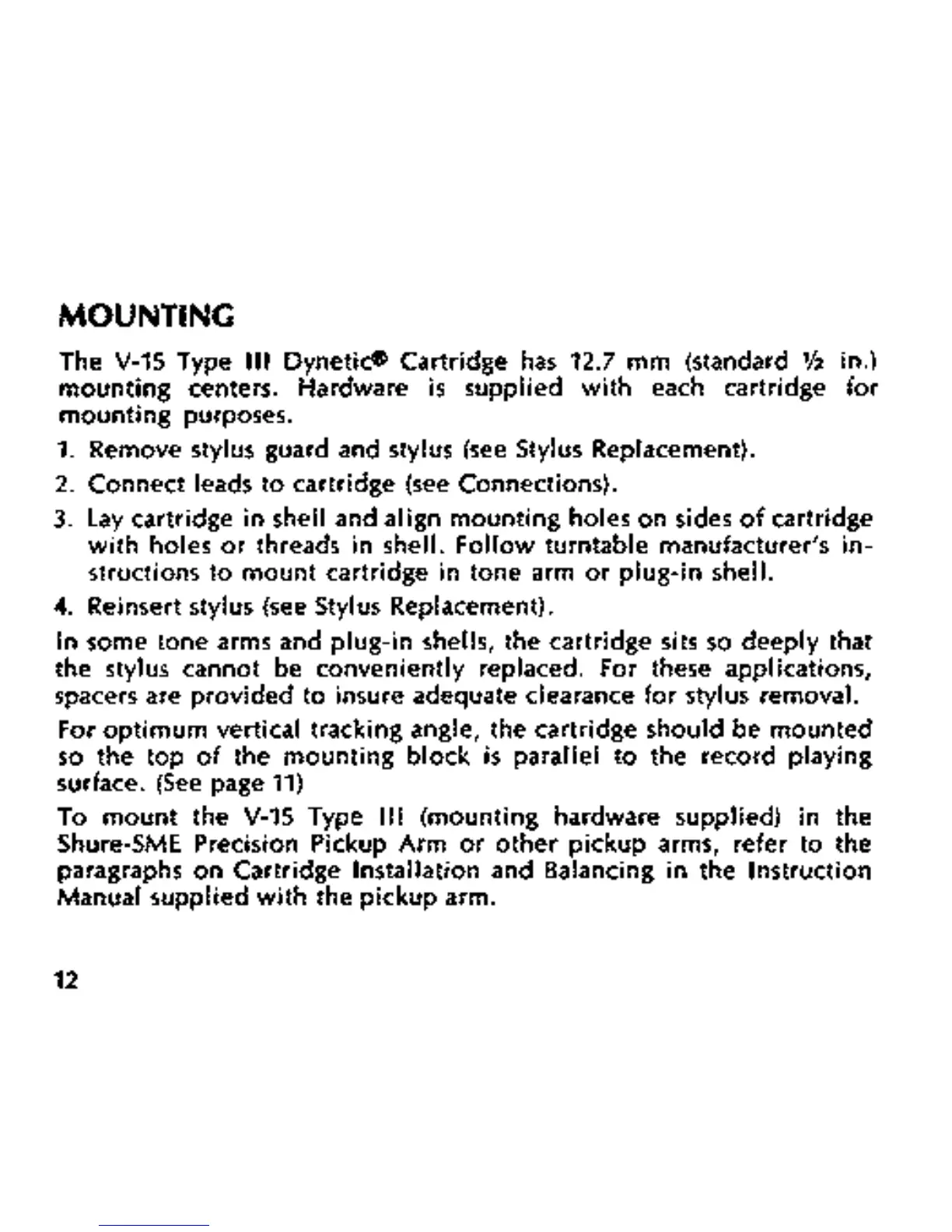

MOUNTING
The
V-15
Type
Ill
Dyneti@ Cartridge has
12.7
mm (standard
%
in.)
mounting centers. Hardware is supplied with each cartridge for
mounting purposes.
1.
Remove stylus guard and stylus (see Stylus Replacement).
2.
Connect leads to cartridge (see Connections).
3.
Lay cartridge in shell and align mounting holes on sides of cartridge
with holes or threads in shell. Follow turntable manufacturer's in-
structions to mount cartridge in tone arm or plug-in shell.
4.
Reinsert stylus (see Stylus Replacement).
In some tone arms and plug-in shells, the cartridge sits so deeply that
the stylus cannot be conveniently replaced. For these applications,
spacers are provided to insure adequate clearance for stylus removal.
For optimum vertical tracking angle, the cartridge should be mounted
so the top of the mounting block is parallel to the record playing
surface. (See page
11)
To mount the
V-15
Type
Ill
(mounting hardware supplied) in the
Shure-SME Precision Pickup Arm or other pickup arms, refer to the
paragraphs on Cartridge Installation and Balancing in the Instruction
Manual supplied with the pickup arm.
