Shure V-15 Type III User Manual

STYLUS
REPLACEMENT

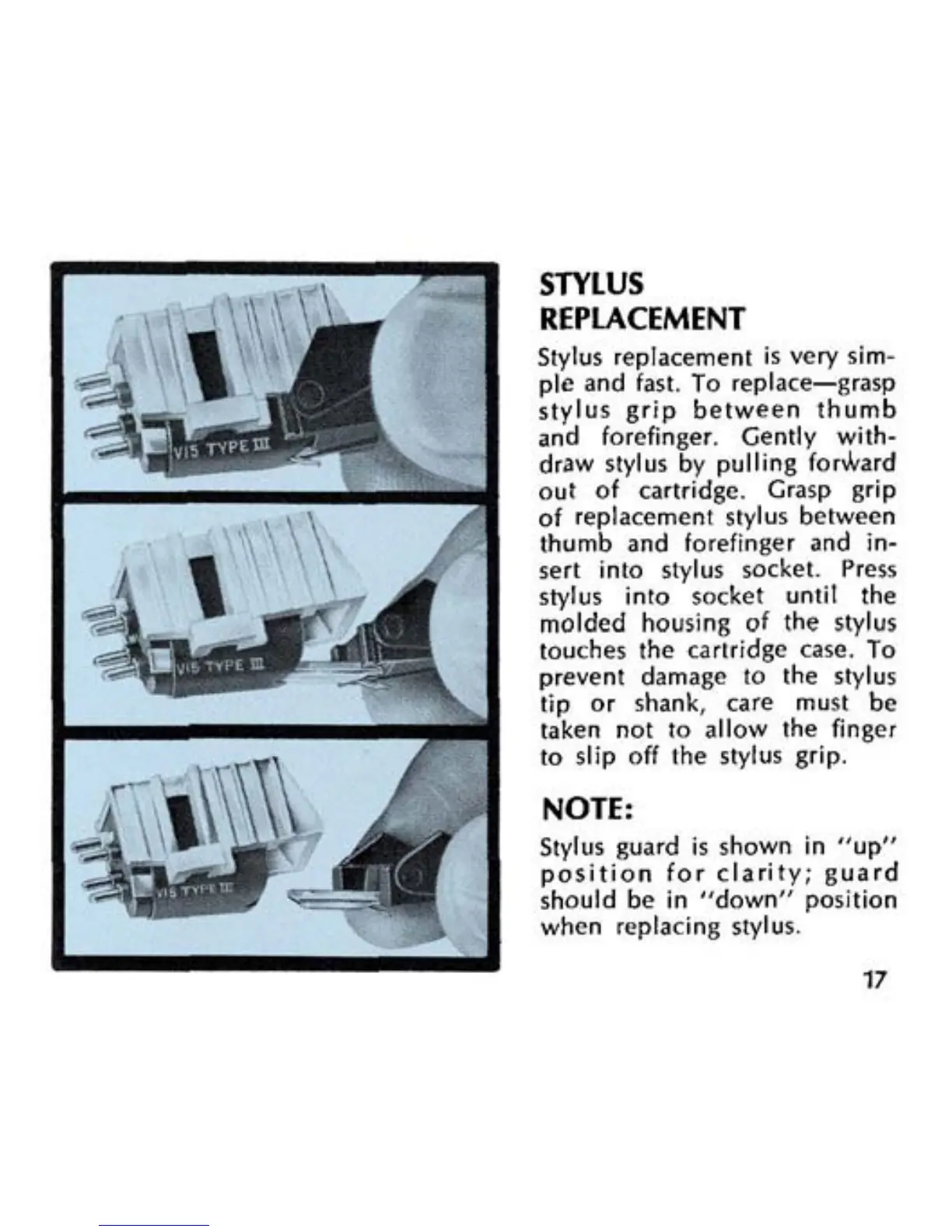

Stylus replacement is very sim-
ple and fast. To replace-grasp
stylus grip between thumb
and forefinger. Gently with-
draw stylus by pulling
forkard
out of cartridge. Grasp grip
of replacement stylus between
thumb and forefinger and in-
sert into stylus socket. Press
stylus into socket until the
molded housing of the stylus
touches the cartridge case. To
prevent damage to the stylus
tip or shank, care must be
taken not to allow the finger
to slip off the stylus grip.
NOTE:
Stylus guard is shown in "up"
position for clarity; guard
should be in "down" position
when replacing stylus.
17

Shure V-15 Type III Specifications

General

Type	Phono Cartridge
Category	Accessories
Frequency Response	20 Hz - 20 kHz
Stylus Type	Elliptical
Mount	Standard 1/2 inch
Channel Separation	25 dB at 1 kHz
Load Impedance	47 kΩ
Compliance	25 x 10-6 cm/dyne
Channel Balance	2 dB
Output Voltage	3.5 mV
Recommended Load Capacitance	400 to 500 pF
