Shure V-15 Type III User Manual

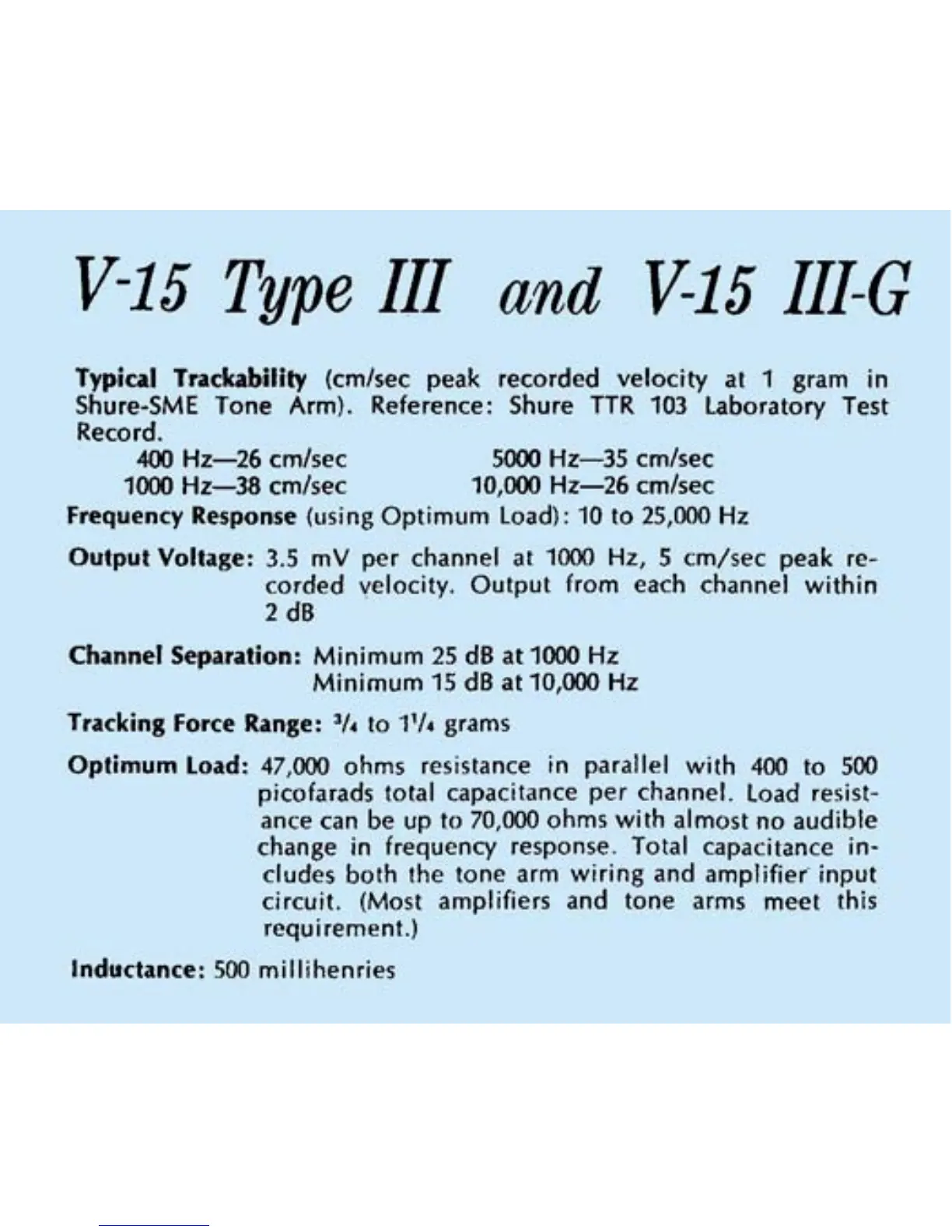

V-15 Type 111 and V15 111-G
Typical Trackability (cmlsec peak recorded velocity at 1 gram in
Shure-SME Tone Arm). Reference: Shure TTR
103 Laboratory Test
Record.
400 Hz-26 cmlsec 5000 Hz-35 cmlsec
1000 Hz-38 cmlsec
10,000 Hz-26 cmlsec
Frequency Response (using Optimum Load): 10 to 25,000 Hz
Output Voltage: 3.5 mV per channel at 1000 Hz, 5 cm/sec peak re-
corded velocity. Output from each channel within
2 dB
Channel Separation: Minimum
25 dB at 1000 Hz
Minimum 15 dB at 10,000 Hz
Tracking Force Range: '14 to 1'14 grams
Optimum Load:
47,000 ohms resistance
in parallel with
400 to 500
picofarads total capacitance per channel. Load resist-
ance can be up to
70,OM) ohms with almost no audible
change in frequency response. Total capacitance in-
cludes both the tone arm wiring and amplifier input
circuit. (Most amplifiers and tone arms meet this
requirement.)
Inductance:
500 millihenries

Shure V-15 Type III Specifications

General

Type	Phono Cartridge
Category	Accessories
Frequency Response	20 Hz - 20 kHz
Stylus Type	Elliptical
Mount	Standard 1/2 inch
Channel Separation	25 dB at 1 kHz
Load Impedance	47 kΩ
Compliance	25 x 10-6 cm/dyne
Channel Balance	2 dB
Output Voltage	3.5 mV
Recommended Load Capacitance	400 to 500 pF
