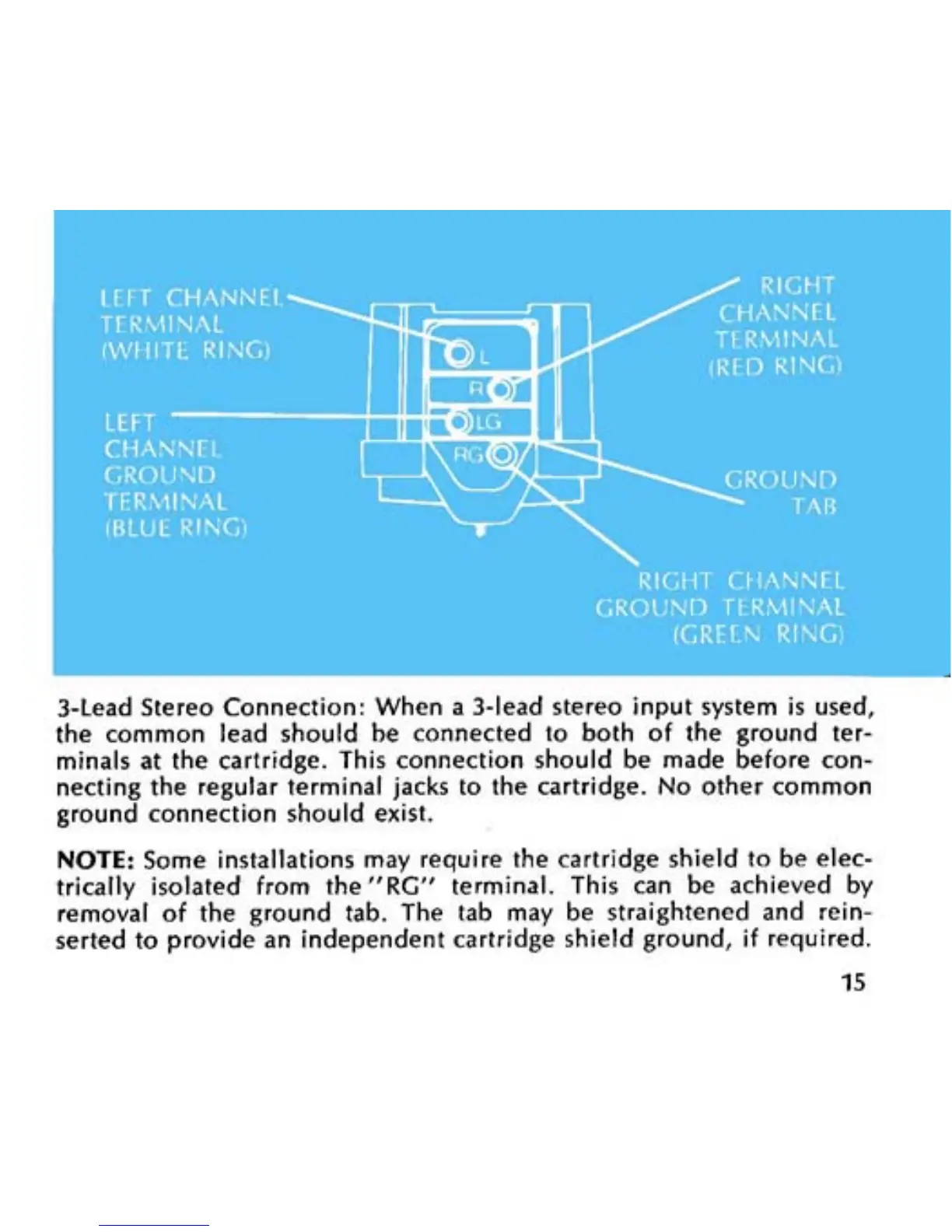

LEFT CHANP
TERMINAL
(WHITE RING)
LEFT
-
CHANNEL
GROUND
TERMINAL
(BLUE RING)
.
RIGHT CFIANNEL
GROUND TERMINAL
(GREEN RING)
3-Lead Stereo Connection: When a 3-lead stereo input system is used,
the common lead should he connected to both of the ground ter-
minals at the cartridge. This connection should be made before con-
necting the regular terminal jacks to the cartridge. No other common
ground connection should exist.
NOTE:
Some installations may require the cartridge shield to be elec-
trically isolated from
the"RG" terminal. This can be achieved by
removal of the ground tab. The tab may be straightened and rein-
serted to provide an independent cartridge shield ground, if required.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Shure V-15 Type III and is the answer not in the manual?

Shure V-15 Type III Specifications

General IconGeneral
TypePhono Cartridge
CategoryAccessories
Frequency Response20 Hz - 20 kHz
Stylus TypeElliptical
MountStandard 1/2 inch
Channel Separation25 dB at 1 kHz
Load Impedance47 kΩ
Compliance25 x 10-6 cm/dyne
Channel Balance2 dB
Output Voltage3.5 mV
Recommended Load Capacitance400 to 500 pF
