Page 14

ATTACHING THE PULLEYS

STEP 8

ITEMS REQUIRED

Towers Bag

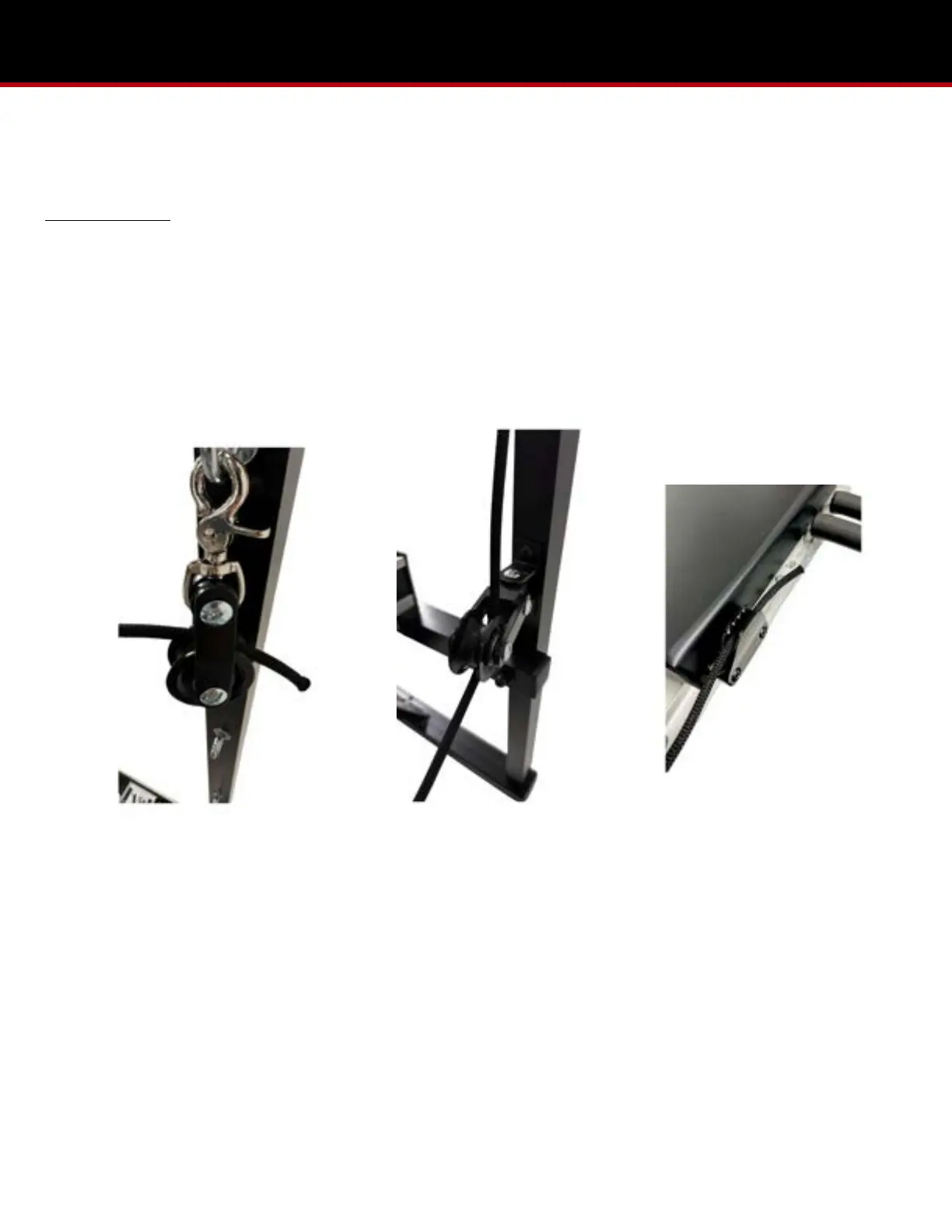

1. Attach the upper PNF pulleys from the towers bag to the desired height on the towers.

2. Run the end of the rope without handles through the pulleys. Start by feeding the rope through the top pulley and down

through the bottom pulley. (Pic 8.1 & 8.2)

3. Locate the rope cleat on both sides of the carriage and secure the end of the rope by pushing it down and back into the

rope cleat. (Pic 8.3)

8.1

8.2

8.3

ASSEMBLY OF THE 2000-1 (STEP 8)
