Shuttle 2000-1 - Assembly of the 2000-1

Page 4
Assembly of the 2000-1 requires two people.
Tools Needed: 7/16 inch socket or combination wrench, 1/2 inch socket of combination wrench.
Clinical Plus model will also need a rubber mallet for tower installation.
The 2000-1 will come in three boxes:
1. Rails and Carriage
- Carriage
- 2000-1 Rail System
- Kickplate Structure
2. 2000-1 Stands
- Two Stand-Ends
- Connector Bar
- Parts Bag
- Wobble Board w/ Hanger (Clinical/Clinical Plus ONLY)
- Towers (Clinical Plus ONLY)
- Towers Bag (Clinical Plus ONLY)

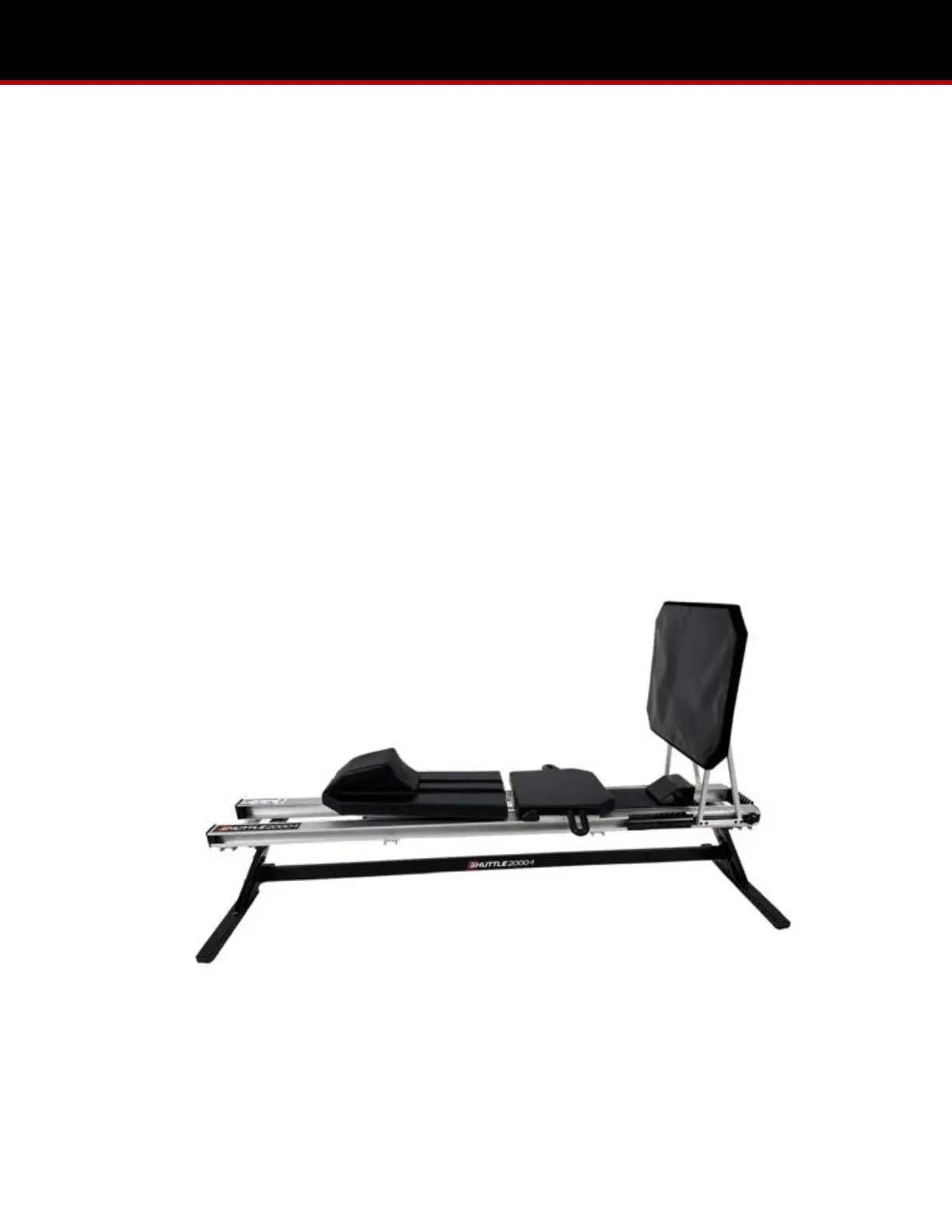

Head-End Stand
(Head-End)
Kickplate Structure
(Foot-End)
It is important to become familiar with the expressions “Foot-End and Head-End” as they indicate orientation for the
various steps and structures.
2. Kickplate
- Kickplate Board
- Parts Bag
ASSEMBLY OF THE 2000-1
