Shuttle 2000-1 - Step 1: Attach Stand Ends to Connector Bar

Page 5
ATTACHING STAND ENDS TO CONNECTOR BAR
STEP 1
ITEMS REQUIRED
Stand Ends
Connector Bar

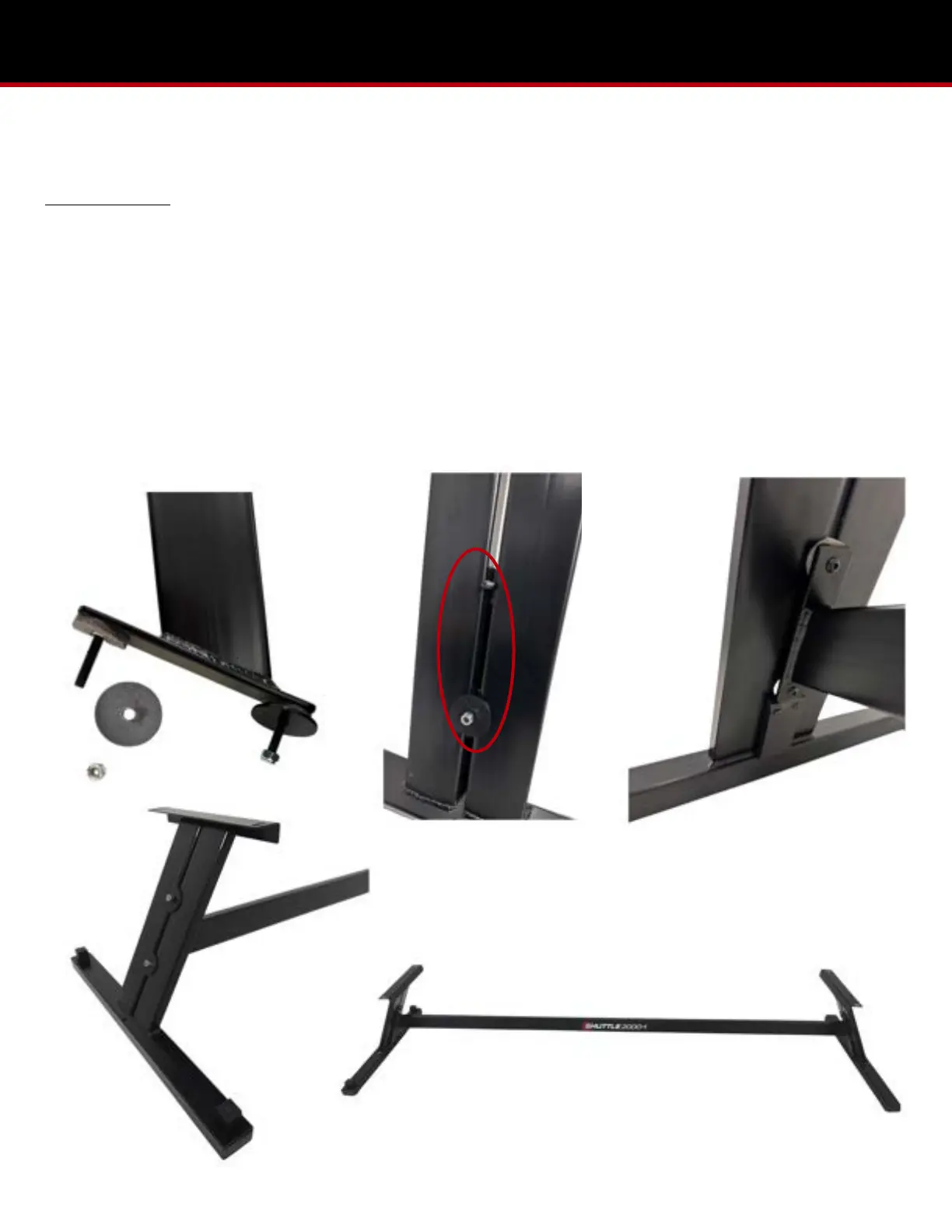

1. Position the stand-ends and crossbar on floor with care. Stand ends across from each other with the support bar in-
between.
2. Remove hardware from the support bar (four washers and four lock nuts). Place one end of the support bar against the
head-end stand, making sure that the bolts on the end of the support bar sit in-between the stand-end and rest against
the stand-end spacer block. (Pic 1.1, 1.2, 1.3)
3. Re-attach hardware to the support bar and hand-tighten to the head-end stand. Repeat this process to attach the foot-
end stand to the support bar. (Pic 1.4 & 1.5)
1.1
1.1
1.2
1.3
1.4
1.5
ASSEMBLY OF THE 2000-1 (STEP 1)
