Fig.7

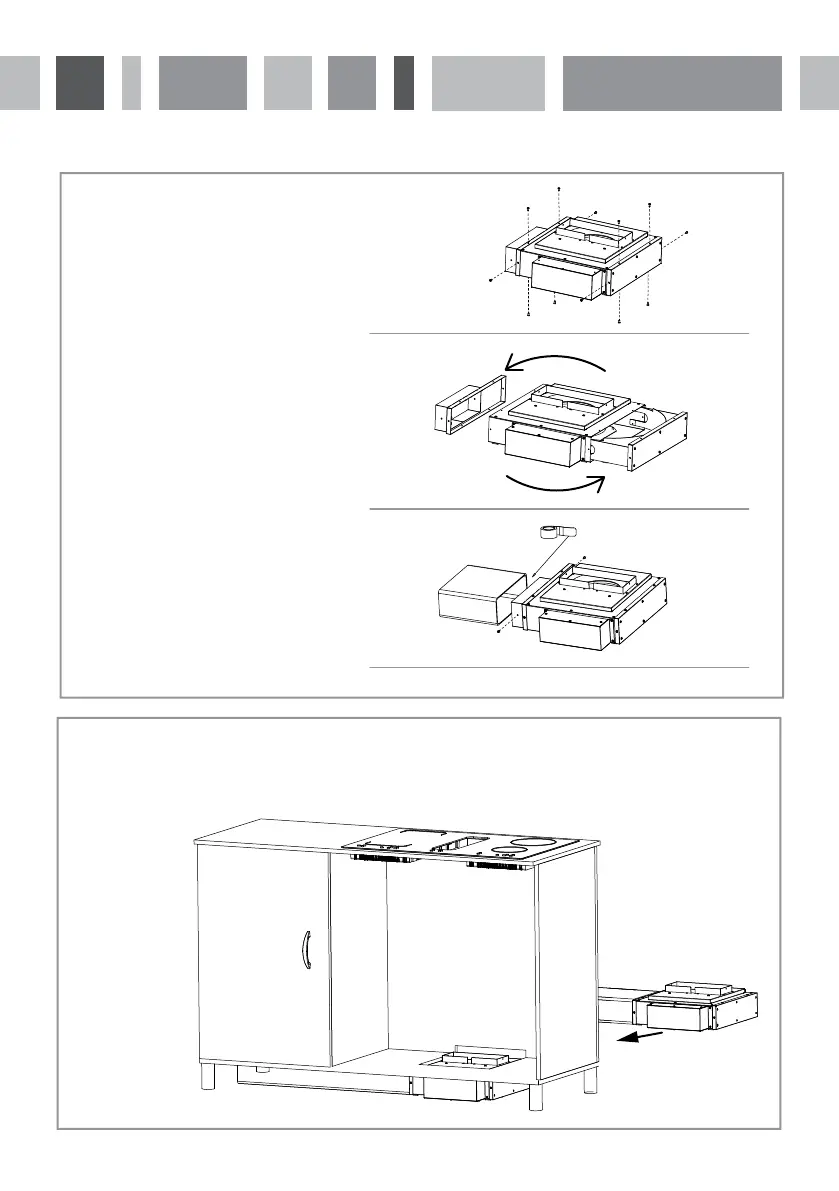

Fan system installation instructions
①. Choose the required air outlet direction
of the fan system according to the position
of the flue and the cabinet. The 12 screws
on the left and right side plates of the fixed
fan can be removed and the adjustments
made in the direction of the arrow to change
the air outlet position.
Once the air outlet is in the desired
position, push the rectangular duct channel
onto the fan outlet and fix it with two ST4*10
screws at the corresponding positions. Seal
the connection with aluminium tape.
②.
15
Installing the fan system underneath the cabinet
Slide the fan system and ducting in place from the back of the cabinet so it’s positioned within the previously
made cut-out.
Fig.8
To Next Page
