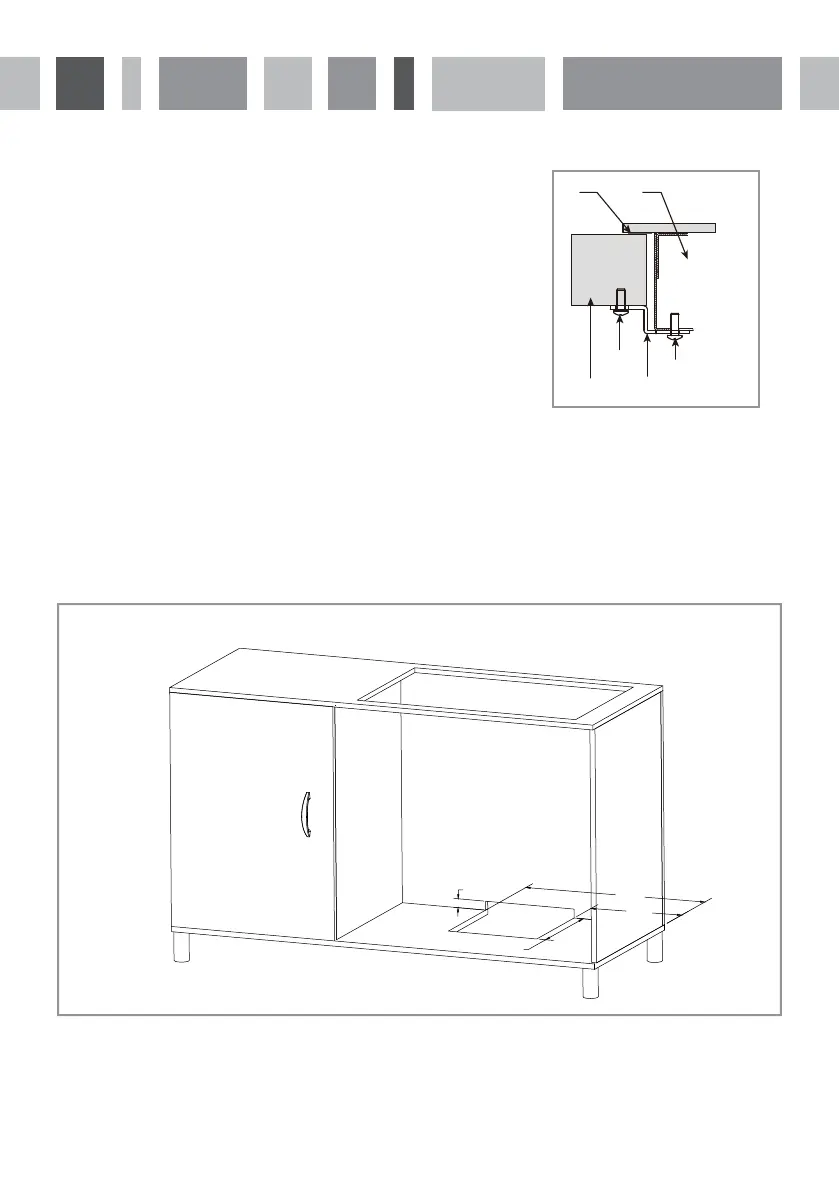

Fig. 6 Fan system cut-out size
Fan system hole size
EXTRACTOR INSTALLATION
When you have installed the hob, make sure that:
• The power supply cable is not accessible through cupboard doors or
drawers.
• There is adequate flow of fresh air from outside the cabinets to the base of
the hob.
• If the hob is installed above a drawer or cupboard space, the
temperature on the bottom of the hob may be too high. In order to prevent
injury or risk of fire, a thermal protection barrier must be installed below
the base of the hob.
• The isolating switch is easily accessible.
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface to prevent damage.
Adjusting the bracket position
Secure the hob to the work surface using the brackets and screws provided (see Fig. 5).
Cautions
1. The induction hob must be installed by qualified personnel or technicians.
2. The hob must not be installed directly above a dishwasher, fridge, freezer, washing machine or a dryer as the humidity
may damage the hob electronics.
3. The induction hob must be installed in a way that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the worksurface must withstand heat generated by the hob.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
Fig.5
S
Worktop
Screw
Screw
Fixing bracket
Hob
