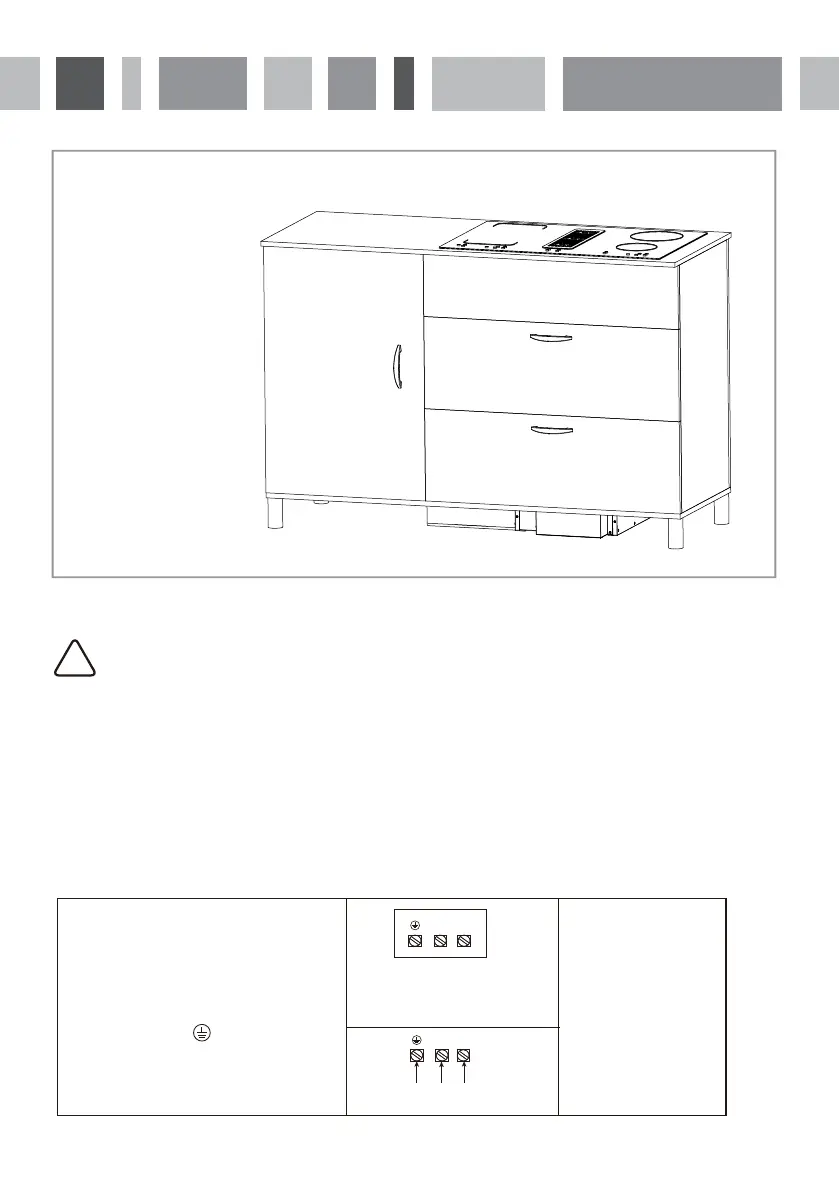

Fig. 18 Replace the cabinet drawer(s) or door(s).
Finish installation
The method of connection is shown below.
20
MAINS ELECTRICITY CONNECTION
Connecting the downdraft induction hob to the mains power supply
This downdraft induction hob must be connected to the mains power supply only by a suitably qualified person.
Before connecting the downdraft induction hob to the mains power supply, check that:
1. The domestic wiring system is suitable for the power drawn by the downdraft induction hob.
2. The voltage corresponds to the value given on the rating plate.
3. The power supply cable sections can withstand the load specified on the rating plate.
To connect the downdraft induction hob to the mains power supply, do not use adapters, reducers, or branching devices,
as they can cause overheating and fire.
The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75˚C
at any point.
Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be
made by a qualified electrician.
The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. the
method of connection is shown below.
!
CONNECTION DIAGRAM
Caution! Voltage of heating
elements 220-240V Caution! In the event
of any connection, the safety wire must be
connected to the E terminal.
Recommended type of
connection lead
H07RN-F3G4mm
2
L N
E L N
L N
