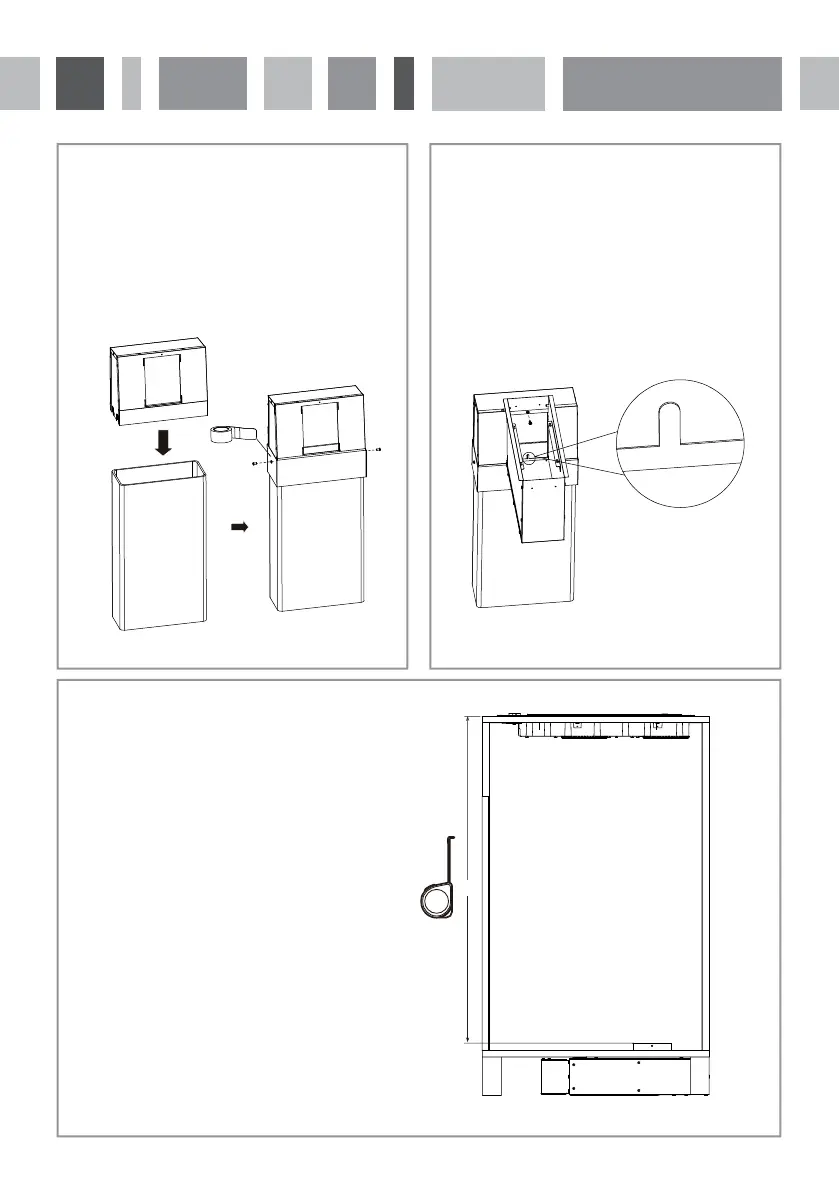

Fig.9 Fig.10
Installation of the adaptor and ducting
channel
Fix the ducting channel onto the adaptor with two
ST4 * 10 screws and then use the aluminium tape
to seal the connection.
Installation of the adaptor and ducting
channel
Align the four claws of the extraction box with the
long holes of the adaptor. Lift the extraction box
upwards to lock the claws in position and secure
the box to the adaptor with a ST4 * 10 screw.
Carefully rotate the claw underneath the extraction
box 180 degrees to ensure a tight fit to the adaptor.
16
Fig.11
X
Ducting channel installation instructions
Use a measuring tape to measure the distance “X” from the
worktop to the air inlet of the fan system.
