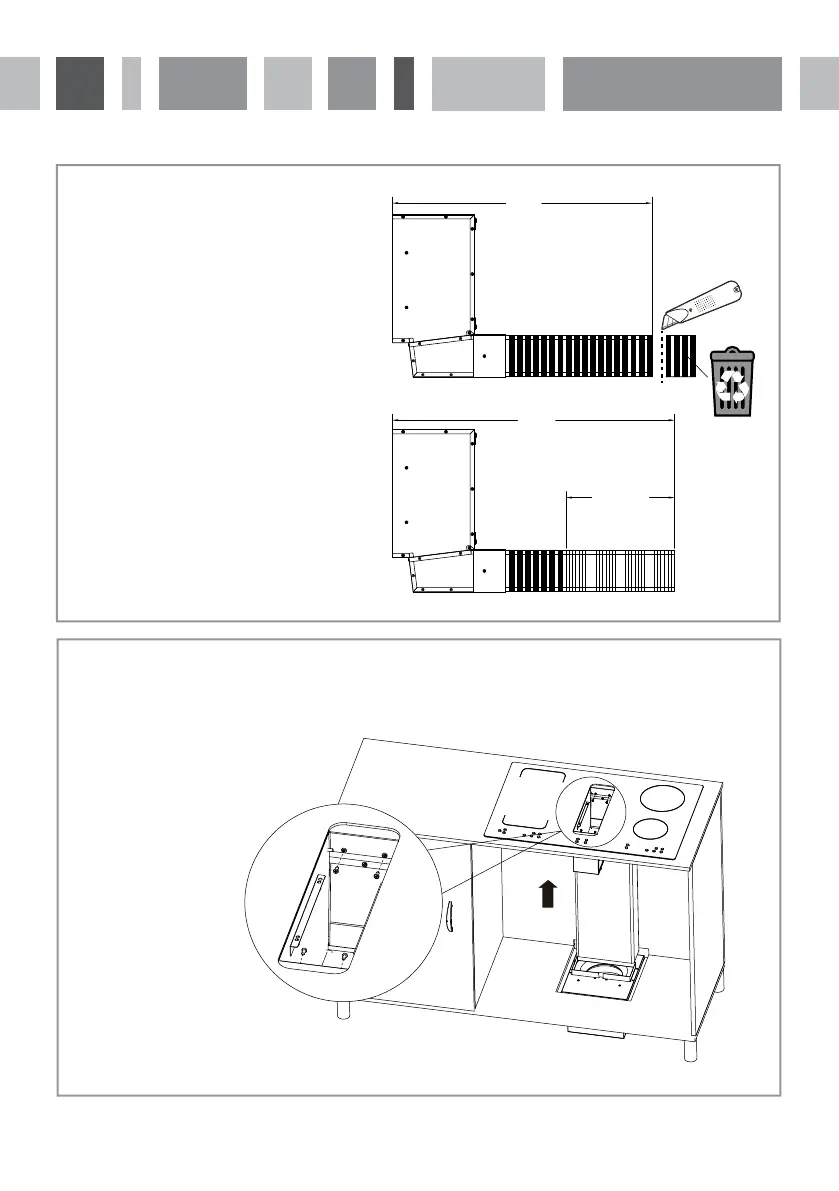

Fig.12
X-50
X+15
Ducting channel installation instructions
Measure a distance of X (see Fig. 11) less 50mm
(X–50) from the upper edge of the extraction
box down along the ducting channel and cut
o the excess.
Stretch
Stretch the aluminium ducting channel to the
length of X + 15mm in order to connect it to
the fan system.
17
Fig.13
Installation instructions for the air duct
Align the assembled extraction box, adaptor and ducting channel with the hob from inside the cabinet and
secure in place with four ST4 * 10 screws.
