SICK CLV620 Technical Information

Table 5: CLV631 reading fields with front viewing window
CLV631 in standard housing CLV631 in IP69K protective housing
500
(19.69)
300
(11.81)
400
(15.75)
200
(7.87)
100
(3.94)
0
Reading distance in mm (inch) 2
Resolution 3
a: 0.25 mm (9.8 mil)
c: 0.50 mm (19.7 mil)
b: 0.35 mm (13.8 mil)
–100
(–3.94)
–200
(–7.87)
100
(3.94)
200
(7.87)
0
Reading field height in mm (inch) 1
a
b
c

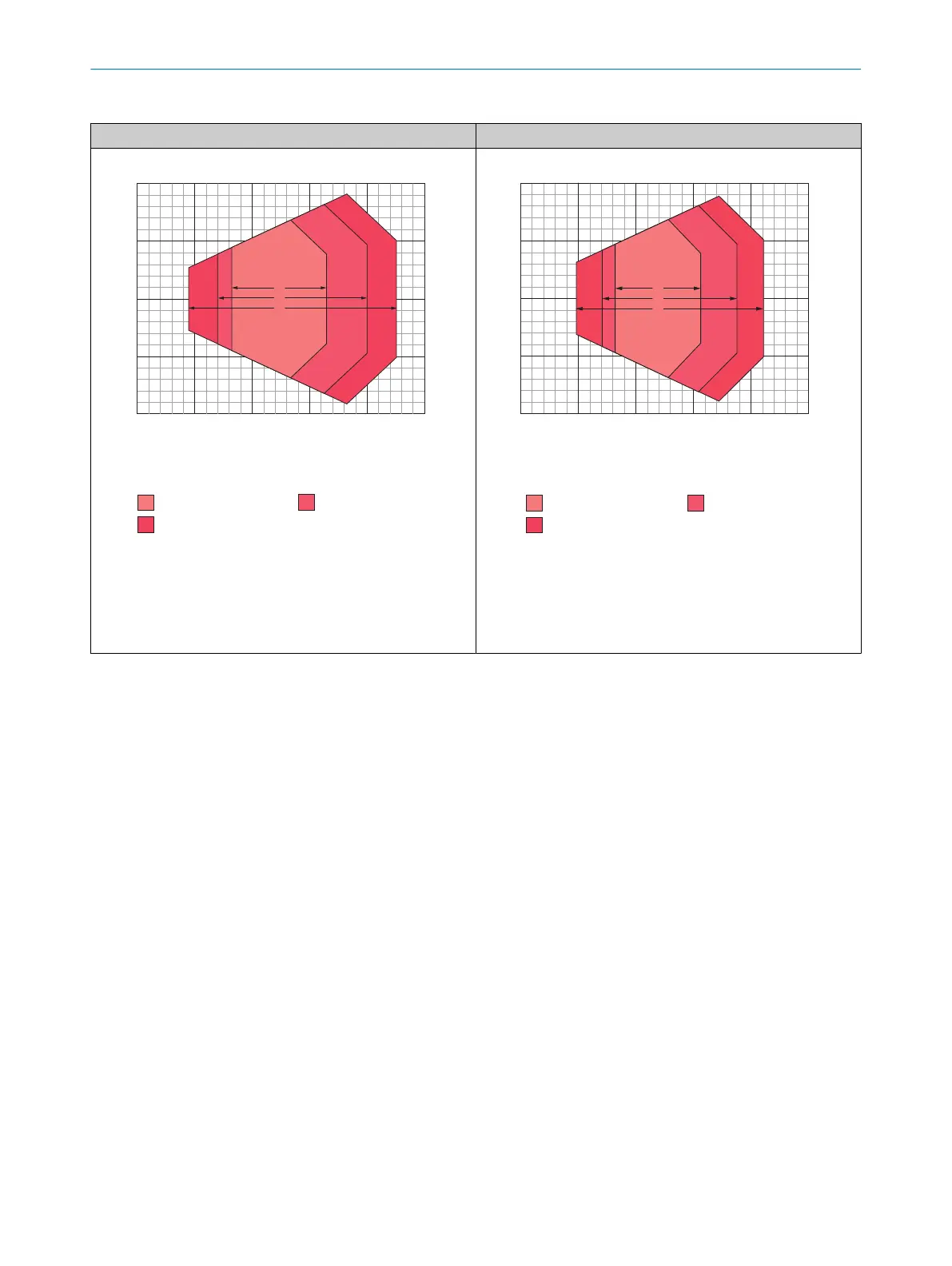

Figure 8: Reading field diagram of CLV631-0120, front view‐
ing window (glass)
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
0
0
a
b
c
–100
(–3.94)
–200
(–7.87)
100
(3.94)
200
(7.87)
Reading field height in mm (inch) 1
Reading distance in mm (inch) 2
500
(19.69)
300
(11.81)
400
(15.75)
200
(7.87)
100
(3.94)
Resolution 3
a: 0.25 mm (9.8 mil)
c: 0.50 mm (19.7 mil)
b: 0.35 mm (13.8 mil)
Figure 9: Reading field diagram of CLV631-0831S01, front
viewing window (plastic)
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
Example: Reading fields of CLV631 with oscillating mirror and side viewing window
The following table shows the reading fields of two comparable fixed mount bar code
scanners by way of example.
PRODUCT DESCRIPTION 3
8021479/19ZB/2021-10-29 | SICK T E C H N I C A L I N F O R M A T I O N | CLV62x, CLV63x and CLV64x with IP69K Protective Housing
19
Subject to change without notice
