2.5

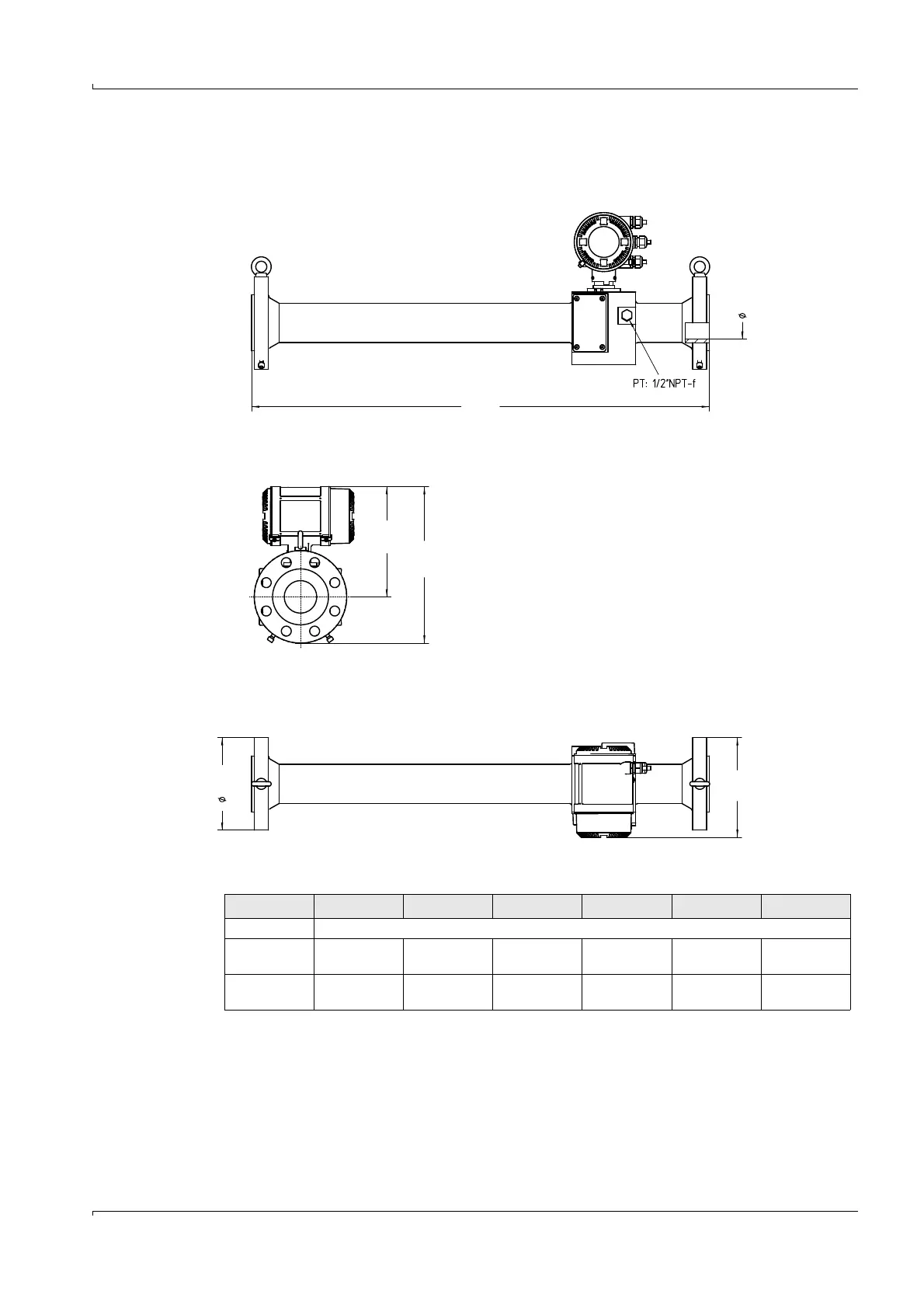

Dimensional drawings
2.5.1 FLOWSIC600 DRU 3" and 4"
A B C D E F
All dimensions in mm (in).
3" 1040
(40.94)
76,66
(2.90)
250.5
(9.86)
355.5
(14.00)
210
(8.27)
226.3
(8.91)
4" 1300
51.18
97.18
(3.83)
259
(10.20)
396
(15.60)
275
(10.83)
258.8
(10.19)
A
B
C
D
E
F
