ON
OFF
ON
OFF
ON
OFF
CMC600 parameter cloning module
(optional) 3
2 A T
S8
No CMC ->
SCANNER
AUX interface 4
LEDs
31 32 33 34 35 36 37 38 39 40
T‒/TxD
R‒/RxD
+24 V*
Sensor 1
Aux Out 1
GND
GND
SGND
CAN_H
CAN_L
11 12 13 14 15 16 17 18 19 20
Result 1
Result 2
Aux In 2
Aux In 1
SGND
GND
GND
SGND
internal
internal
21 22 23 24 25 26 27 28 29 30
T+
R+
+24 V*
Sensor 2
Aux Out 2
GND
GND
SGND
CAN_H
CAN_L
1 2 3 4
+24 V
+24 V
GND
GND
5 6 7 8
Shield
Shield
Shield
Shield
POWER
Sensor 1
Sensor 2
Result 1
Result 2
S1
POWER
ON
OFF
S2 S3 S4 S6
ON
OFF
ON
OFF
RS485
Term422
TermCAN
SGND - GND
RS-232
Pin
2: RxD
3: TxD
5: GND
Result 1 6
GND
Result 2 6
V
S
Out
GND
Host
TD‒
TD+
RD+
RD‒
TxD
Host
RxD
GND
GND
RS-232RS-422
F
CDM420-0006
1
= à
V
S
- +24 V -
F
S 1
- +24 V*
V
S
2
- PC
5
- e.g. PLC 7
8
9
- Device ß
110
15
6
11
5
5
1
96

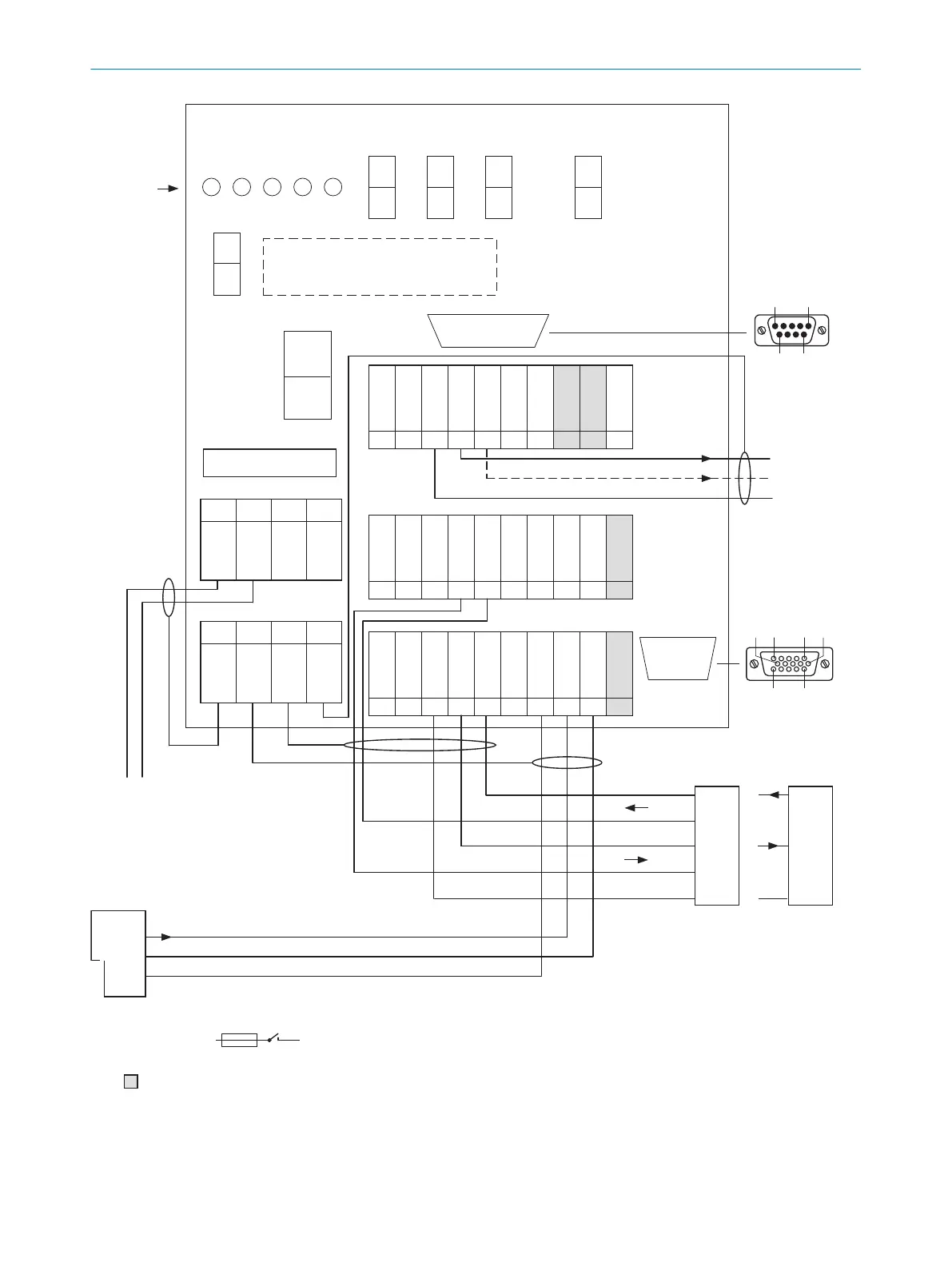

Figure 34: Overview: connection of device and peripherals to the CDM420-0006 connection module
1
External trigger sensor
2
Supply voltage V
S
13 ANNEX
64
O P E R A T I N G I N S T R U C T I O N S | InspectorP621 8024439//2019-06 | SICK
Subject to change without notice
