SICK InspectorP621 User Manual

Component Comment
This documentation, available in English
and German, and in other languages if
necessary
Available online at:
•
www.sick.com/InspectorP62x
Accessories
Accessories such as brackets and connecting cables is only delivered if the accessories
have been ordered separately, see "Accessories", page 52.
3.3 Product characteristics
3.3.1 Device view
8
6
4
Ready Read Diagn Result TeachIn LED Auto-Setup Data Autofocus LNK TX Userdefined
300 200 100
70
40
100 0
[mm]
[%]
2
3
a
ß
7
9
35.6 (1.40)
6 (0.24)
10 (0.39)
5
1
26.5
(1.04)
71 (2.80)
17.44
(0.69)
4.8 (0.19)
21.5
(0.85)
26
(1.02)
43 (1.69)
Ø 10
(0.39)
1
â
á
ã
à

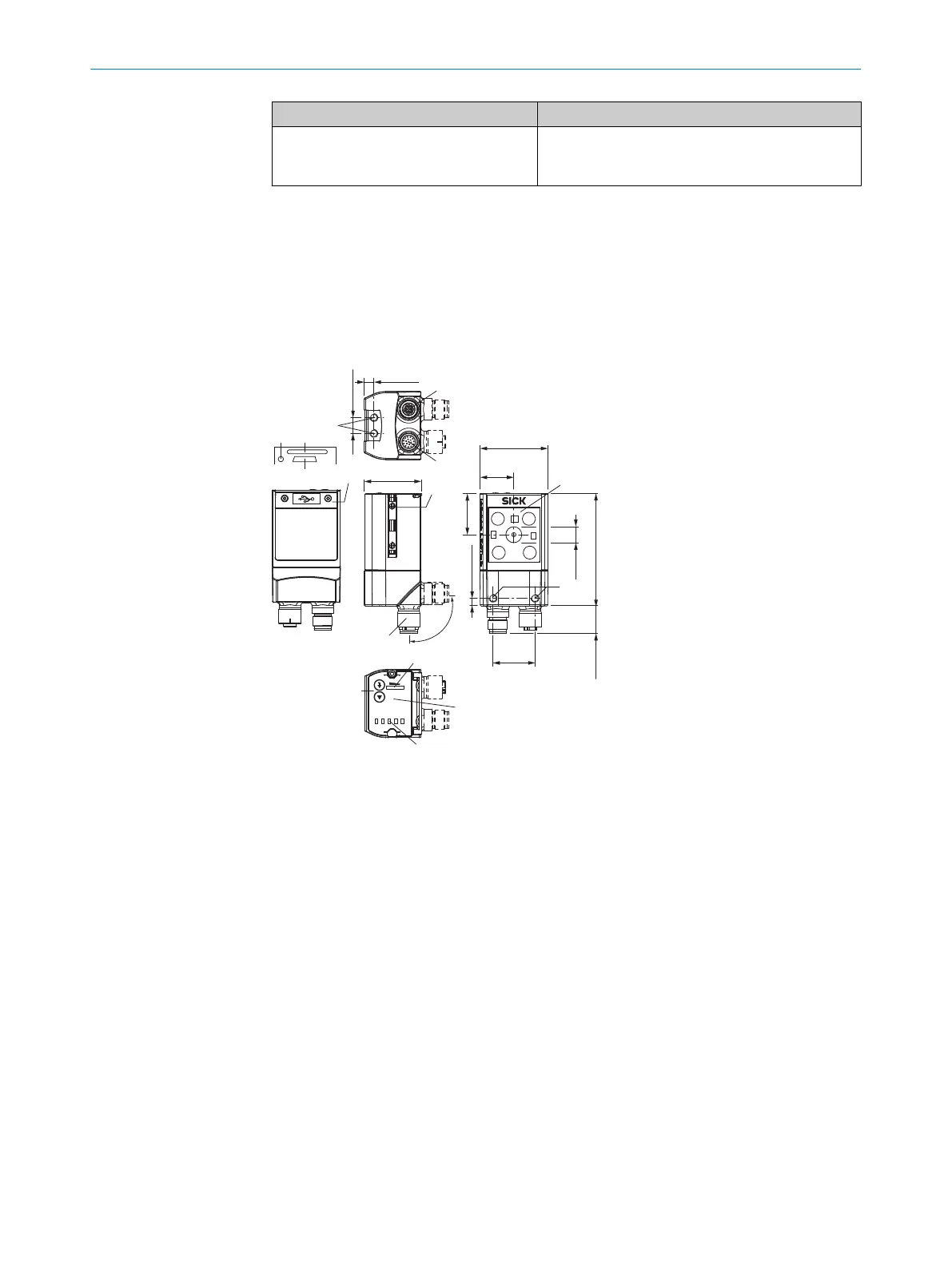

Figure 2: design and device dimensions, all dimensions in mm or inch
1
M5 tapped blind hole, 5 mm deep (4 x), for mounting the device
2
“Ethernet” connection (female connector, M12, 4-pin, D-coded)
3
“Power/Serial Data/CAN/I/O” connection (male connector, M12, 17-pin, A-coded)
4
Sliding nut M5, 5.5 mm deep (2 x), for an alternative method of mounting the device
5
Reading window with internal illumination LEDs (4 x)
6
Swivel connector (swivel range 180°)
7
Bar graph display
8
Beeper (under housing cover)
9
RGB LEDs for status indication (2 levels), 5 x
ß
Function button (2 x)
à
Cover (flap) with fixing screw (Torx TX6, captive), 2 x
á
USB port (female connector, type Micro-B, 5-pin)
â
Slot for microSD memory card
ã
Status display (LED) for microSD memory card
PRODUCT DESCRIPTION 3
8024439//2019-06 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP621
15
Subject to change without notice
