NOTICE
damage to the swivel connector from over-rotation!
•
The swivel connector may be moved up to a maximum of 180° from end point to
end point. Do not exceed the respective limit position.
•
Carry out the rotational movement slowly.
3.3.1.1 Illumination unit
1
3
2
1
1
1

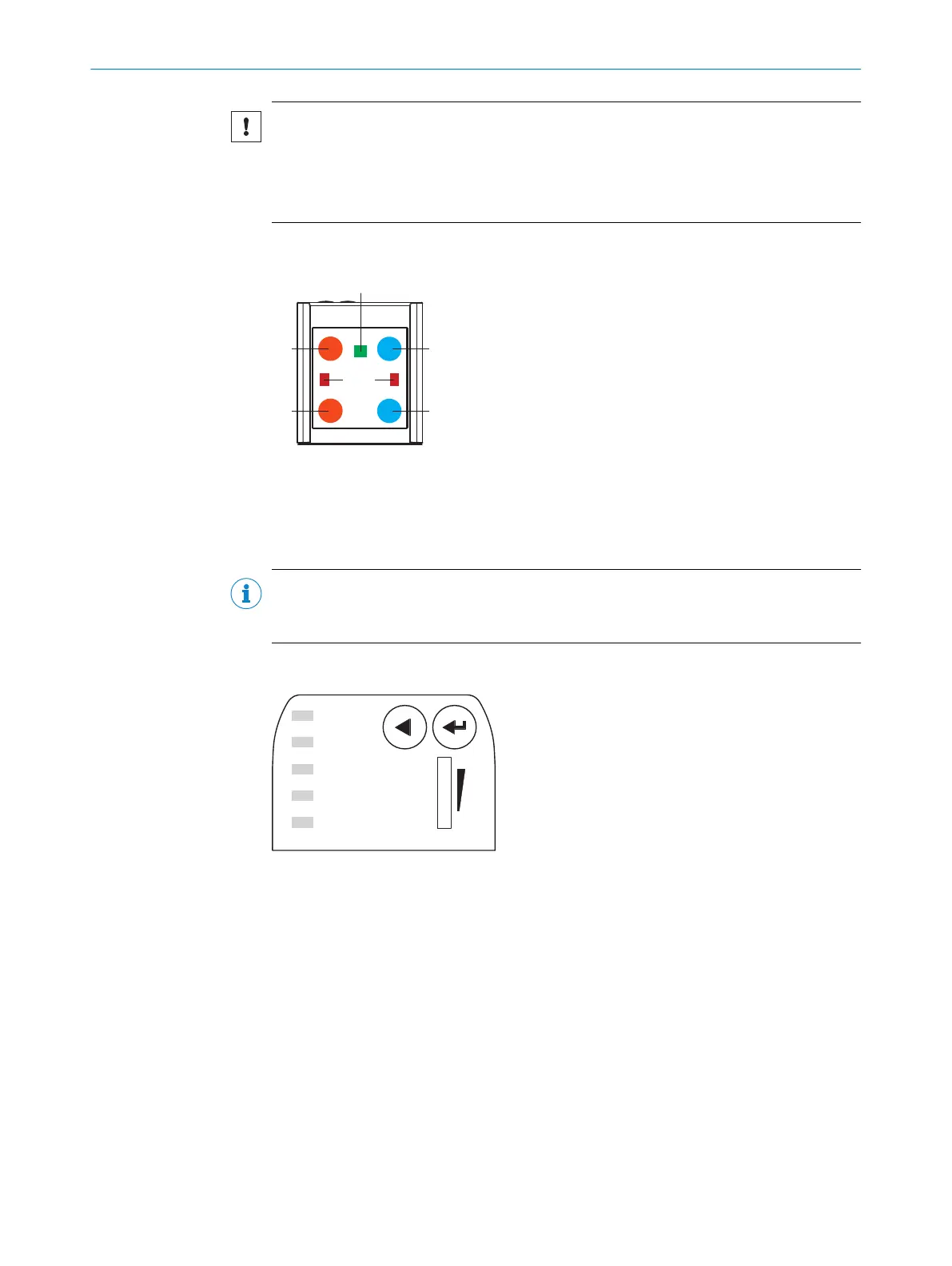

Figure 3: Illumination unit (integrated illumination unit)
1
4 LEDs (color: visible red light, visible blue light; position: 2 on the left, 2 on the right)
2
Feedback-LED (color: visible green light)
3
Laser alignment aid (color: visible red light)
NOTE
To avoid being dazzled by the integrated illumination unit, do not look into the viewing
window of the device.
3.3.2 Display and operating elements
Ready
Read Diagn
Result
TeachIn
LED
Auto-Setup
Data
Autofocus
LNK TX
Userdefined
300
200
100
70
40
100
0
[mm]
[%]
O
O
O
O
O
Figure 4: LED status displays, bar graph display and function keys on the top of the device
3 PRODUCT DESCRIPTION
16
O P E R A T I N G I N S T R U C T I O N S | InspectorP621 8024439//2019-06 | SICK
Subject to change without notice
