SICK InspectorP621 User Manual

Device 1
CDM420-0006
Load (e.g. PLC) 5
C
5
.
.
.
E
Result D
13
GND
5
Shield
+24 V* (V
S
)
V
S
GND
V
out
Result A
GND
B
1
2
1
For inductive load: 7
6
2
3
4
3
1
7
2
6
5
4
8
13
14
17
15
9
10
12
16
11
9 8
110
15
6
11
5

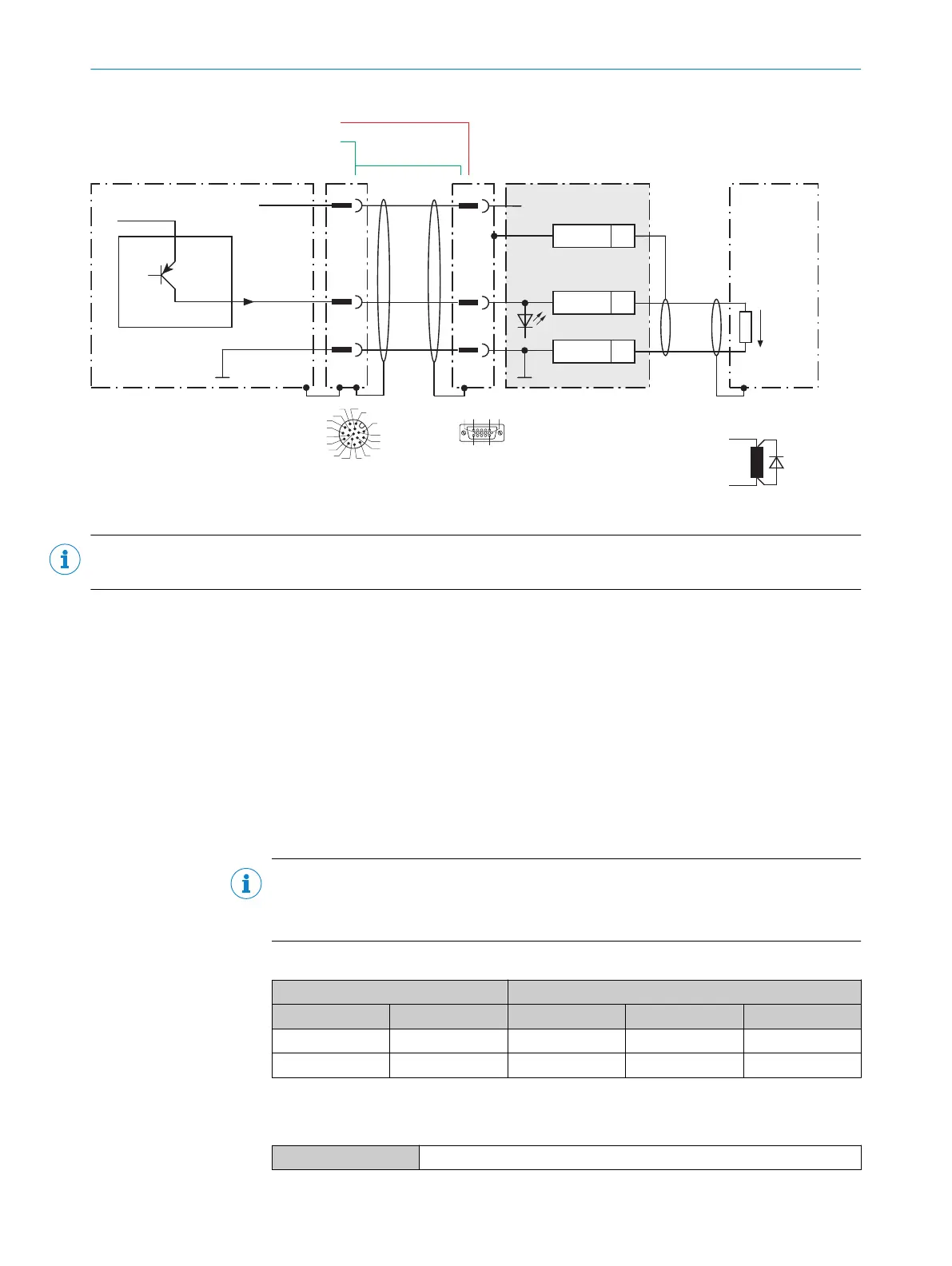

Figure 40: Wire digital outputs "IN/OUT 3" and "IN/OUT 4" of the device in the CDM420-0006 connection module
NOTE
The two digital outputs “IN/OUT 5” and “IN/OUT 6” are not available in the device in the CDM420-0006.
1
Device
2
Supply voltage V
S
3
Connecting cable for 15-pin male connector (not available)
4
Adapter cable (female connector, M12, 17-pin, A-coded/male connector, D-Sub-HD, 15-pin)
5
Load (e.g. PLC)
6
Output voltage V
out
7
With inductive load: see note
8
Connection module: female connector, D-Sub-HD, 15-pin
9
Male connector, M12, 17-pin, A-coded
Inductive load
NOTE
Provide an arc-suppression switch at the digital output if inductive load is present.
b
Attach a freewheeling diode directly to the load for this purpose.
Table 22: Assignment of placeholders to the digital outputs
Device CDM420-0006
Output A Pin B Pin C Signal D Terminal E
IN/OUT 3 13 12 Result 1 14
IN/OUT 4 14 13 Result 2 15
Characteristic data of the digital outputs
Table 23: Characteristic data of "IN/OUT 3" and "IN/OUT 4” digital outputs
Type Switching
ANNEX 13
8024439//2019-06 | SICK O P E R A T I N G I N S T R U C T I O N S | InspectorP621
