NOTE
If PIN 5 is assigned with tch (external teach-in), the teach-in variant can be defined too
(2-point, dynamic, or 1-point).
If you want to use PIN 5 as an input with function L-D or F-C, function L/D or SEn must
be set to AUt in the default.

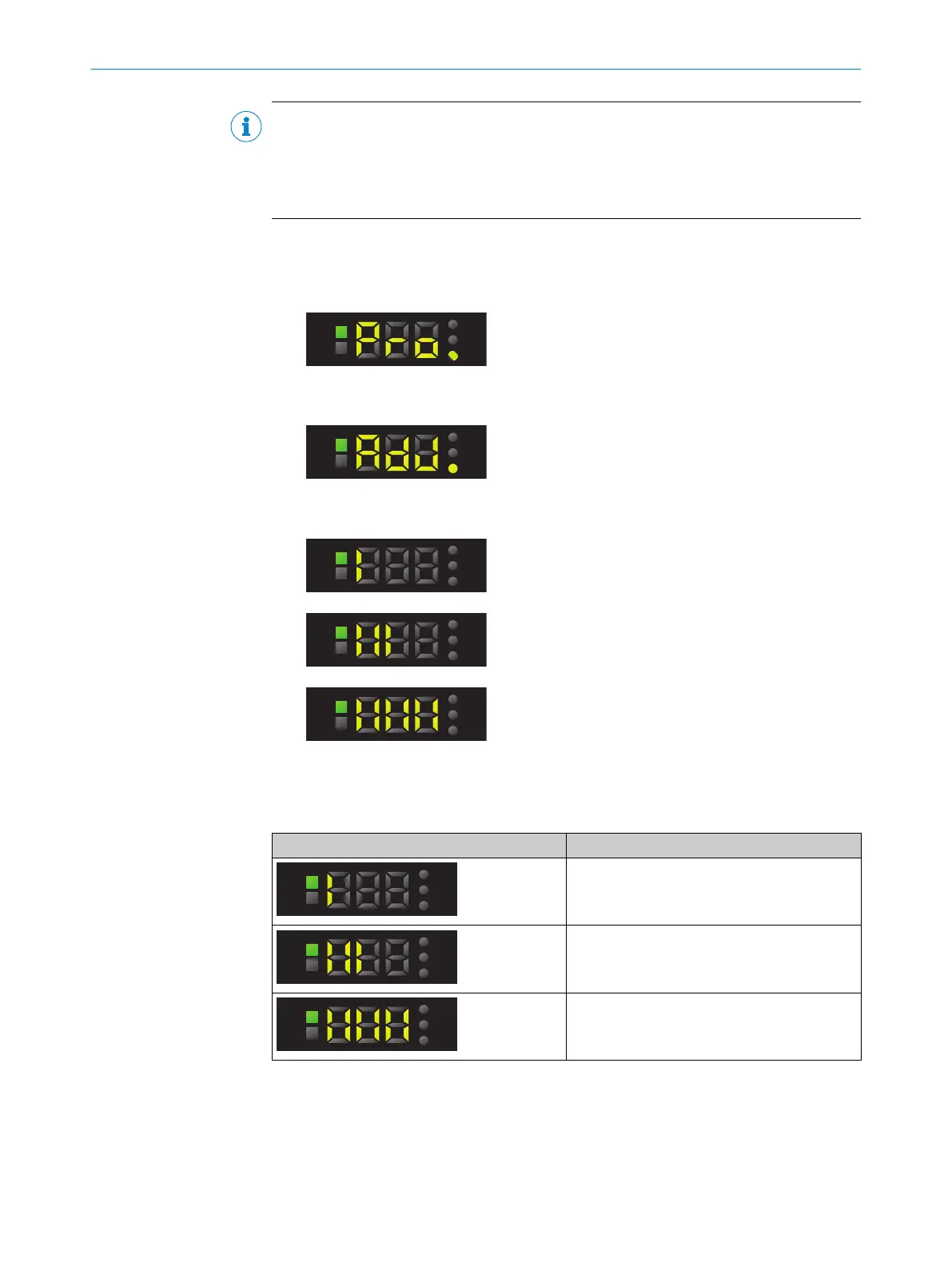

7.8.6 Using mounting feedback
1. Press the SET pushbutton.
2. Use the plus or minus pushbutton to select Pro.
3. Press the SET pushbutton.
4. Use the plus or minus pushbutton to select AdJ.
5. Press the SET pushbutton.
6. Adjust the device height manually.
7. Press the SET pushbutton when the device is positioned within the nominal sens‐
ing distance.
Table 11: Mounting feedback indicator
Indications Meaning
Sensing distance set too close or too far away
Sensing distance set to moderate
Nominal sensing distance
7.8.7 Storing or loading a parameter set (job)
Stored parameter sets (jobs) make it possible to permanently save and flexibly manage
specific application parameters (e.g., teach process, sender color, etc.) in the device for
certain marks or applications.
OPERATION 7
8020708.ZMT3/ | SICK O P E R A T I N G I N S T R U C T I O N S | KTS/KTX Prime
37
