13
SICK MSL
8 007 653/09-04-01 Technical Description • MSL © SICK AG • Safety Systems • Germany • All rights reserved
5.5 Mechanical fixing
In the basic kit, 4 slider nuts with
M5 Thread are provided for both
sender unit and receiver unit. These
slider nuts are fastened into the slot
on the side of the housing. Either
rigid, hinged or shock absorbing
mounting brackets are available as
optional accessories (
fig. 13
).
The rigid bracket can be used
where no large mechanical
tolerances need to be compensated
for. The hinged bracket allows for
± 2° horizontal adjustment of the
sensor. In addition to this, the
bracket can be used in conjunction
with shock absorbers to reduce the
vibrational forces. The brackets are
fastened to the sender and receiver
units by means of slider nuts in the
housing.
To prevent shifting of the light
barrier, the bracket must be
fastened at 20 - 30 mm (60 mm
on the terminal chamber side) from
the end caps.
Part no.
7 021 352
Part no.
2 017 751
Part no.
2 017 752
2 018 742
±2˚
±2˚
5,3
12
24
10
22
44
14
25
4,8
50
ø 8,3
5
80
65
23
90
65
25
23
51
18
51
30
30
40
40
11
11
M5
Nutenstein
Befestigung an Maschine
M5 x 10

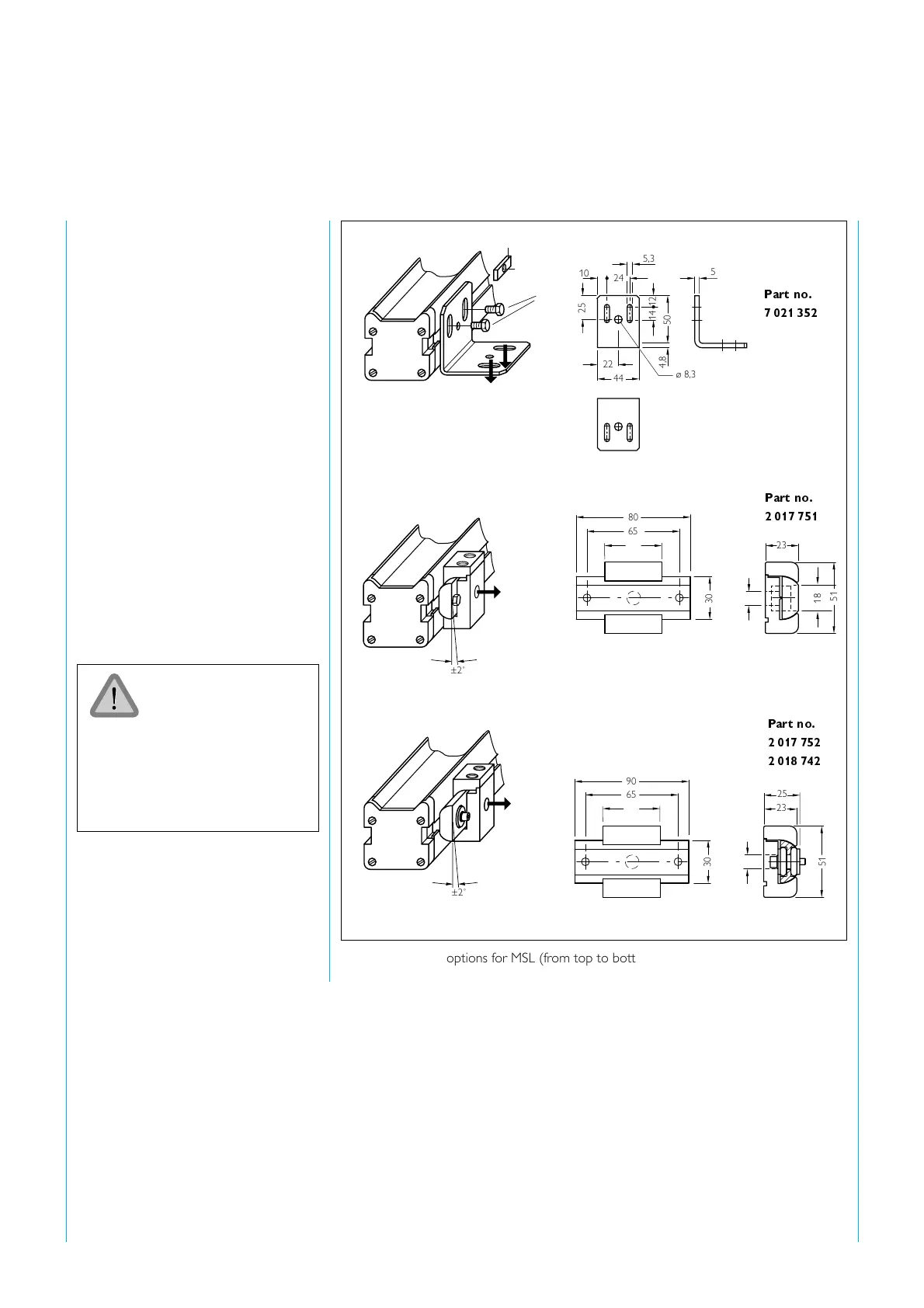

Fig. 13: Mechanical options for MSL (from top to bottom): Rigid bracket, hinged bracket and
bracket with shock absorber.
Slider nut
