15
SICK MSL
8 007 653/09-04-01 Technical Description • MSL © SICK AG • Safety Systems • Germany • All rights reserved

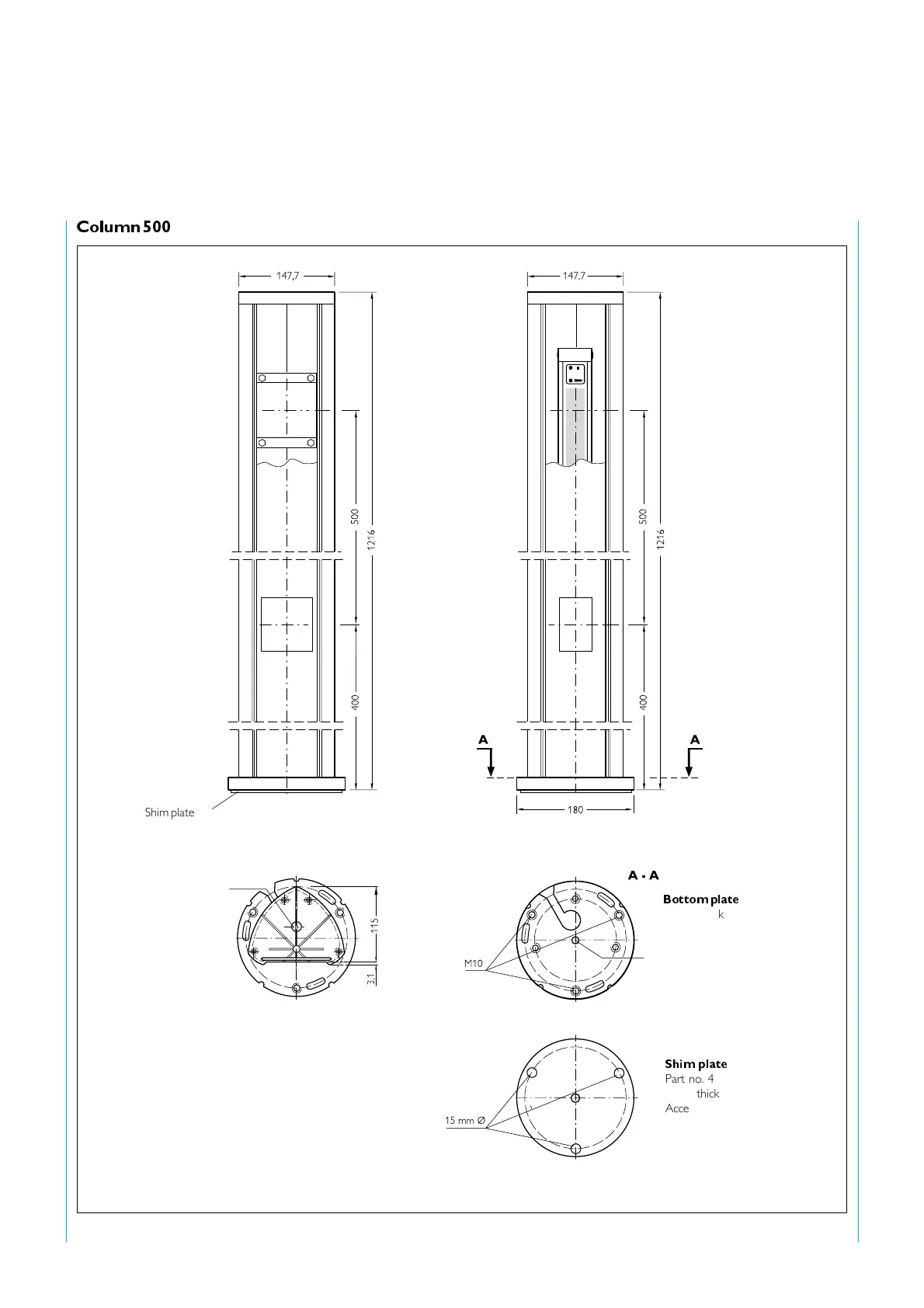

Fig. 15: Column 500: left – mirror column, right – device column
Column 500
Shim plate
Part no. 4 031 053
Levelling screws
(impact tie-bolt)
Bottom plate
15 mm thick
Shim plate
Part no. 4 031 053
3 mm thick
Accessory
for M10 screw type
fastening
(e. g. impact tie-bolt)
Spirit level
