SICK nanoScan3 Mounting Instructions

7
Network light emitting diodes
8
Pushbutton
9
System plug
The USB connection may only be used temporarily and only for configuration and diag‐
nos
tics.
4 Fitting the system plug
Fitting the system plug:
B
Prerequisites
T
ool required:
•
TX10 Torx wrench
Approach
1. Carefully insert the system plug into the safety laser scanner.
2. Screw in the system plug using the captive screws. Tightening torque: 1.3 Nm.
5 Mounting the device
Mounting the device:
C
1
Side M5 threaded hole
Prerequisites
•
Pr
oject planning has been completed.
•
Mount according to project planning.
•
Installation location provides protection against moisture, dirt and damage.
•
Status indicators are easily visible after mounting.
Approach
b
Use all four sides of M5 threaded holes for direct mounting, so the values given in
the data sheet for vibration and shock resistance are achieved.
b
Maximum depth of thread engagement: 7.5 mm.
b
Tightening torque: 4.5 Nm … 5.0 Nm.
b
In case of strong vibrations, use screw locking devices to secure the fixing screws.
6 Pin assignment
6.1 Connecting cable with M12 plug connector, 8-pin
Voltage supply and local inputs and outputs
•
Male connec
tor
•
M12
•
8-pin
•
A-coded
8
2
3
4
5
7
1
6

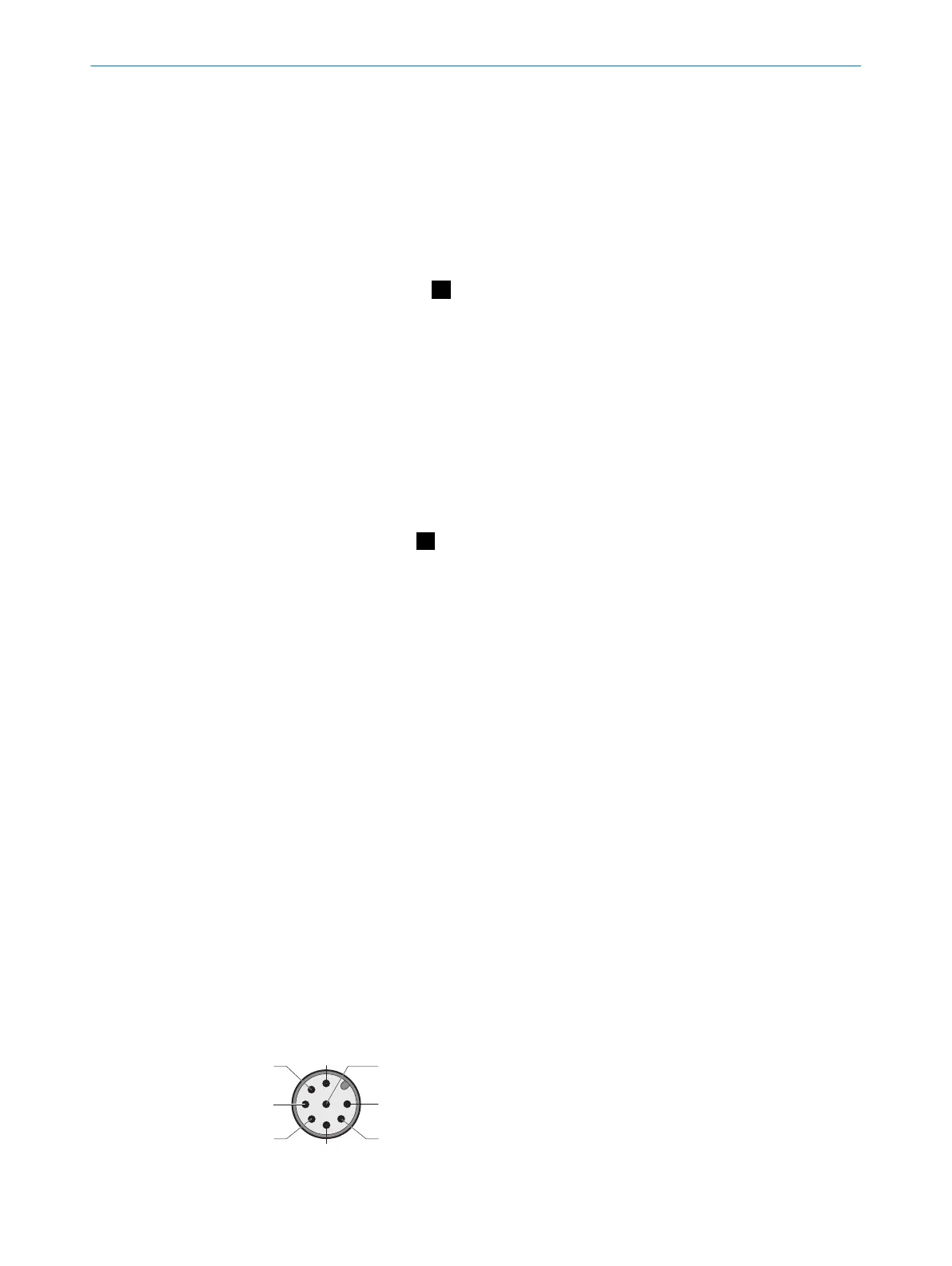

Figure 1: Connecting cable (male connector, M12, 8-pin, A-coded)
MOUNTING INSTRUCTIONS
14
M O U N T I N G I N S T R U C T I O N S | nanoScan3 8024612/2019-10-28 | SICK
Subject to change without notice
