SICK S300 Mini Mounting Instructions

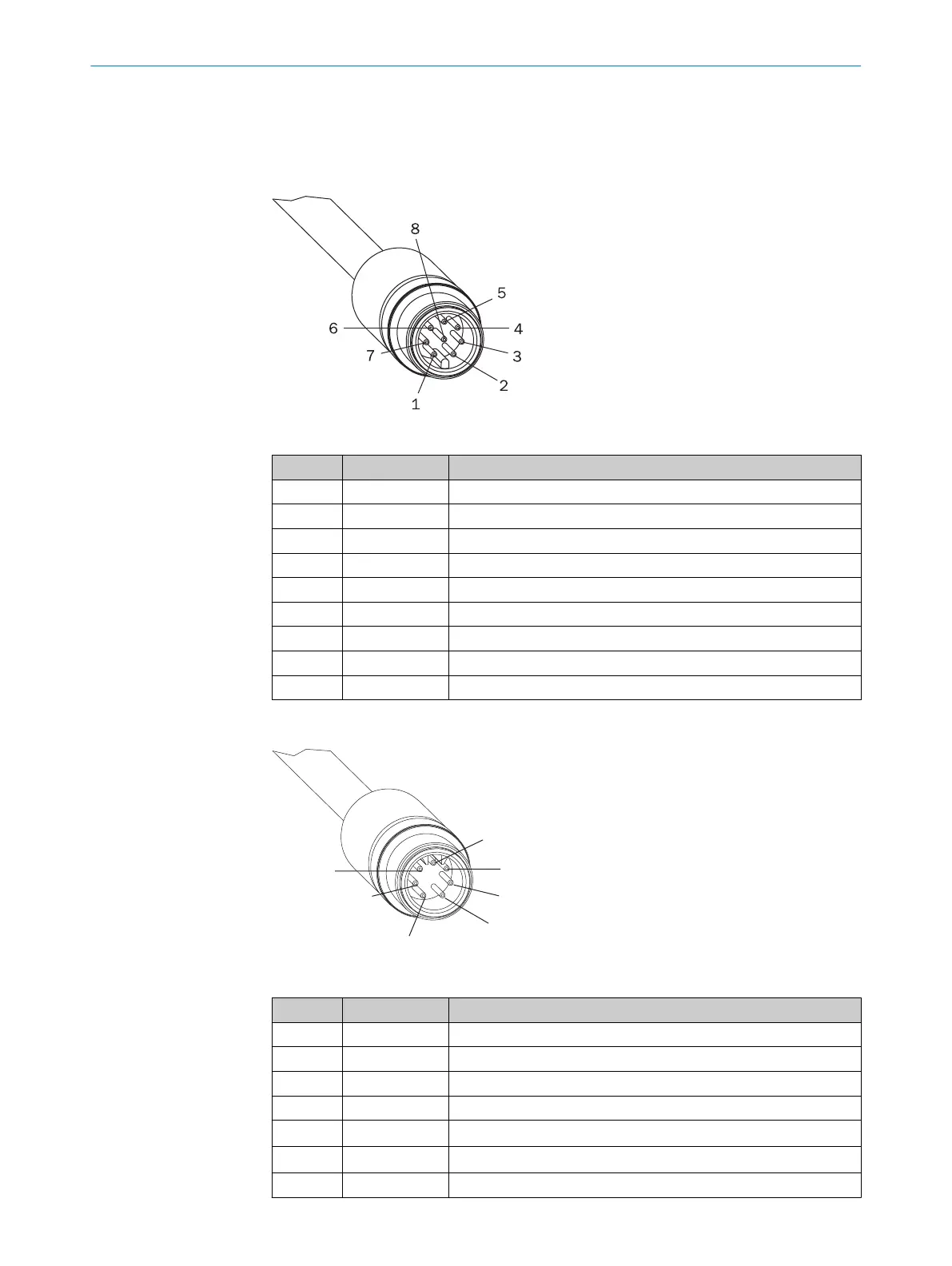

5 Pin assignment
S300 Mini Standard
Pin assignment of the S300 Mini Standard
Pin Signal Function
1 WF Output for warning field 1
2 24 V DC Supply voltage for the S300 Mini
3 I/O1 Universal I/O
4 I/O2 Universal I/O
5 OSSD1 Output signal switching device
6 OSSD2 Output signal switching device
7 0 V DC Supply voltage
8 FE/screen Functional earth/screen
Housing FE/screen Functional earth/screen
S300 Mini Remote
1
2
3
4
5
6
7
Pin assignment of the S300 Mini Remote
Pin Signal Function
1
1)
H/G Host/guest input
2 24 V DC Supply voltage for the S300 Mini
3 – Not assigned
4 – Not assigned
5 EFI
B
Enhanced function interface
6 EFI
A
Enhanced function interface
7 0 V DC Supply voltage
MOUNTING INSTRUCTIONS
8
M O U N T I N G I N S T R U C T I O N S | S300 Mini 8025884/2020-08-31 | SICK
Subject to change without notice
