SICK S300 Mounting Instructions

Pin Signal Wire color SX0B-B1105G
SX0B-B1110G
SX0B-B1114G
SX0B-B1120G
SX0B-B1105J
SX0B-B1110J
SX0B-B1505G
SX0B-B1510G
15 UNI-I/O5 /
R
ES_REQ/C2
Red/blue
C C C
16 STBY White/green
C C C
SX0B-X0000XS06: Pre-assembled system plug with plug connectors
3
2
4
1

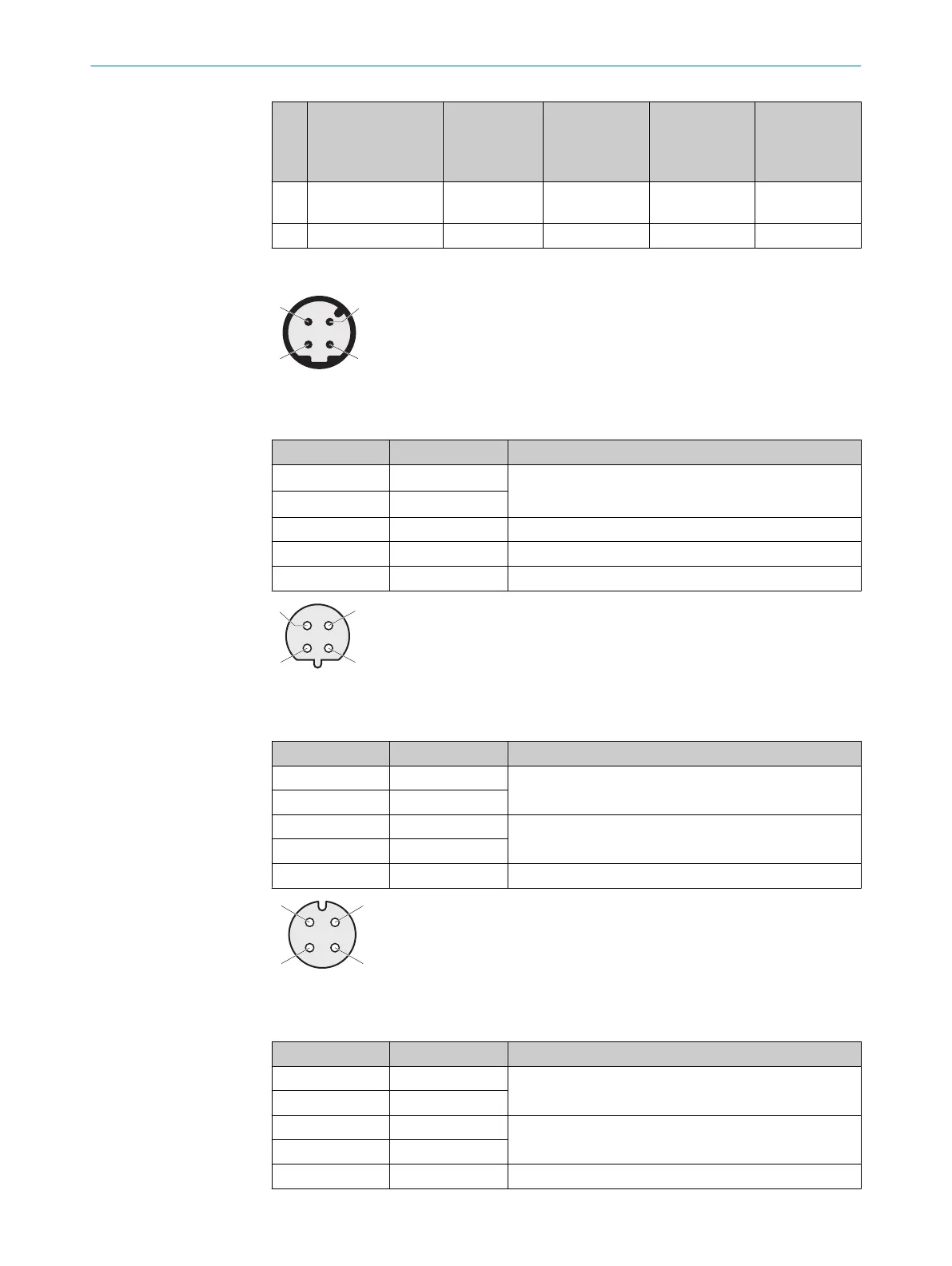

Figure 2: Voltage supply and EFI: Male connector, M12, 4-pin, D-coded
V
oltage supply and EFI: Male connector, M12, 4-pin, D-coded
PIN Designation Function
1 EFI
A
Enhanced function interface (safe SICK device commu‐
nic
ation)
2 EFI
B
3 24 V DC S300 supply voltage
4 0 V DC S300 supply voltage
Thread FE Functional earth/shield
4
3
2 1
Figure 3: Dynamic input 1: Female connector, M12, 4-pin, B-coded
D
ynamic input 1: Female connector, M12, 4-pin, B-coded
PIN Designation Function
1 24 V DC Supply voltage for incremental encoder 1
2 GND
3 A1 / INC1_0 Static control input A or dynamic control input (input for
incr
emental encoder) 1
4 A2 / INC1_90
Thread FE Functional earth/shield
21
4
3
Figure 4: Dynamic input 2: Female connector, M12, 4-pin, A-coded
D
ynamic input 2: Female connector, M12, 4-pin, A-coded
PIN Designation Function
1 24 V DC Supply voltage for the incremental encoder 2
2 GND
3 B1 / INC2_0 Static control input B or dynamic control input (input for
incr
emental encoder) 2
4 B2 / INC2_90
Thread FE Functional earth/shield
MOUNTING INSTRUCTIONS
12
M O U N T I N G I N S T R U C T I O N S | S300 8025883/2020-08-31 | SICK
Subject to change without notice

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
