2.4 Setting the measuring range

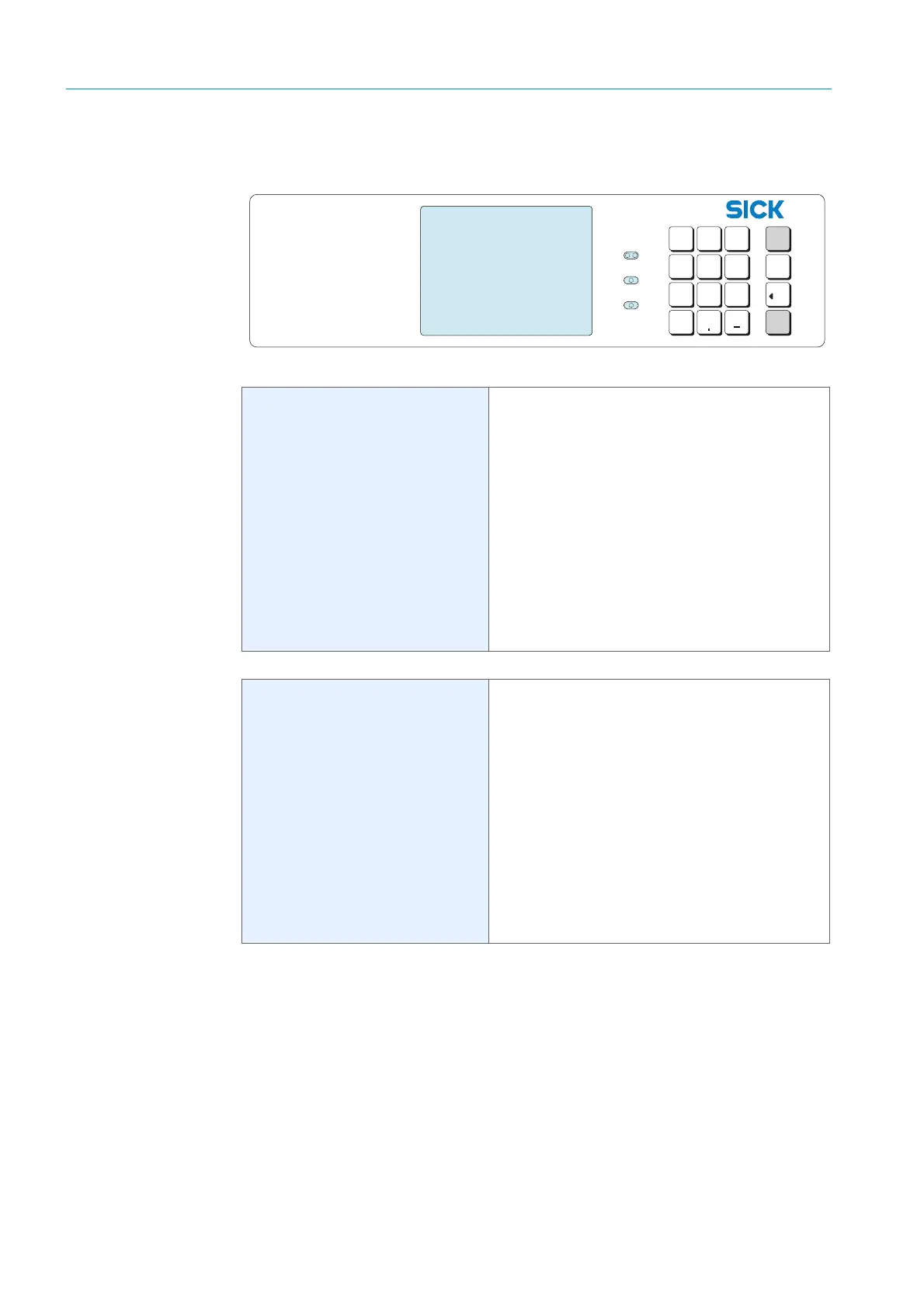

Fig. 4: Operating and display elements
1
Press “ESC” as often as required until you reach the main menu.
2 Press “.” (decimal point) to extend the menu selection.
3 Press key “6” to go to the “settings” menu.
4 A warning is displayed: Read the warning and confirm with “Enter”.
5 Press key “2” to go to the “measurement” menu.
ModularSystem
Function
Service
Alarm
789
456
123
0
Esc
Help
Enter
Main menu
1 measuring display
2 device status
3 control
4 calibration
5 maintenance signal
Enter digit
No messages
CO 12 mg/m3
← standard functions
←
←
←
←
← operation information
← status messages
← measured values (alternating)
Main menu
1 measuring display
2 device status
3 control
4 calibration
5 maintenance signal
6 settings
7 service
Enter digit
No messages
CO 12 mg/m3
← “settings”
