ETHERNET 1 - 4, FIELDBUS P1 - P2

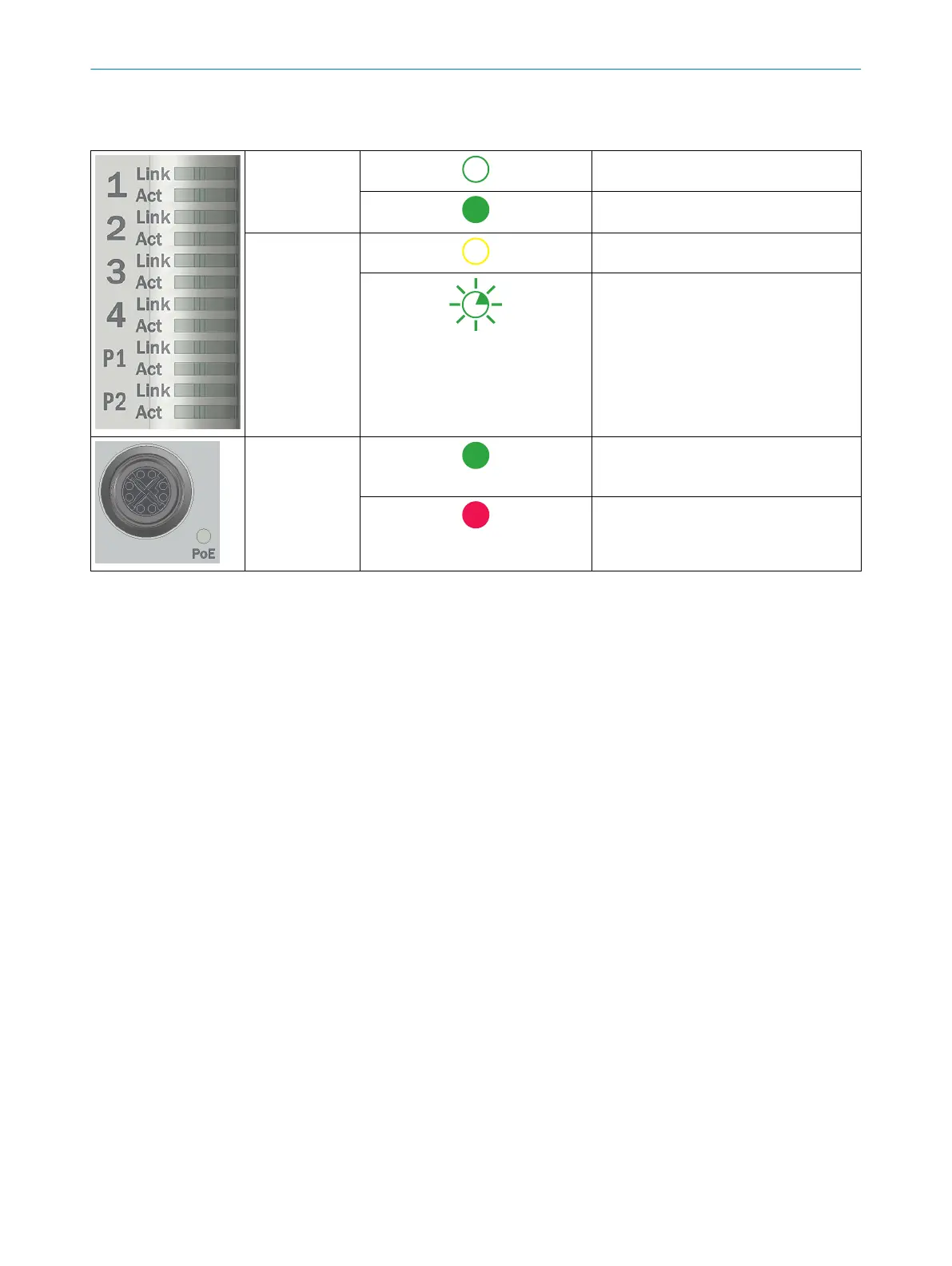

Table 19: ETHERNET and fieldbus status LEDs
Link Connection not established with Ethernet.
ETH1-ETH4 only. Connection established
with Ethernet.
Act No activity
Data transmission via Ethernet
PoE ETH1-ETH4:
Voltage supply via Ethernet.
ETH1-ETH4:
Fault in the supply line (overload, short-cir‐
cuit).
8 OPERATION
36
O P E R A T I N G I N S T R U C T I O N S | SIM2000 8023297//2021-06-22 | SICK
Subject to change without notice
