You must ensure that the machine cycle contacts meet the following criteria:
3 !
 
'
MCC-TDC  The contact is normally closed.
 Before reaching the top dead centre, the contact must have been
open for at least 100 ms.
 The contact must be closed again at the top dead centre.
MCC-BDC  The contact is normally open.
 At the end of the dangerous movement, the contact muss must be
closed.
 After the MCC-TDC has opened, the contact can be opened again.
 The contact must be opened again before the MCC-TDC is closed.
SCC  The contact is normally open.
 The contact must be closed when the machine is restarted.
 The contact must already be closed when the MCC-TDC closes.
 The contact may be opened shortly after the machine is restarted.

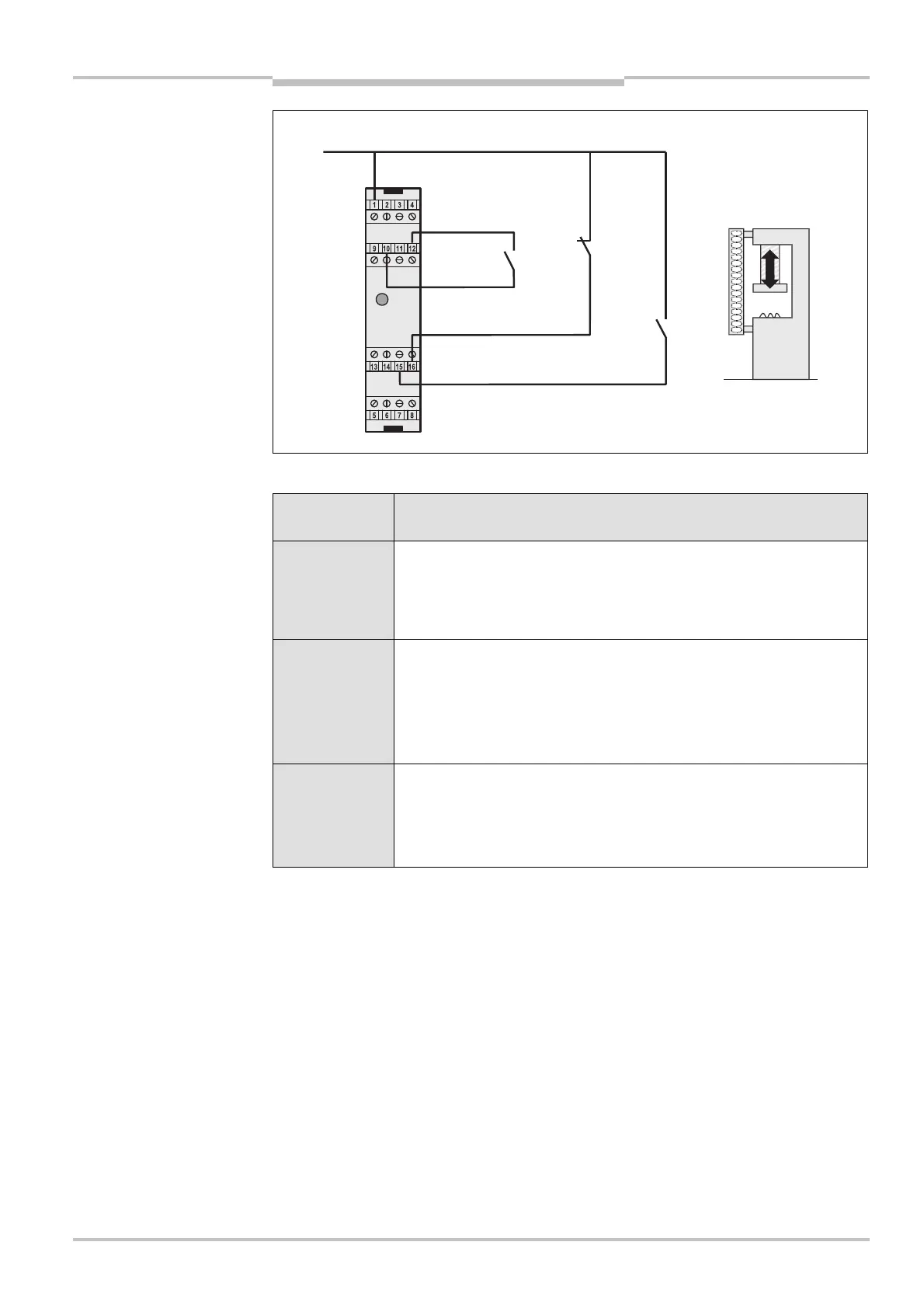

Fig.
12
:
Connecting the
machine cycle contact to
the UE 402
Tab.
7
:
Criteria for
connecting the machine cycle
contact
24 V DC
Run-on monitoring
(SCC)
Top dead centre (MCC-TDC)
Bottom dead centre (MCC-BDC)
