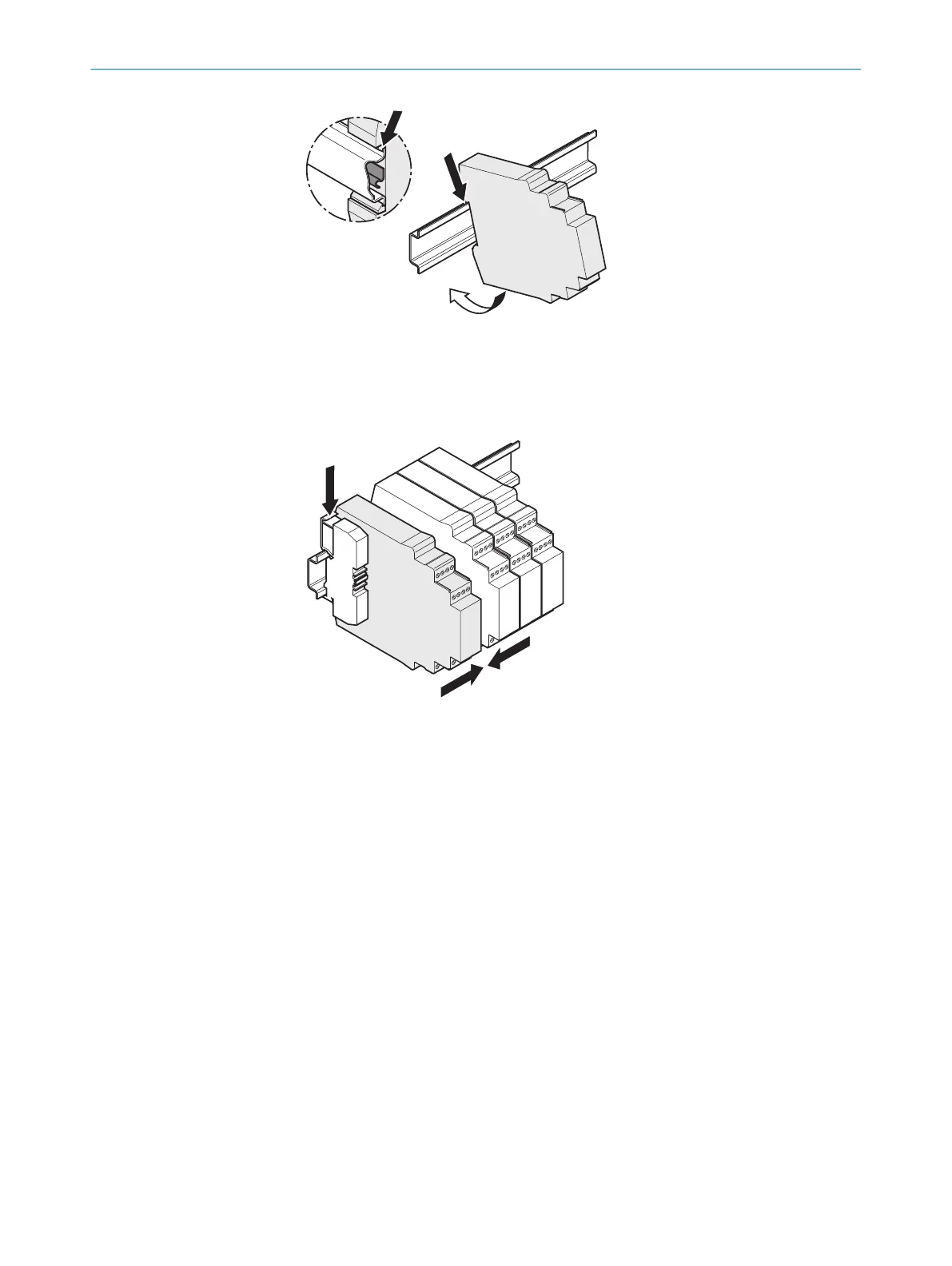

Figure 25: Mounting the module on the DIN mounting rail
4. Slide the modules together one by one (as indicated by the arrows) until the
side
-mounted plug connector engages.
5. Mount the end pieces on the left- and right-hand sides.
Figure 26: Attaching the end pieces
Complementary information
T
he modules are interconnected via a FLEXBUS+ plug connector, which is integrated
into the housing. Before removing a module from the mounting rail, slide the modules
approx. 10mm apart.
