NOTE
When locked, no commands such as teach-in/copy from other sensor heads are
accepted.

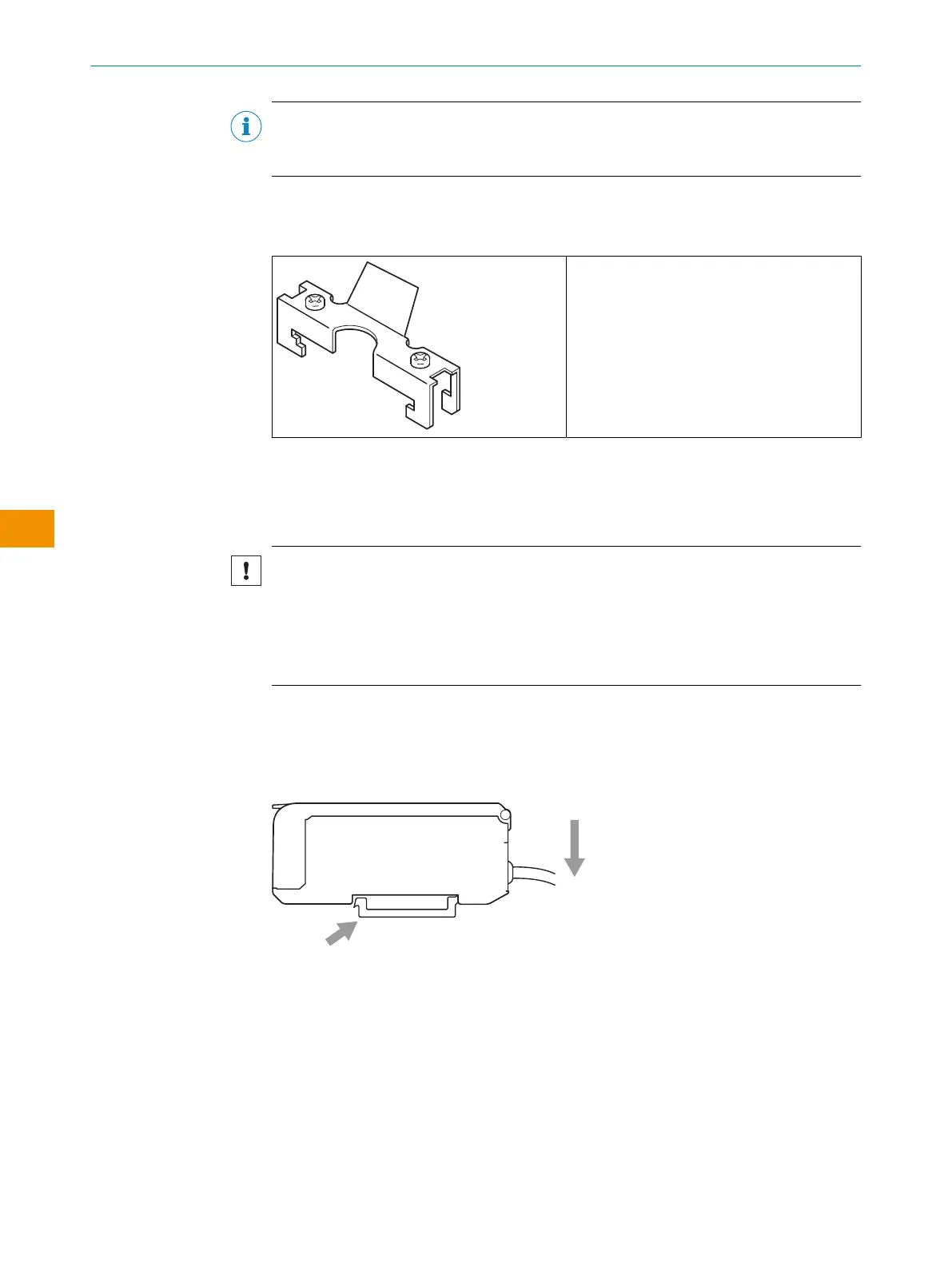

3.3 End piece
Table 2: End piece
BEF-BE01-W190 (2 parts)
4 Mounting
4.1 Mounting and removing the evaluation unit
NOTICE
Installation in the following environments may lead to malfunctions:
•
Dusty or steamy environment
•
Locations with corrosive gases
•
Locations with spraying water or oil
•
Locations with heavy movements of the subsurface
Mounting
Mounting on the mounting rail
1. Hook the sensor head into the mounting rail.
2. Press to lock.
1
2
Figure 2: Mounting
Removal
Removing from the mounting rail
1.
Press the evaluation unit in the 1 direction.
2. Remove the sensor head. Remove the unit.
