Sicor SH130 User Manual

AC MUM0114 rev. 04 - 16 -
SH130
9.2. ENCODER INSTALLATION INSTRUCTIONS
Before installing the encoder, you must:
- read the “Safety Requirements” chapter.
- disconnect the electrical power supply to the
winch.
If machines are ordered with the
encoder opon, they are supplied with
all the parts needed to perform this task. The
standard opon includes an encoder driving pin.
- Unscrew the M3 screws that fasten the Lika
C50 encoder plate.
- Remove the retaining plate and replace it
with the one supplied by Sicor.
- Remove two of the 4 M6 fastening screws on
the ange as shown in the diagram.
- Put the encoder in posion by sliding it coaxi-
ally unl the plate touches the thrust bearing
ange.
- Put the M6 screws back in place by inserng
them in the 7-diameter holes in the plate and
ghten them to a torque of 10 Nm.
- Tighten the specially supplied encoder fasten-
ing dowel.

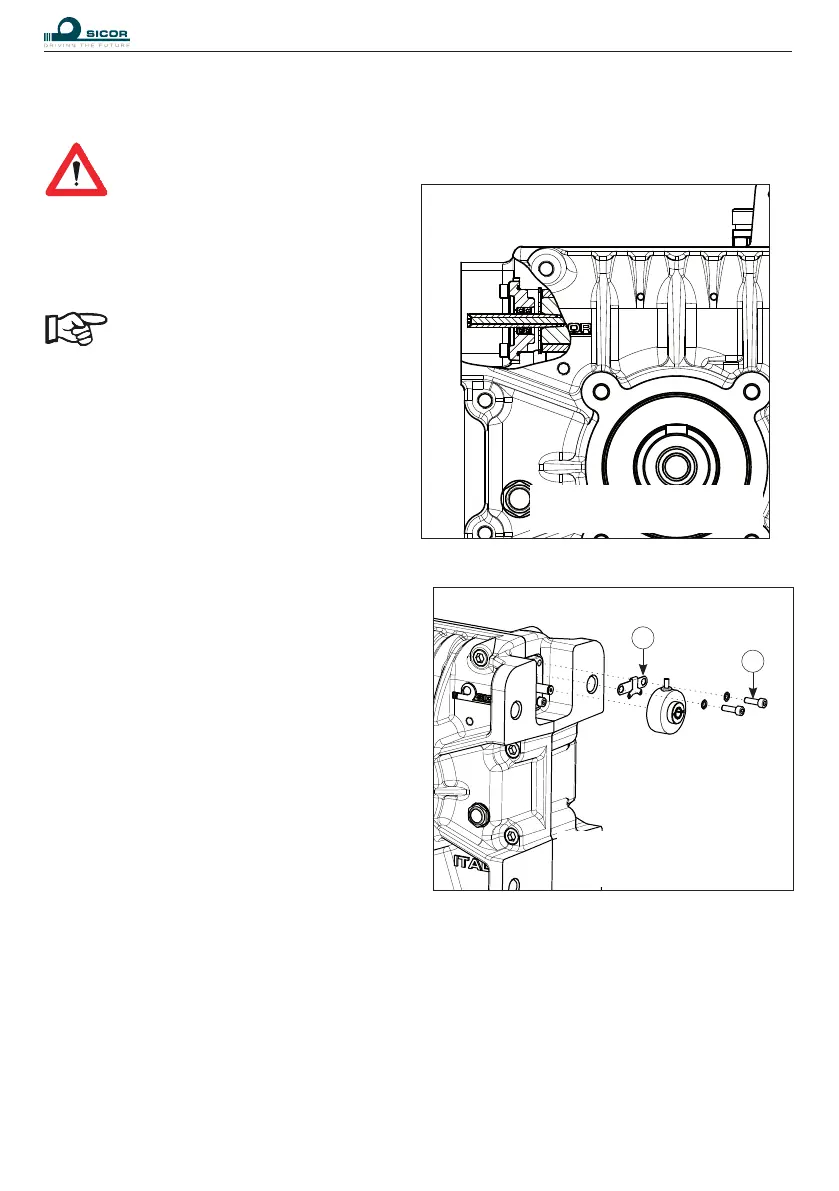

Detail of winch with encoder
opon
①Sicor retaining plate
②M6 screw
2
1
