Sicor SH130 User Manual

AC MUM0114 rev. 04 - 27 -
SH130

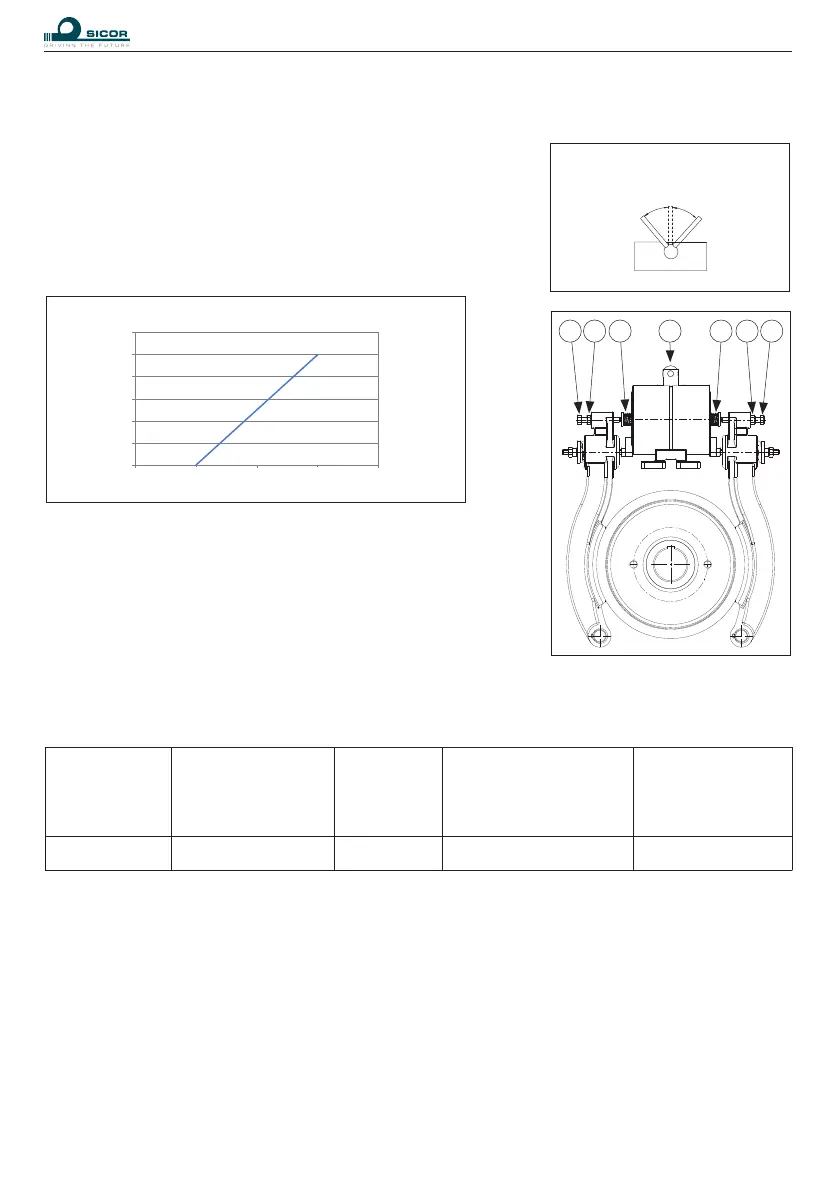

15.3. CHECKING THE STROKE
Make sure that the brake opening lever (6) is centrally posioned
(brake closed). Manually press the electromagnet pin (5) right
down and then measure the clearance between the adjusng
screw (1) and the electromagnet pin (5). If it is < 0.5 mm, the
stroke must be adjusted immediately.
Machine type
D
(Ø Brake drum)
[mm]
L
(minimum)
[mm]
Maximum braking
torque
[Nm]
Brake lining
fricon coecient
[Nm]
SH130 276 55 100 0,44
0
20
40
60
80
100
120
68 55
Braking torque
L [mm]
Torque [Nm]
— C nom.
BRAKE ON
(brake shoes closed)
POS 1
BRAKE OFF
(brake shoes
open)
POS 2
BRAKE OFF
(brake shoes
open)
POS 2
1 2 5 6 2 15
