Electrical installation
Electrical wiring
All kind of wiring and electrical xing must be done with Main switch/
miniature circuit breaker turned OFF and no battry cables attached.

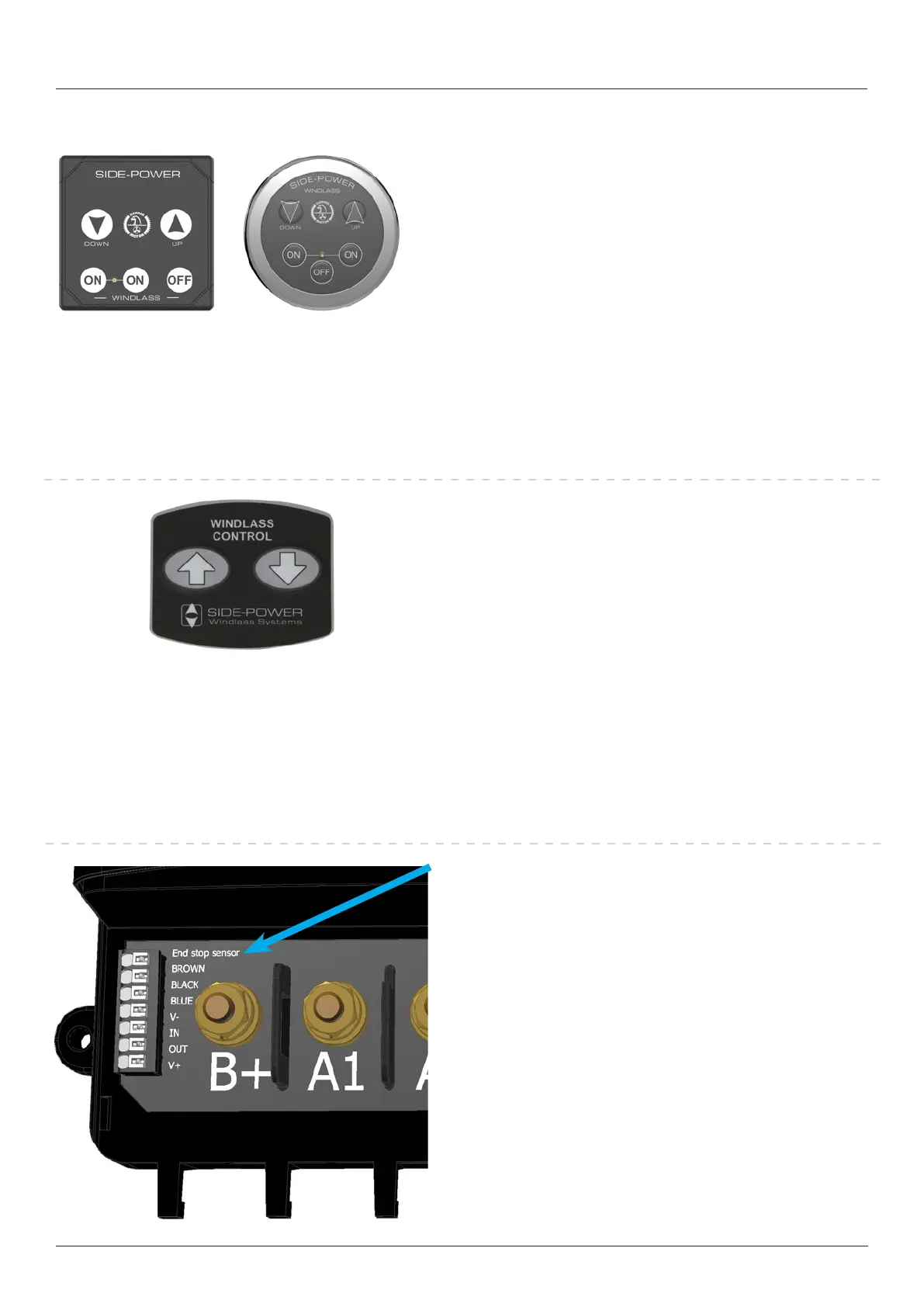

Connecting switch panel 86-08950 or 86-
08955
• 1 pcs switch panel
• Cables are optinal and come in various lengths.
• Cable is a 4-way Side-Power cable that easy can be attached to
contact on controlbox unit.
• The cable must be attached to 150810 contact unit
• 150810 connection to control unit:
Black to terminal V-
Blue to terminal IN
Grey to terminal OUT
Red to terminal V+
• See wiring diagram or control panel manuals for more details
• Multiple panels can be xed to the same control unit.
Switch panel 86-00002
1. The panel comes with a self-adhesive surface, but if you prefer,
you can use the corner holes to screw it rmly in position.
2. Drill an hole (dia. 18 mm) in the place where the panel is to be
tted.
3. Run the panel cable through the hole.
4. Remove the protection tape from the rear surface of the panel
and x the panel rmly to the surface.
5. Run the cable to the electronic control box.
6. Cut off any surplus cable and strip the ends of the three wires
that are to be connected to the terminal clips as described in the
connection diagram. (See wiring diagram).
Connecting switch panel 86-00002
• The 3-way cable is connected like this:
• White to terminal IN
• Green to terminal OUT
• Brown to terminal V+
• See wiring diagram for details
Connecting the auto stop switch
Cables are connected like this:
4: Brown (BN)
5: Black (BK)
6: Blue (BU)
