8
Midi 201 2904-6 - 2019
Installation
Mounting
• The mounting bracket for MIDI 201 allows for innitely vari-
able rotation in relation to the windlass gear/motor.
• The bracket for the rope guide/deector can also be
rotated independently of the gear/motor and mounting
bracket.
• This allows for installing the windlass on surfaces with dif-
ferent angles in relation to the stern. It can be tted on the
inside of the stern, hanging below the deck or aft of cross
bulkheads inside the boat.

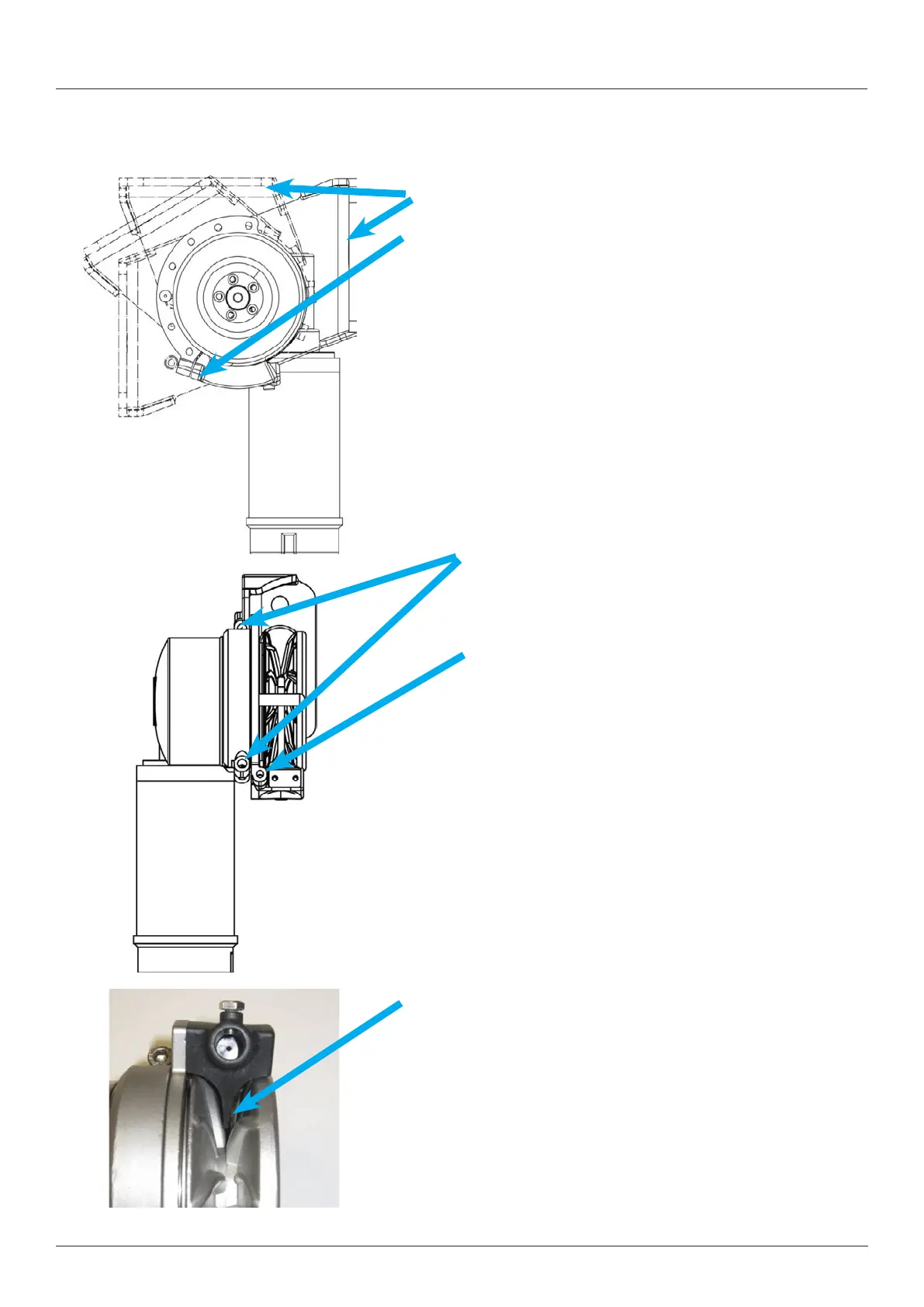

• Position the windlass mounting bracket by loosening the
two screws fastening the bracket to the gear housing,
rotate the windlass to the correct position and tighten the
screws.
Note! Max. tightening torque 17 Nm.
• Adjust the windlass rope guide bracket in a correspond-
ing manner by loosening the screw fastening it to the gear
house. Rotate the bracket so the rope is guided down and
away from bulkheads and components that prevent the
rope from coiling correctly below the windlass.
Note! Max. tightening torque 17 Nm.
NOTE! It is important that the rope is wound sufciently around
the line wheel to ensure a good grip on the rope.
See separate section.
NOTE! The ”line guide” must be located in centre of the line
wheel. Also check this after having tightened the xing screw.
