Side-Power MIDI201 - Windlass Rope Installation; Inserting Rope into Windlass

9
Midi 201 2904-6 - 2019

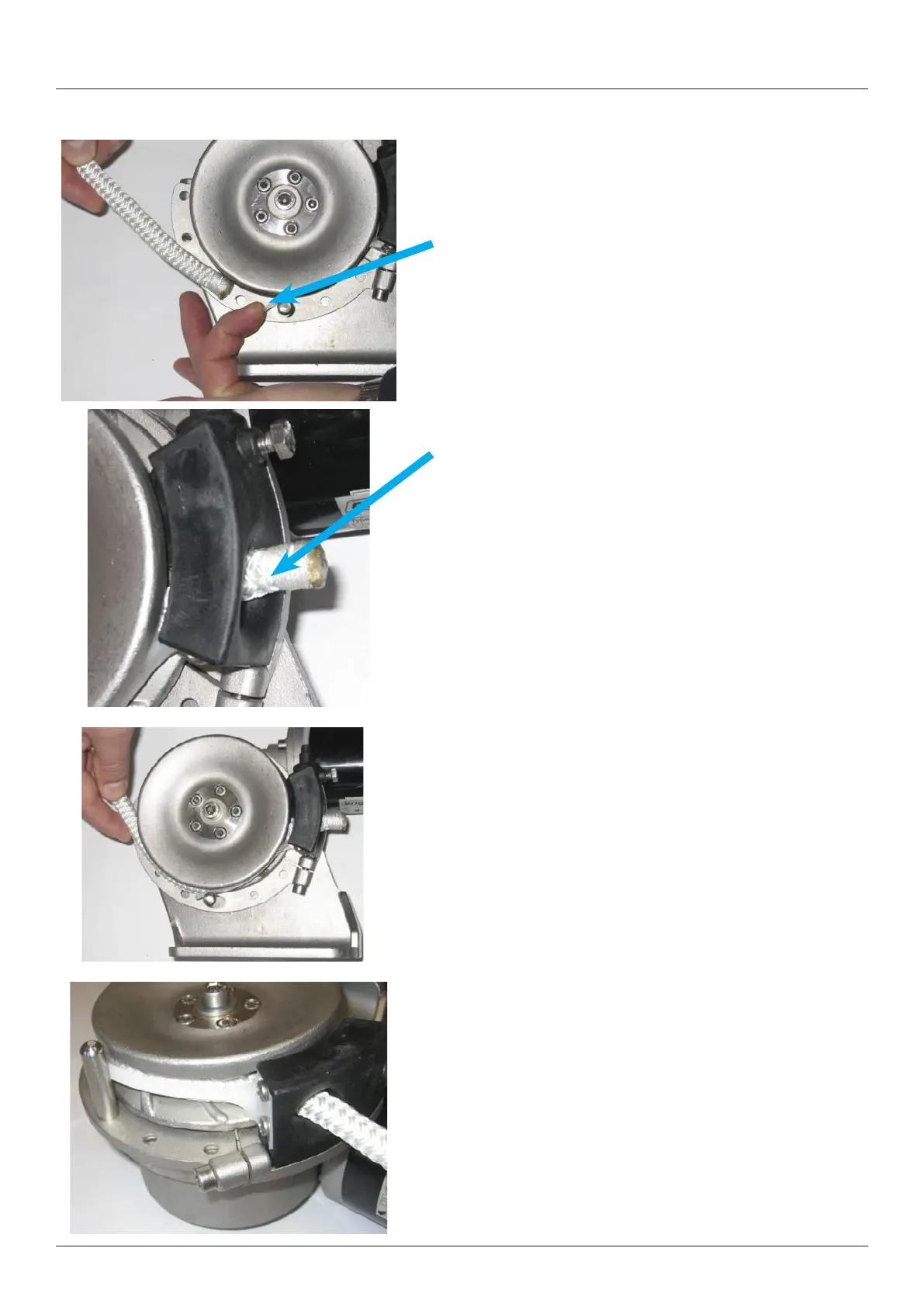

Insert the rope into the windlass
line wheel
Insert the rope into the line wheel between the line wheel and
the rope guide. It may be easier if you bend the tip of the rope
guide carefully.
Route the rope via the line wheel and out through the hole in
the rope deector.
When the windlass is connected, the rope can be pulled by
pressing down on the up button on the touch panel or remote
control.
Note! Be careful to avoid injuring ngers.
When the tip of the rope has been pulled through the rope
deector, the rest of the rope can be pulled through using the
windlass.
Make sure the windlass reels as intended.
Remember!
When pulling in the rope for the rst time,
you must keep the rope tight, so the rope
run correctly.
