50

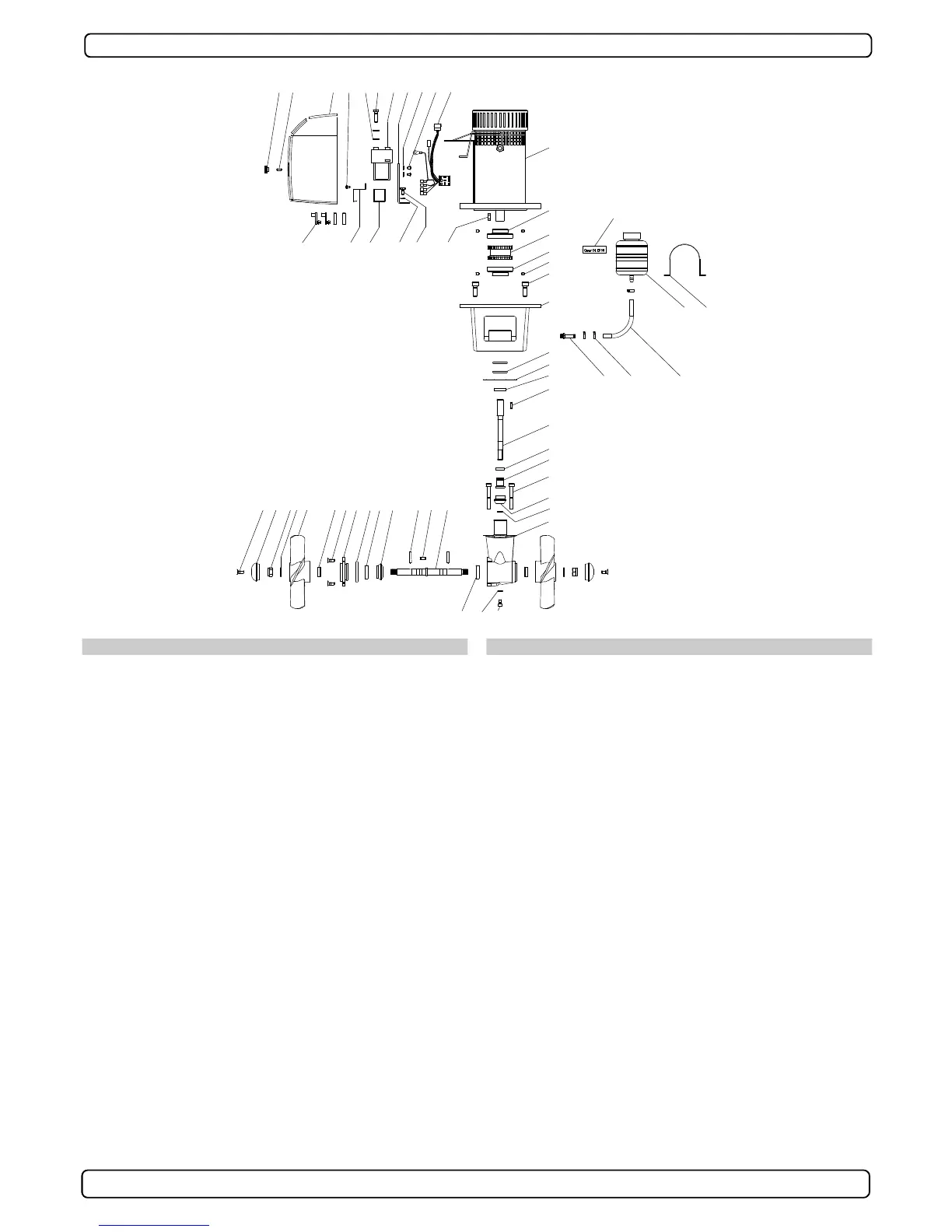

SP 75 T / SP 95 T / SP 125 T 2.0 - 2002
1 2 3
4
5
6
7 8 91011 12
1413
15 16 17
18
19
20
21
22
23
24
25
26
27
28
29
30 31
32 33
35
36
37
38
39
40
41
424344454647 48505152
53
49
54 55 5756 58
34
SP 75 T
#: Pcs.: Part #: Description:
1 7-8000 Service gearhouse w/props
8 1000 Zinc anode kit
2 2 Zinc anode
1 2 Screw (M6x16 DIN7991 A4)
7 1001 Screw kit
7 2 Screw (M6x16 DIN7991 A4)
21 2 Screw (M8x55 DIN912 A2)
35 4 Screw (M10x25 DIN912 A2)
57 2 Bolt (M6x12 DIN933 A2)
43 4 Screw (M5x8 DIN7985 A2)
56 2 Spring Washer (DIN128 -A6)
44 4 Spring Washer (DIN6798 - A5,3)
7 1002 Bearing kit
10 2 Ball bearing
23 1 Ball bearing
7 1003 Gear kit
11 1 Crown wheel
20 1 Pinion drive
24 1 Drive shaft
19 1 Retaining ring
22 1 Slide bearing
7 1004 Key kit
12 2 Drive pin
25 1 Key (5x5x16)
58 1 Key (6x6x16)
13 3 Key (5x5x14)
7 1005 Oil plug kit
16 1 Gasket
17 1 Oil plug (M6x8 DIN912 A4)
7 1006 Sealing ring kit
9 1 O-ring (Ø40.2x3 72NBR)
27 1 Gasket 1mm
27 1 Gasket 2mm
26 1 Sealing ring
6 2 Sealing ring
28 2 O-ring (Ø32x2.4 72NBR)
10 1007 Oil container kit
31 1 Oil hose
30 2 Hose clamp
33 1 Fastening bracket
29 1 Hose socket
32 1 Oil container
#: Pcs.: Part #: Description:
7 1008 Flexible coupling, complete
37 4 Set screw (M6x8 DIN916)
38 1 Flexible coupling flange Ø16
39 1 7 1451 Rubber element
40 1 Flexible coupling flange Ø20
7 1009 Motor bracket, complete
34 1 Motor bracket
35 4 Screw
28 2 O-ring
29 1 Hose socket
6 1010 Motor 4.2kW 12V, complete
41 1 Motor 4.2kW 12V
58 1 Key
6 1011 Relay kit 12V
46 1 Relay 12V
42 1 6 1226 Solenoid loom
45 1 Relay bracket
44 4 Spring Washer
43 4 Screw
57 2 Bolt
56 2 Spring Washer
6 1012 Motor 4.2kW 24V, complete
41 1 Motor 4.2kW 24V
58 1 Key
6 1013 Relay kit 24V
46 1 Relay 24V
42 1 6 1226 Solenoid loom
45 1 Relay bracket
44 4 Spring Washer
43 4 Screw
57 2 Bolt
56 2 Spring Washer
6 1014 Relay cover, complete
50 1 Cover
51 2 Set screw
52 2 Nut
7 1013 Gear house with flange
18 1 Gear house
8 1 Flange
5 1 7 1260 Propeller
14 1 7 1196 Propeller shaft
