Using a
5
/
16
” or 8 mm drill bit, drill pilot holes through the hull at the center of each
hole (4 backing plate holes; 2 cable feed-through holes).
Using a 3/8” or 10 mm drill bit, enlarge each pilot hole.
STEP 5: ASSEMBLE STERN THRUSTER MOUNTING ASSEMB LY
If extension posts and/or angle brackets are required, bolt them together
with stainless steel nuts and bolts.
NOTE: Be sure to use anti-seize compound (supplied with kit) on all nuts so
that assembly and future disassembly is easier.
STEP 6: ATTACH THRUSTER BASE

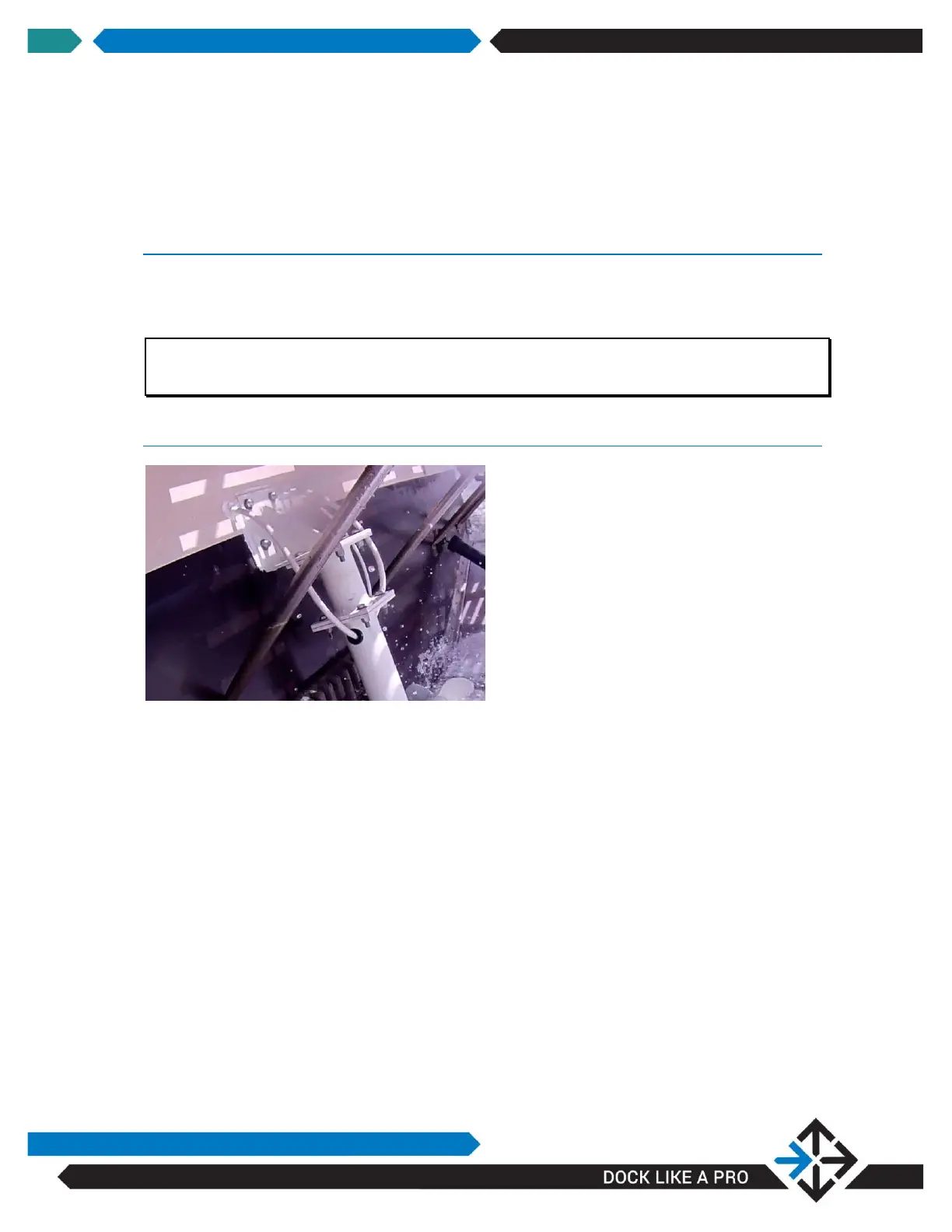

Transom mount
Apply Sikaflex or equivalent sealant in each hole and in an area between the bolt
holes on the mounting flange.
Apply Sikaflex or equivalent sealant to the inside of the hull where the backing plate
will sit.
Pass mounting bolts through backing plate from the inside of the hull.
Align thruster mounting flange with bolts. Pass each bolt through corresponding
flange hole.
Tighten nuts by wrench onto each bolt.
