11. Press the space bar of the PC keyboard to start calibration. After calibration you
are prompted to load a program.

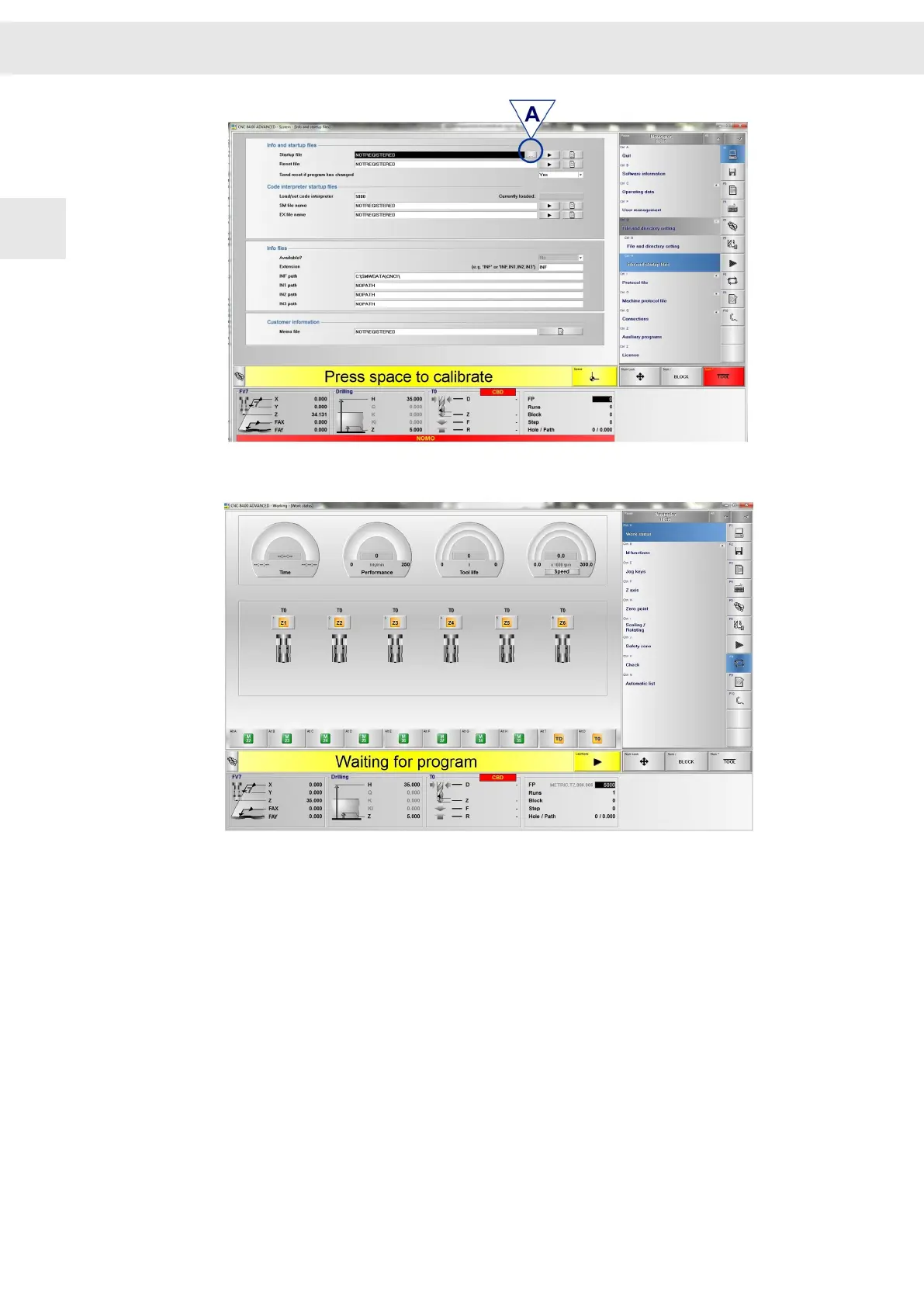

Fig. 10: Calibration finished. Load production program.
12. Load the provided part program "SIEB&MEYER-Format.SM5" into the operating
software. Press <F2> on the PC keyboard or click on the button with the floppy
disk symbol [A]. The file browser of the operating software opens.
Installation and Setup
W
14 CNC 8x.00 - Demo Kit
