Note: The software block for SIMATIC S5, S7 described above is included in the scope of supply
of Win3WN6.
• The new "SICAM LCC"
16
software makes system visualization possible for low-voltage
circuit-breakers 3VF, 3WN6, 3WN1, 3WS1 and the SIMOCODE-DP motor protection and
control device. It complements the Win3WN6 software, as it puts the system in the foreground.
SICAM LCC permits the user to create a standard visualization interface on which he can view
all the important information about the system devices on PROFIBUS-DP The software makes
this procedure simple, fast and economical for the user. Customer-specific expansions of this
standard visualization can be implemented at any time using WinCC standard software.
SICAM LCC is used for small to medium-sized systems.
Software features:
• Capable of running under Windows 95 or Windows NT 4.0
• Configurations: SIMATIC S5, S7 or PROFIBUS-DP compatible PC as master
• Simply structured system overview (see diagram)
• Detailed device displays with most important information
• Calls for other device software (Win3WN6, Win-SIMOCODE)
• Setting of device parameters (via Win3WN6, Win-SIMOCODE)
• Measured value processing (Display of minimum, maximum, average etc.)
• Event lists
• Alarm lists
• Printing, logging

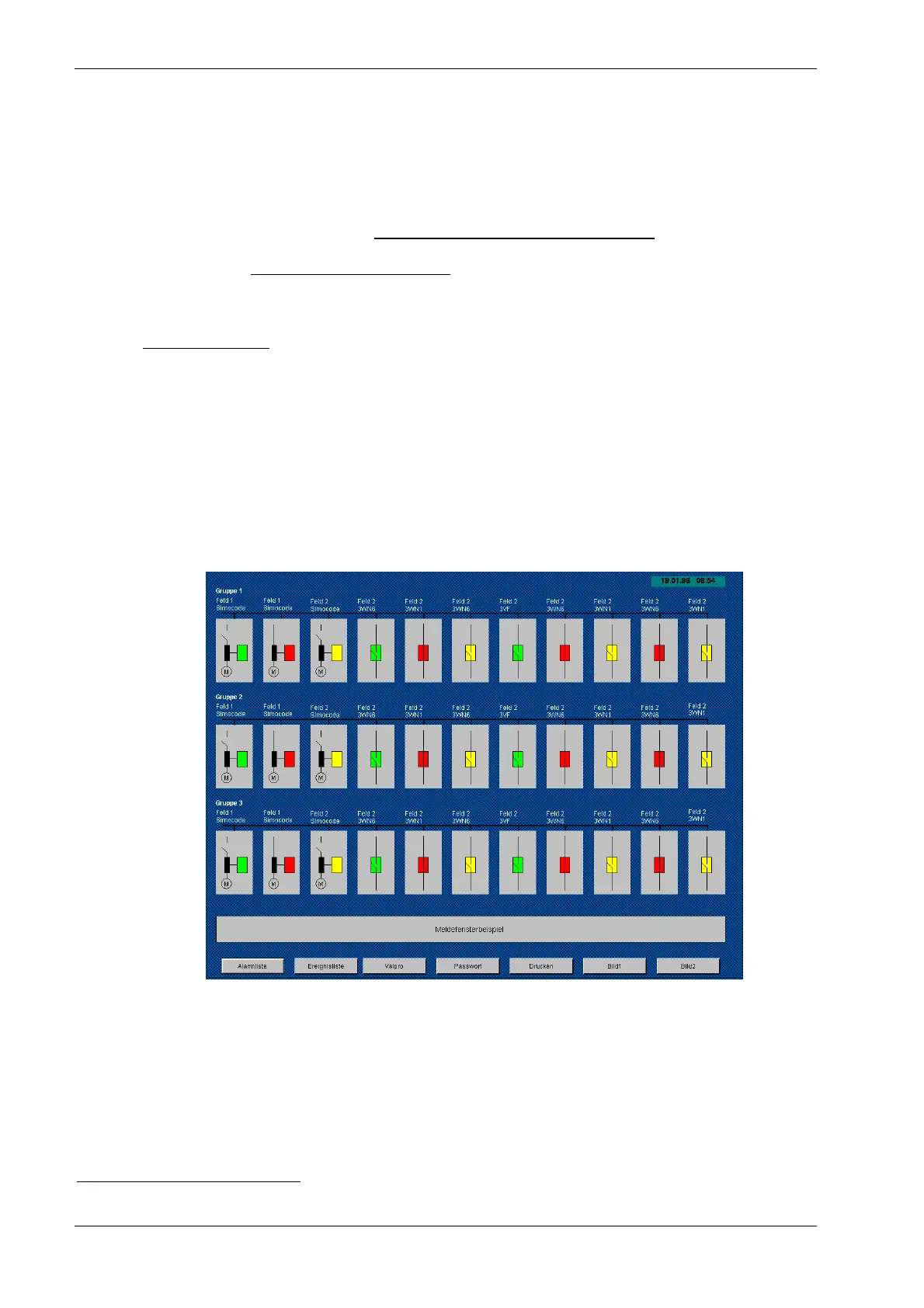

Example of SICAM LCC screenshot
Once you have completed Step 8, the 3WN6 circuit-breaker is connected to the PROFIBUS-DP
communication system. No further steps are generally required.
16
Shipping of SICAM LCC starts in 10/98.
